| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T07_9000002780_18620cztM0_level2.evt | modeM0/AS1A05_104T07_9000002780_18620cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,161,920 | 108,210,240 |
| Size | 539.9 MB | 103.2 MB |
| Events in quadrant A | 4,165,300 | 680,184 |
| Events in quadrant B | 3,744,221 | 705,618 |
| Events in quadrant C | 3,681,802 | 687,848 |
| Events in quadrant D | 5,024,679 | 660,131 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17576 | 3 |
| B | 0 | 16360 | 3 |
| C | 0 | 16204 | 3 |
| D | 0 | 20227 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7811 | 291 | 3.725515% |
| B | 7811 | 217 | 2.778133% |
| C | 7811 | 179 | 2.291640% |
| D | 7810 | 358 | 4.583867% |

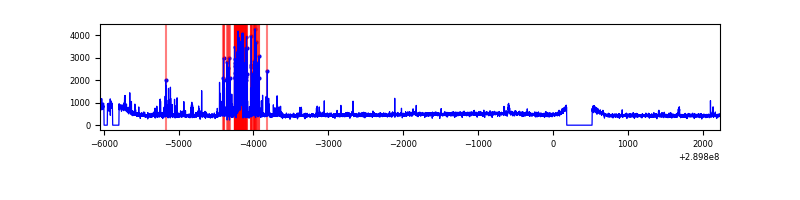

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8281 | 7814 | 107 | 107 | 1.29% | 1.37% |  |
| B | 8281 | 7814 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8281 | 7814 | 2 | 2 | 0.02% | 0.03% |  |

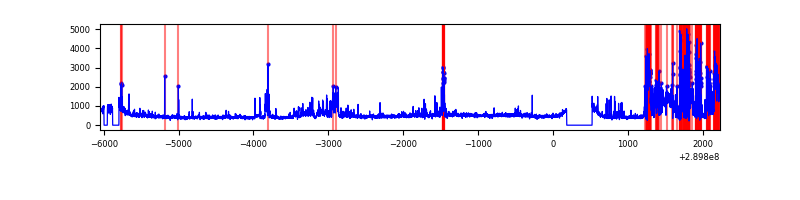

| D | 8280 | 7813 | 227 | 227 | 2.74% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 581343 | 3110.87 | 923 | 902 | 186.6 |
| A | 9 | 143 | 17217 | 87.44 | 923 | 902 | 186.6 |
| A | 0 | 13 | 13816 | 69.21 | 923 | 902 | 186.6 |
| B | 4 | 80 | 49626 | 270.4 | 930 | 905 | 180.2 |
| B | 0 | 230 | 40125 | 217.67 | 930 | 905 | 180.2 |
| B | 12 | 111 | 22583 | 120.31 | 930 | 905 | 180.2 |
| C | 14 | 238 | 138818 | 653.09 | 899 | 904 | 211.2 |
| C | 3 | 233 | 20996 | 95.14 | 899 | 904 | 211.2 |
| C | 9 | 54 | 18829 | 84.88 | 899 | 904 | 211.2 |
| D | 1 | 52 | 1341967 | 6130.03 | 896 | 871 | 218.8 |
| D | 7 | 238 | 245622 | 1118.74 | 896 | 871 | 218.8 |
| D | 2 | 234 | 33069 | 147.17 | 896 | 871 | 218.8 |

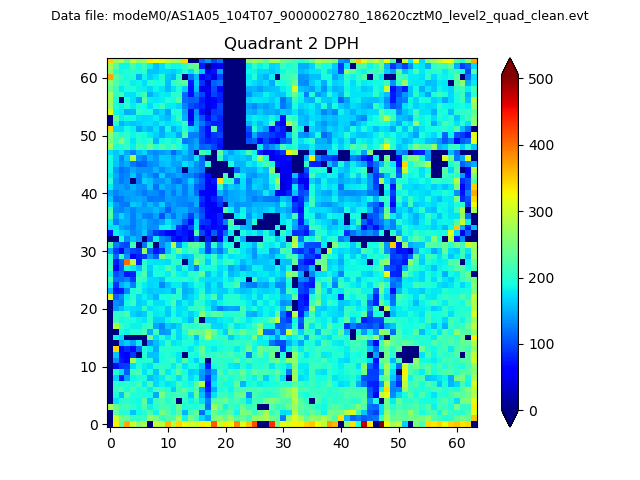

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

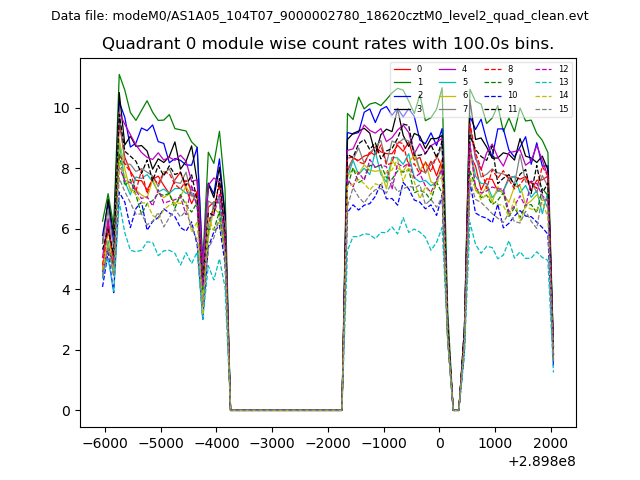

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

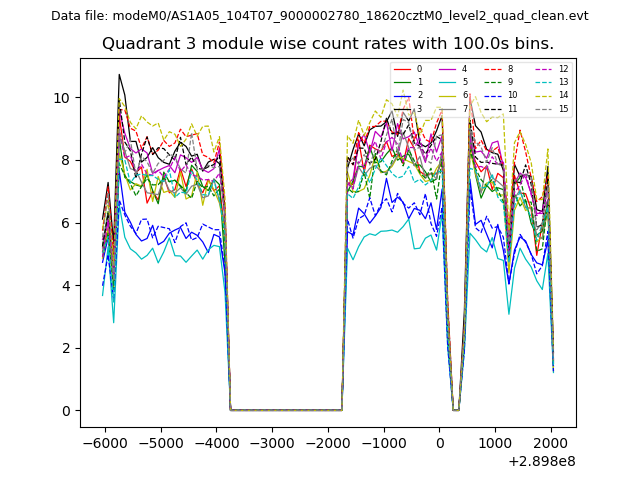

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

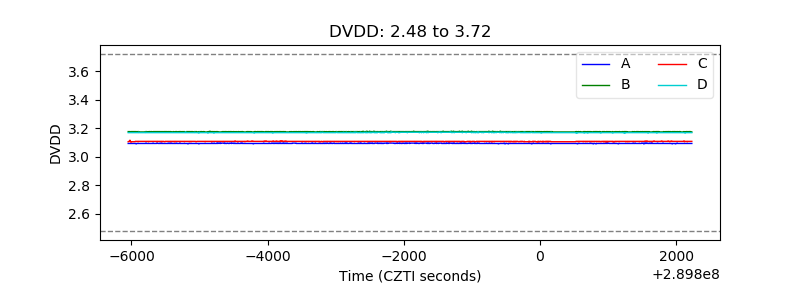

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

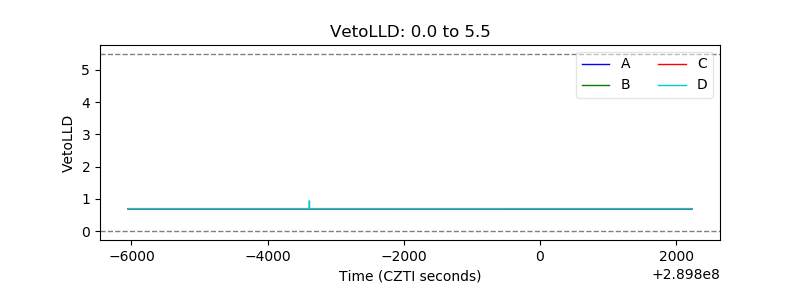

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

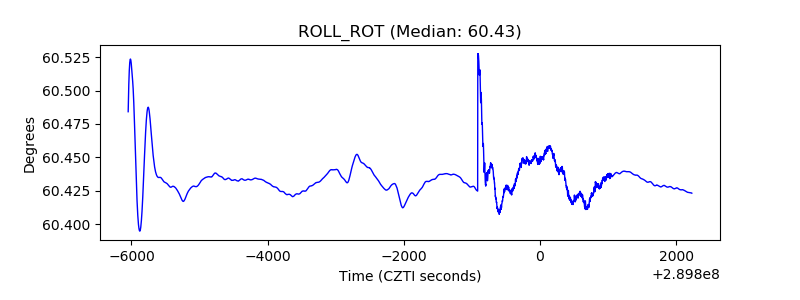

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
