| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T07_9000002780_18623cztM0_level2.evt | modeM0/AS1A05_104T07_9000002780_18623cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,700,800 | 68,276,160 |
| Size | 518.5 MB | 65.1 MB |
| Events in quadrant A | 4,535,667 | 399,004 |
| Events in quadrant B | 3,479,869 | 416,985 |
| Events in quadrant C | 3,239,287 | 404,056 |
| Events in quadrant D | 4,755,083 | 378,182 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17722 | 1 |
| B | 0 | 14482 | 1 |
| C | 0 | 13761 | 1 |
| D | 0 | 18557 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6729 | 341 | 5.067618% |
| B | 6729 | 68 | 1.010551% |
| C | 6729 | 77 | 1.144301% |
| D | 6729 | 306 | 4.547481% |

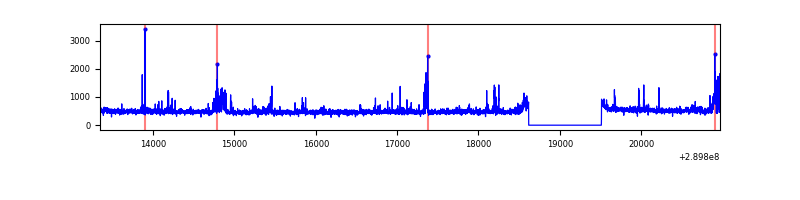

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7624 | 6729 | 177 | 177 | 2.32% | 2.63% |  |
| B | 7624 | 6729 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7624 | 6729 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7624 | 6729 | 233 | 233 | 3.06% | 3.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 920777 | 5619.07 | 809 | 792 | 163.7 |
| A | 0 | 13 | 443376 | 2703.21 | 809 | 792 | 163.7 |
| A | 9 | 143 | 51803 | 311.56 | 809 | 792 | 163.7 |
| B | 4 | 80 | 130107 | 830.48 | 816 | 796 | 155.7 |
| B | 0 | 230 | 114881 | 732.69 | 816 | 796 | 155.7 |
| B | 12 | 111 | 19619 | 120.89 | 816 | 796 | 155.7 |
| C | 14 | 238 | 122391 | 660.36 | 784 | 786 | 184.1 |
| C | 9 | 221 | 35621 | 189.17 | 784 | 786 | 184.1 |
| C | 9 | 54 | 13265 | 67.77 | 784 | 786 | 184.1 |
| D | 1 | 52 | 1583906 | 8348.07 | 780 | 757 | 189.6 |
| D | 7 | 238 | 193895 | 1018.43 | 780 | 757 | 189.6 |
| D | 2 | 234 | 24498 | 125.19 | 780 | 757 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

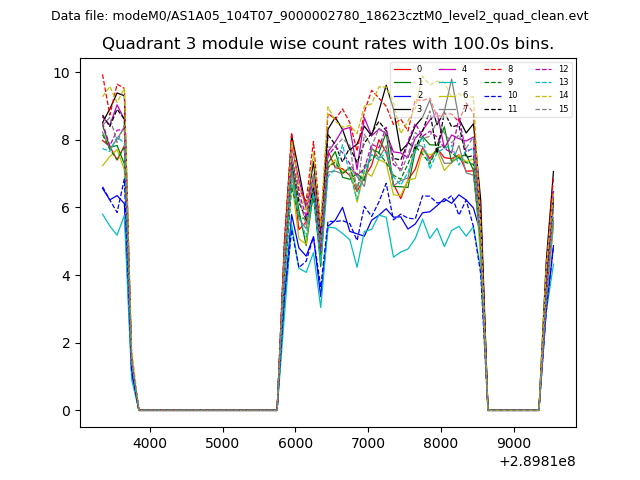

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

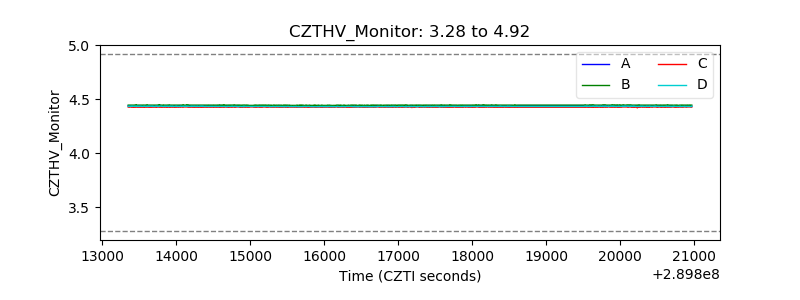

| CZT HV Monitor |  |
| D_VDD |  |

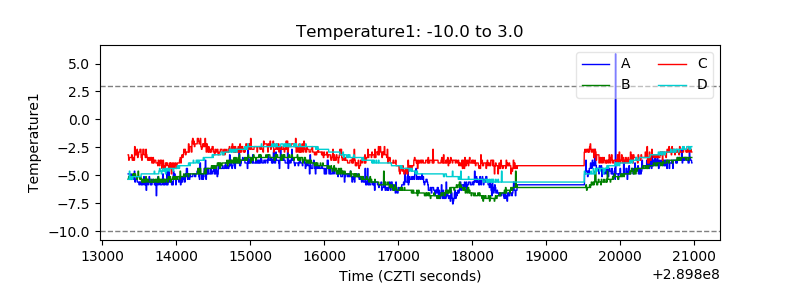

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

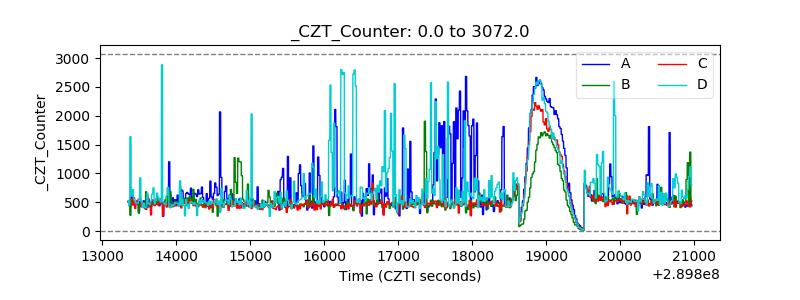

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

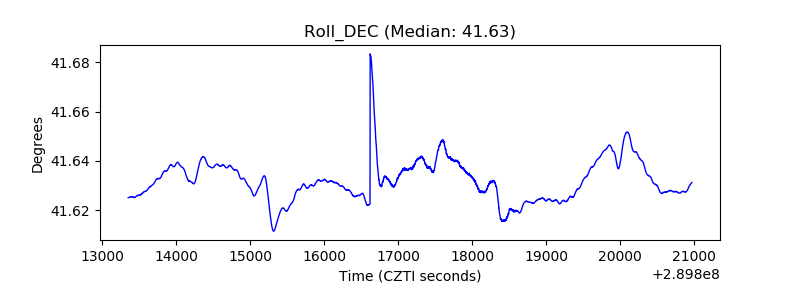

| _Roll_DEC |  |

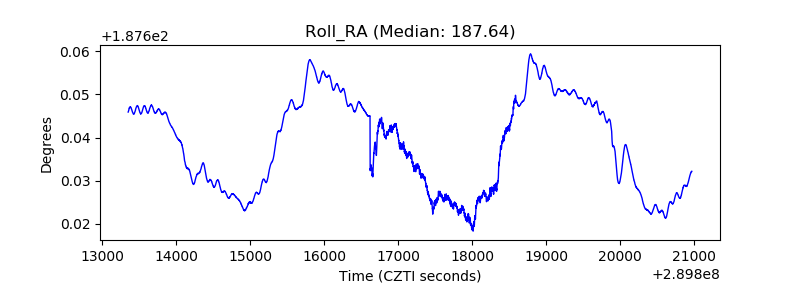

| _Roll_RA |  |

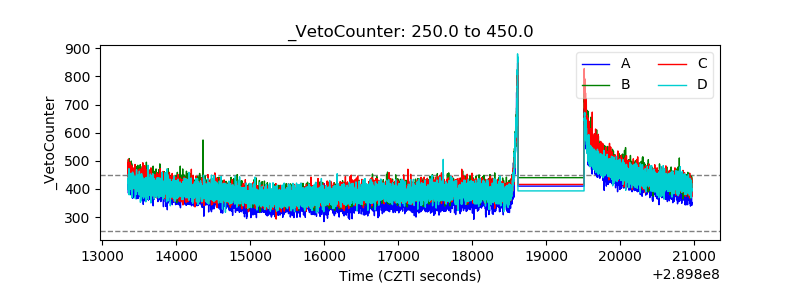

| Veto Counter |  |
