| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_118T04_9000002782_18624cztM0_level2.evt | modeM0/AS1A05_118T04_9000002782_18624cztM0_level2_quad_clean.evt |
| Size (bytes) | 193,556,160 | 23,817,600 |
| Size | 184.6 MB | 22.7 MB |
| Events in quadrant A | 1,575,230 | 134,791 |
| Events in quadrant B | 1,384,494 | 140,226 |
| Events in quadrant C | 1,289,170 | 138,274 |
| Events in quadrant D | 1,448,955 | 135,595 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6275 | 1 |
| B | 0 | 5626 | 1 |
| C | 0 | 5285 | 1 |
| D | 0 | 5902 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2384 | 124 | 5.201342% |
| B | 2384 | 53 | 2.223154% |
| C | 2384 | 55 | 2.307047% |
| D | 2384 | 45 | 1.887584% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3429 | 2384 | 47 | 47 | 1.37% | 1.97% |  |
| B | 3429 | 2385 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3429 | 2384 | 1 | 1 | 0.03% | 0.04% |  |
| D | 3429 | 2384 | 5 | 5 | 0.15% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 216507 | 3293.26 | 321 | 315 | 65.6 |
| A | 14 | 111 | 111397 | 1692.11 | 321 | 315 | 65.6 |
| A | 6 | 16 | 6602 | 95.77 | 321 | 315 | 65.6 |
| B | 0 | 230 | 121037 | 1888.66 | 322 | 315 | 63.9 |
| B | 12 | 111 | 7559 | 113.33 | 322 | 315 | 63.9 |
| B | 11 | 111 | 6693 | 99.78 | 322 | 315 | 63.9 |
| C | 14 | 238 | 48125 | 645.24 | 309 | 313 | 74.1 |
| C | 3 | 233 | 20660 | 274.59 | 309 | 313 | 74.1 |
| C | 9 | 221 | 8655 | 112.58 | 309 | 313 | 74.1 |
| D | 1 | 52 | 181862 | 2371.07 | 312 | 303 | 76.6 |
| D | 14 | 34 | 41582 | 539.08 | 312 | 303 | 76.6 |
| D | 7 | 238 | 36485 | 472.52 | 312 | 303 | 76.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

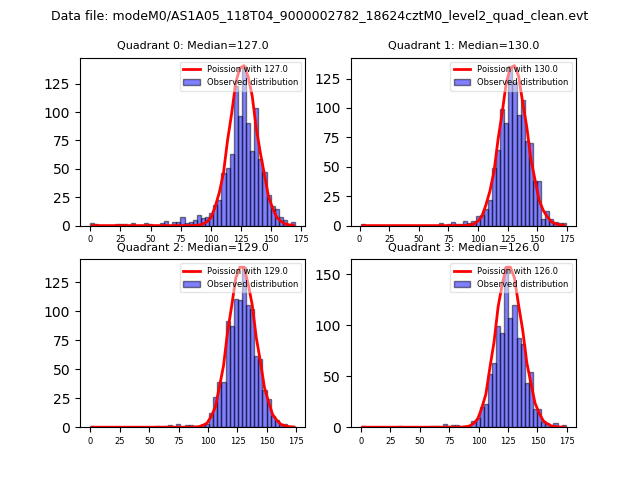

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

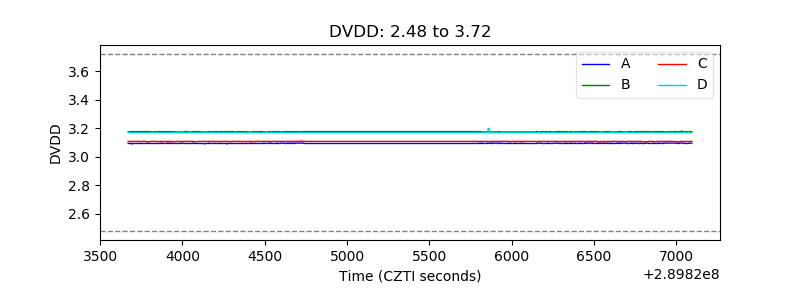

| D_VDD |  |

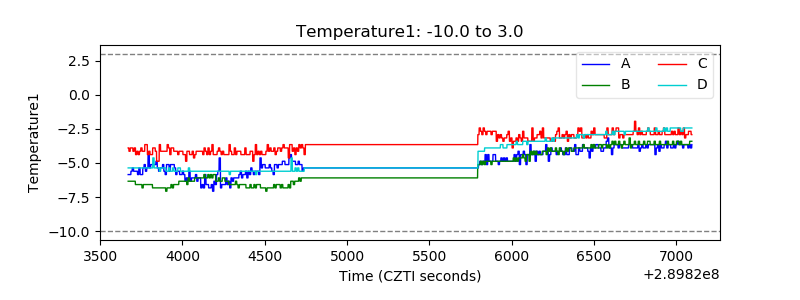

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

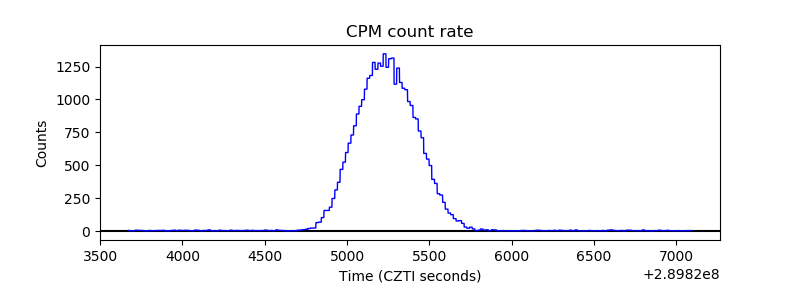

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

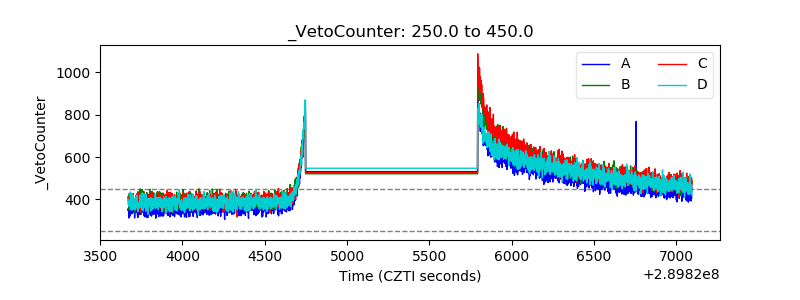

| Veto Counter |  |
