| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_118T04_9000002782_18627cztM0_level2.evt | modeM0/AS1A05_118T04_9000002782_18627cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,536,960 | 86,751,360 |
| Size | 444.9 MB | 82.7 MB |
| Events in quadrant A | 3,367,702 | 552,688 |
| Events in quadrant B | 3,332,158 | 563,720 |
| Events in quadrant C | 3,389,886 | 546,970 |
| Events in quadrant D | 3,622,054 | 534,519 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14162 | 2 |
| B | 0 | 13914 | 2 |
| C | 0 | 14081 | 3 |
| D | 0 | 14820 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6145 | 90 | 1.464605% |
| B | 6145 | 90 | 1.464605% |
| C | 6144 | 128 | 2.083333% |
| D | 6144 | 100 | 1.627604% |

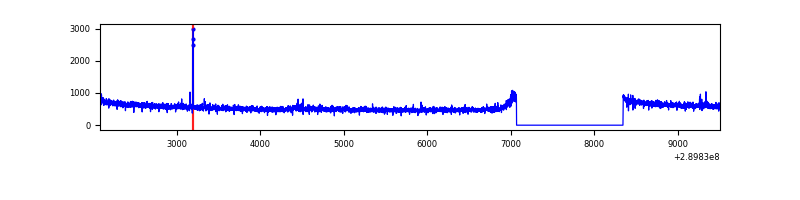

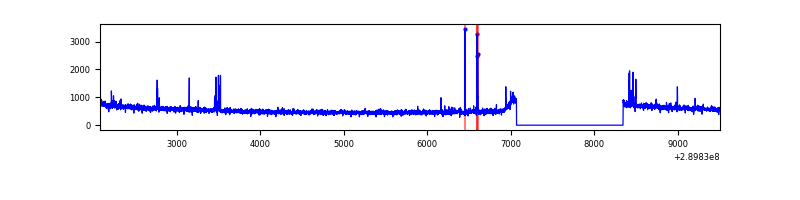

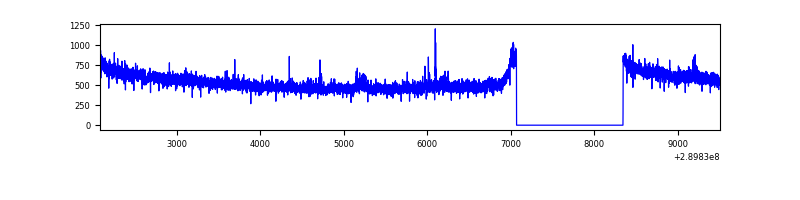

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7420 | 6145 | 4 | 4 | 0.05% | 0.07% |  |
| B | 7420 | 6145 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7419 | 6144 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7419 | 6144 | 32 | 32 | 0.43% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 50334 | 291.19 | 851 | 834 | 170.0 |
| A | 6 | 16 | 23593 | 133.88 | 851 | 834 | 170.0 |
| A | 3 | 1 | 12611 | 69.28 | 851 | 834 | 170.0 |
| B | 0 | 229 | 26565 | 164.36 | 844 | 823 | 156.6 |
| B | 12 | 111 | 18725 | 114.3 | 844 | 823 | 156.6 |
| B | 11 | 111 | 16606 | 100.77 | 844 | 823 | 156.6 |
| C | 14 | 238 | 130150 | 683.52 | 824 | 832 | 189.2 |
| C | 3 | 233 | 27315 | 139.98 | 824 | 832 | 189.2 |
| C | 9 | 54 | 19970 | 101.15 | 824 | 832 | 189.2 |
| D | 1 | 52 | 319136 | 1592.26 | 836 | 815 | 199.9 |
| D | 7 | 238 | 107812 | 535.21 | 836 | 815 | 199.9 |
| D | 14 | 34 | 27846 | 135.21 | 836 | 815 | 199.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

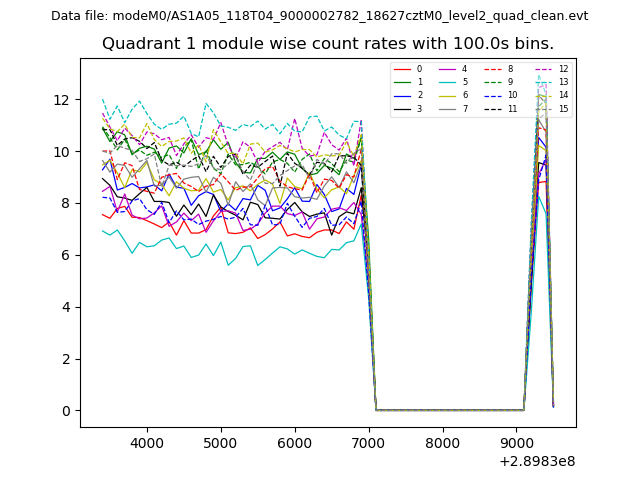

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

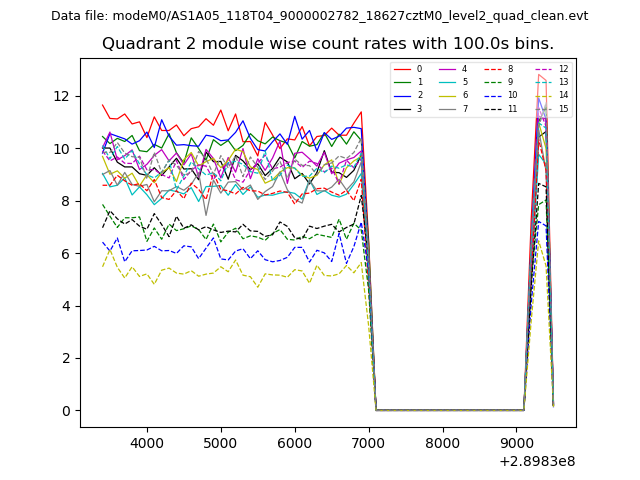

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

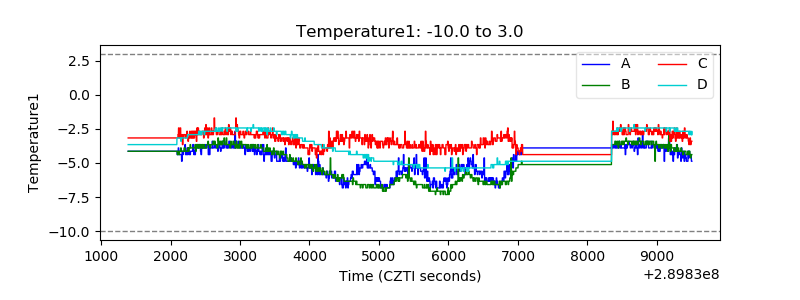

| Temperature 1 |  |
| Veto HV Monitor |  |

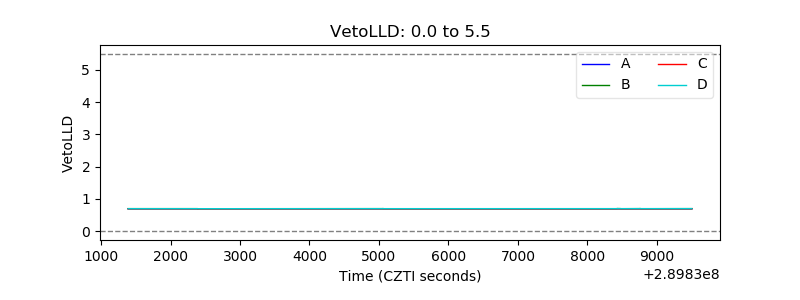

| Veto LLD |  |
| Alpha Counter |  |

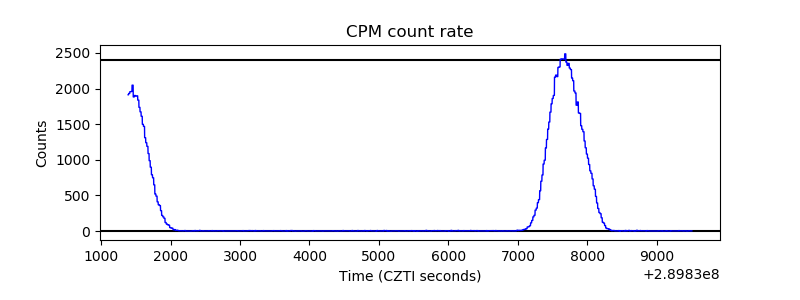

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
