| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002784_18638cztM0_level2.evt | modeM0/AS1C04_001T01_9000002784_18638cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,590,720 | 108,838,080 |
| Size | 476.4 MB | 103.8 MB |
| Events in quadrant A | 2,901,763 | 725,648 |
| Events in quadrant B | 5,242,132 | 712,890 |
| Events in quadrant C | 2,912,354 | 720,651 |
| Events in quadrant D | 3,651,780 | 702,881 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12703 | 1 |
| B | 0 | 19748 | 1 |
| C | 0 | 12625 | 1 |
| D | 0 | 14935 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6220 | 54 | 0.868167% |
| B | 6221 | 515 | 8.278412% |
| C | 6221 | 53 | 0.851953% |
| D | 6221 | 141 | 2.266517% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

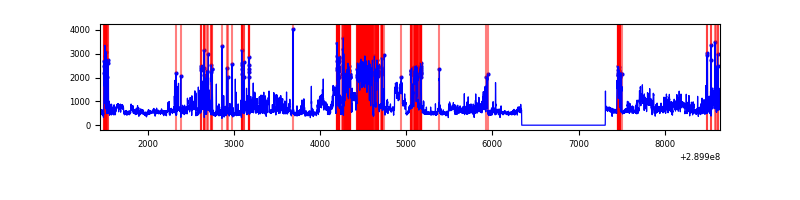

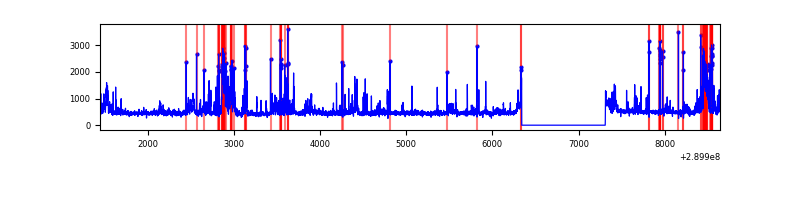

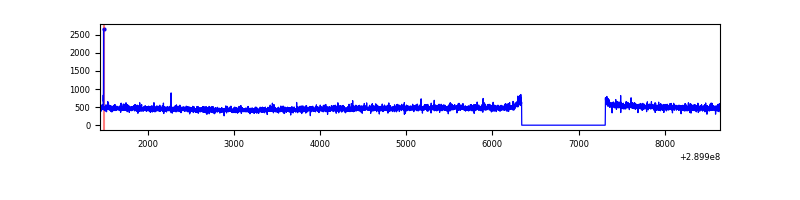

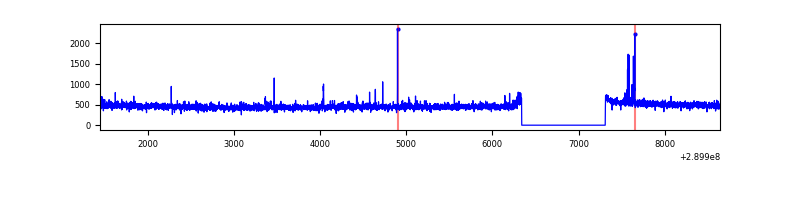

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7190 | 6220 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7191 | 6221 | 343 | 343 | 4.77% | 5.51% |  |
| C | 7191 | 6222 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7191 | 6221 | 96 | 96 | 1.34% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 16424 | 104.49 | 741 | 727 | 150.2 |
| A | 9 | 143 | 16328 | 103.85 | 741 | 727 | 150.2 |
| A | 13 | 254 | 9210 | 56.47 | 741 | 727 | 150.2 |
| B | 10 | 245 | 2329499 | 16879.14 | 723 | 705 | 138.0 |
| B | 0 | 197 | 29494 | 208.66 | 723 | 705 | 138.0 |
| B | 12 | 111 | 16757 | 116.35 | 723 | 705 | 138.0 |
| C | 14 | 238 | 111542 | 665.55 | 711 | 715 | 166.5 |
| C | 3 | 233 | 15577 | 89.25 | 711 | 715 | 166.5 |
| C | 9 | 54 | 13896 | 79.16 | 711 | 715 | 166.5 |
| D | 1 | 52 | 442431 | 2533.32 | 717 | 697 | 174.4 |
| D | 7 | 238 | 388824 | 2225.89 | 717 | 697 | 174.4 |
| D | 10 | 70 | 44551 | 251.5 | 717 | 697 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

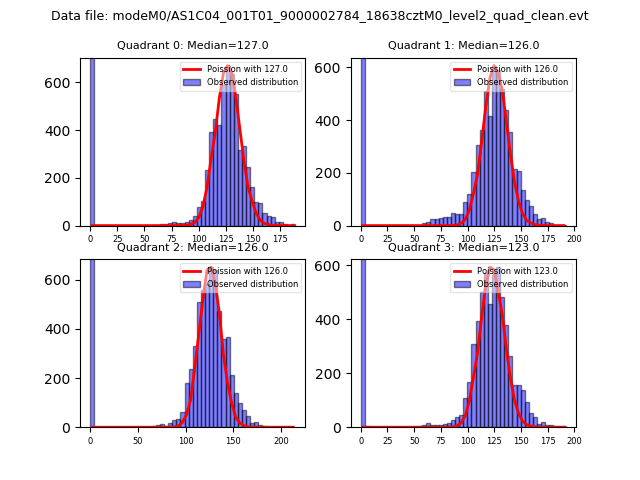

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

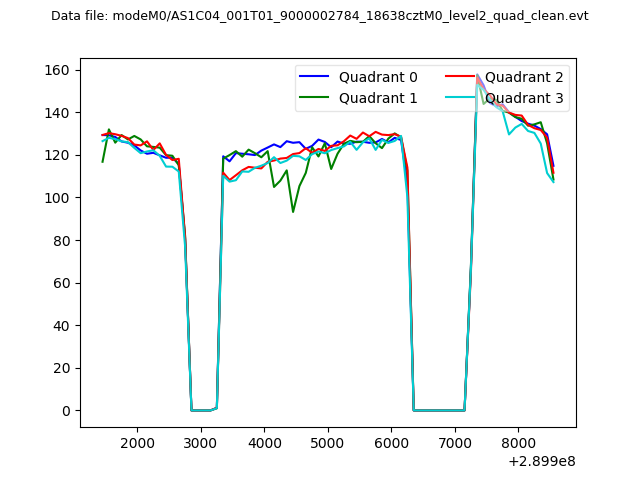

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

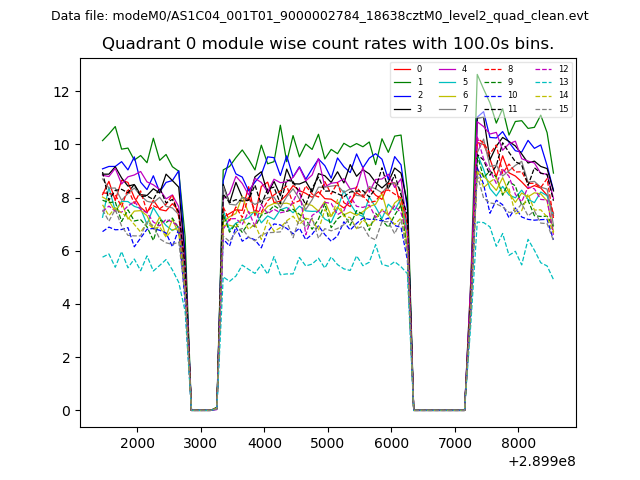

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

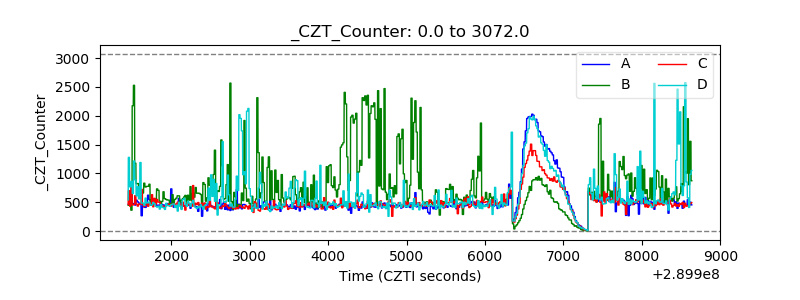

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
