| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T01_9000002786_18644cztM0_level2.evt | modeM0/AS1A06_003T01_9000002786_18644cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,699,840 | 111,936,960 |
| Size | 524.2 MB | 106.8 MB |
| Events in quadrant A | 5,453,078 | 718,791 |
| Events in quadrant B | 3,392,341 | 762,613 |
| Events in quadrant C | 3,427,605 | 744,301 |
| Events in quadrant D | 3,942,171 | 719,113 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20737 | 7 |
| B | 0 | 14152 | 2 |
| C | 0 | 14123 | 2 |
| D | 0 | 16028 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6380 | 448 | 7.021944% |
| B | 6381 | 185 | 2.899232% |
| C | 6381 | 186 | 2.914904% |
| D | 6381 | 171 | 2.679831% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9065 | 6381 | 227 | 227 | 2.50% | 3.56% |  |
| B | 9066 | 6382 | 4 | 4 | 0.04% | 0.06% |  |
| C | 9066 | 6382 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9066 | 6383 | 31 | 31 | 0.34% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2193429 | 13214.76 | 837 | 823 | 165.9 |
| A | 6 | 16 | 26357 | 153.89 | 837 | 823 | 165.9 |
| A | 13 | 254 | 9978 | 55.18 | 837 | 823 | 165.9 |
| B | 4 | 216 | 23641 | 142.96 | 851 | 832 | 159.5 |
| B | 0 | 189 | 22512 | 135.88 | 851 | 832 | 159.5 |
| B | 12 | 111 | 18399 | 110.11 | 851 | 832 | 159.5 |
| C | 14 | 238 | 128526 | 663.41 | 839 | 848 | 192.5 |
| C | 9 | 221 | 16865 | 83.22 | 839 | 848 | 192.5 |
| C | 3 | 233 | 9652 | 45.75 | 839 | 848 | 192.5 |
| D | 1 | 52 | 538247 | 2681.9 | 843 | 819 | 200.4 |
| D | 7 | 238 | 180410 | 896.2 | 843 | 819 | 200.4 |
| D | 2 | 234 | 25708 | 124.2 | 843 | 819 | 200.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

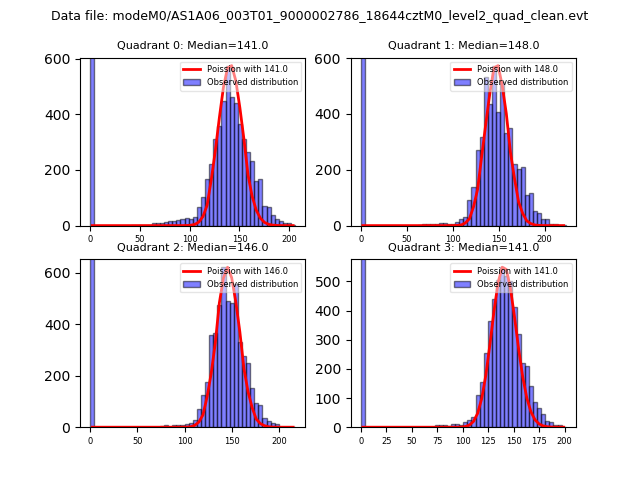

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

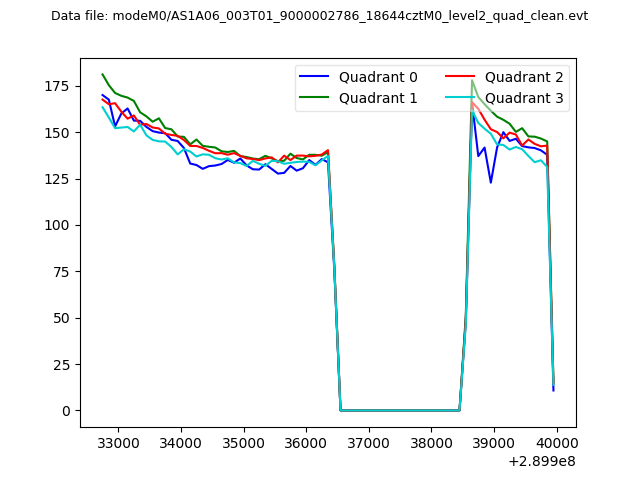

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

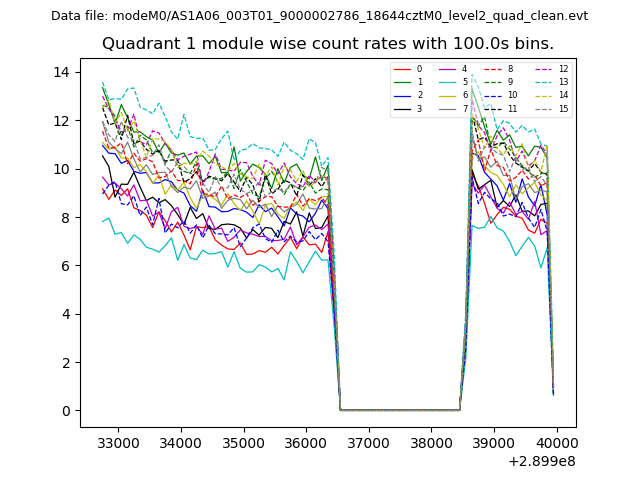

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
