| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T01_9000002788_18671cztM0_level2.evt | modeM0/AS1A06_005T01_9000002788_18671cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,014,400 | 111,409,920 |
| Size | 480.7 MB | 106.2 MB |
| Events in quadrant A | 3,387,976 | 752,108 |
| Events in quadrant B | 3,522,691 | 763,881 |
| Events in quadrant C | 3,358,151 | 720,276 |
| Events in quadrant D | 4,560,404 | 690,666 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14265 | 1 |
| B | 0 | 14652 | 1 |
| C | 0 | 14131 | 1 |
| D | 0 | 18076 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6412 | 84 | 1.310044% |
| B | 6412 | 100 | 1.559576% |
| C | 6412 | 109 | 1.699938% |
| D | 6412 | 285 | 4.444791% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

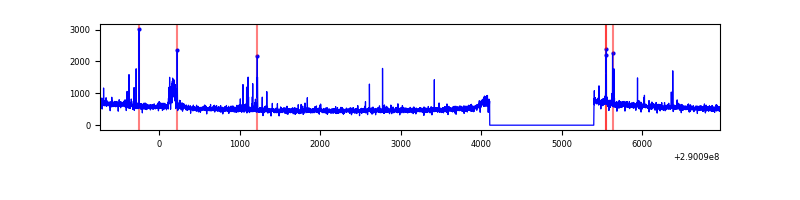

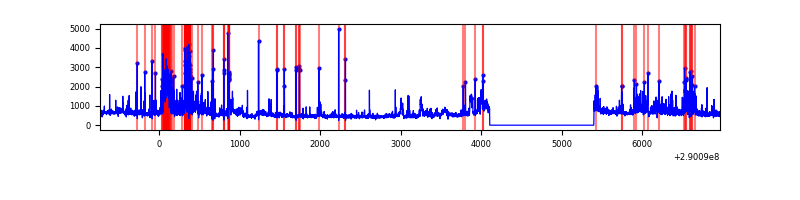

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7707 | 6412 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7707 | 6412 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7707 | 6413 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7707 | 6413 | 163 | 163 | 2.11% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10817 | 57.69 | 872 | 859 | 172.6 |
| A | 0 | 13 | 10422 | 55.4 | 872 | 859 | 172.6 |
| A | 11 | 29 | 8971 | 47.0 | 872 | 859 | 172.6 |
| B | 10 | 245 | 68049 | 421.62 | 863 | 845 | 159.4 |
| B | 4 | 80 | 30390 | 185.36 | 863 | 845 | 159.4 |
| B | 7 | 220 | 20276 | 121.91 | 863 | 845 | 159.4 |
| C | 14 | 238 | 130263 | 690.35 | 817 | 825 | 187.5 |
| C | 3 | 233 | 39365 | 205.55 | 817 | 825 | 187.5 |
| C | 13 | 61 | 5924 | 27.2 | 817 | 825 | 187.5 |
| D | 1 | 52 | 811539 | 4103.63 | 823 | 802 | 197.6 |
| D | 7 | 238 | 608353 | 3075.18 | 823 | 802 | 197.6 |
| D | 2 | 234 | 27411 | 134.68 | 823 | 802 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

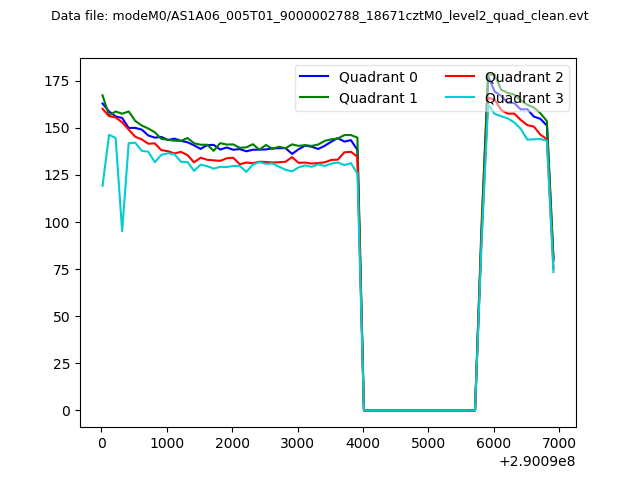

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

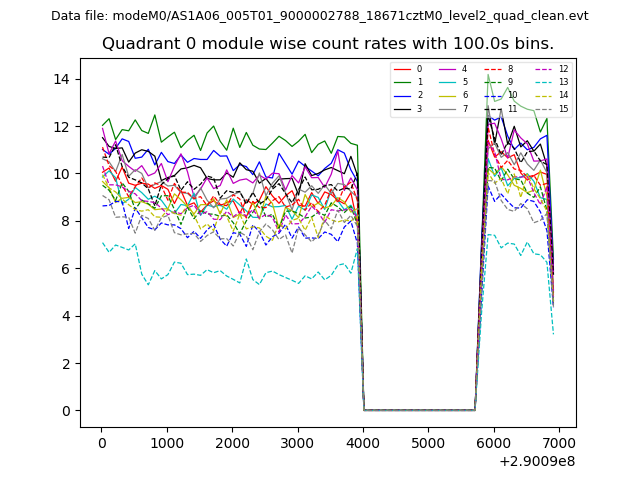

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

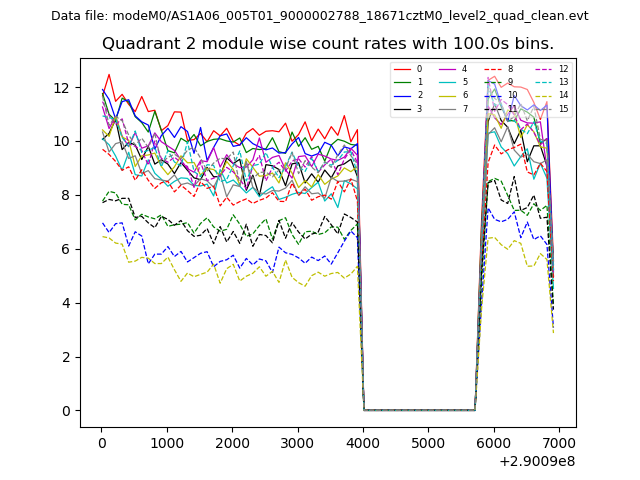

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

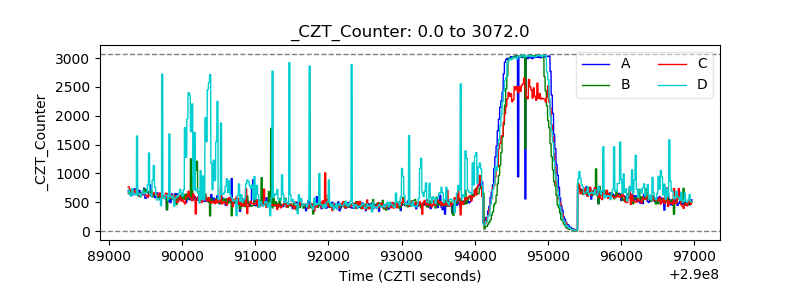

| CZT Counter |  |
| +2.5 Volts monitor |  |

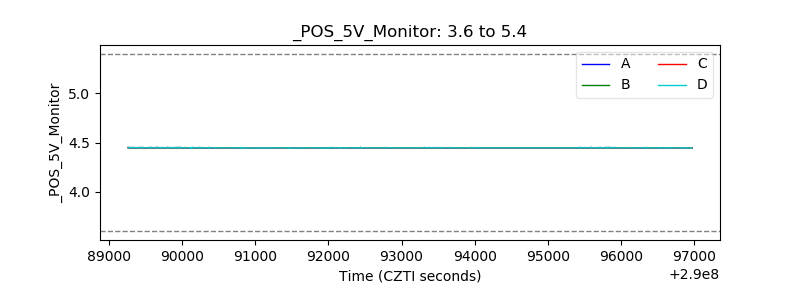

| +5 Volts monitor |  |

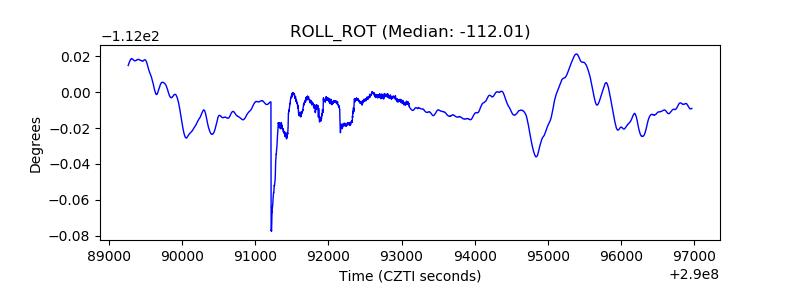

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
