| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000002794_18688cztM0_level2.evt | modeM0/AS1A05_072T04_9000002794_18688cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,161,600 | 81,584,640 |
| Size | 458.9 MB | 77.8 MB |
| Events in quadrant A | 3,282,857 | 511,447 |
| Events in quadrant B | 3,517,855 | 518,419 |
| Events in quadrant C | 3,952,687 | 500,811 |
| Events in quadrant D | 3,390,844 | 500,165 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13712 | 2 |
| B | 0 | 14526 | 2 |
| C | 0 | 15750 | 2 |
| D | 0 | 14122 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6297 | 109 | 1.730983% |
| B | 6297 | 139 | 2.207400% |
| C | 6297 | 350 | 5.558202% |
| D | 6297 | 130 | 2.064475% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7477 | 6298 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7477 | 6298 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7477 | 6298 | 119 | 119 | 1.59% | 1.89% |  |
| D | 7477 | 6298 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 22263 | 127.49 | 842 | 827 | 168.1 |
| A | 13 | 254 | 9876 | 53.82 | 842 | 827 | 168.1 |
| A | 9 | 143 | 7507 | 39.73 | 842 | 827 | 168.1 |
| B | 7 | 220 | 137981 | 868.04 | 838 | 819 | 158.0 |
| B | 0 | 197 | 38223 | 236.71 | 838 | 819 | 158.0 |
| B | 4 | 171 | 21312 | 129.69 | 838 | 819 | 158.0 |
| C | 9 | 54 | 621095 | 3289.36 | 810 | 816 | 188.6 |
| C | 14 | 238 | 127240 | 670.43 | 810 | 816 | 188.6 |
| C | 0 | 207 | 21670 | 110.59 | 810 | 816 | 188.6 |
| D | 7 | 238 | 102296 | 508.73 | 829 | 808 | 199.5 |
| D | 1 | 52 | 97130 | 482.84 | 829 | 808 | 199.5 |
| D | 2 | 234 | 28302 | 137.82 | 829 | 808 | 199.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

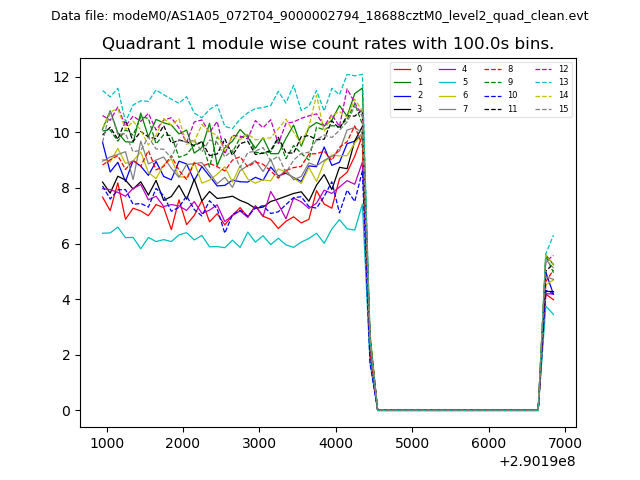

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

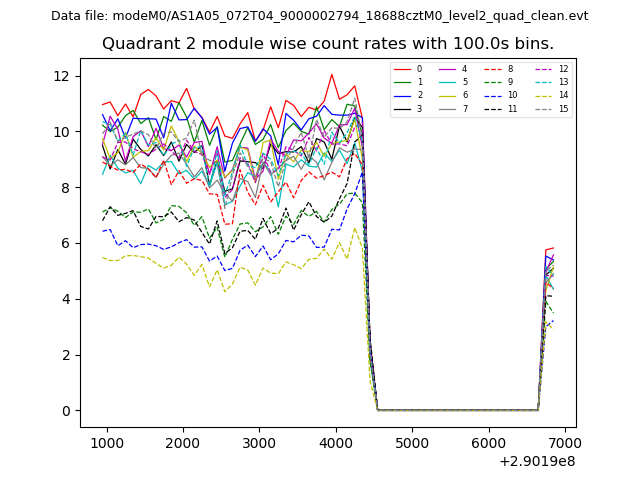

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

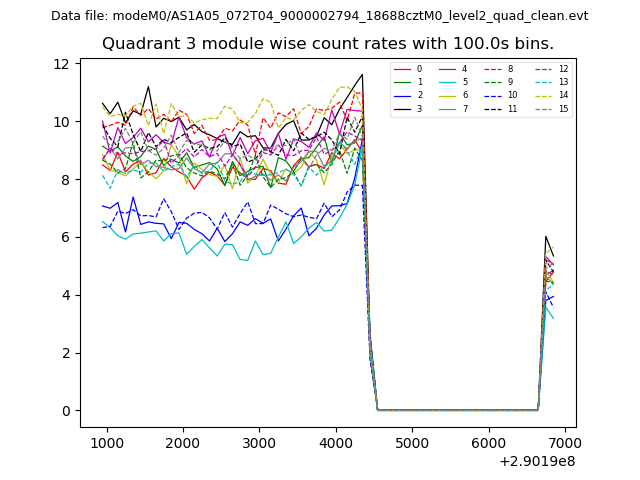

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

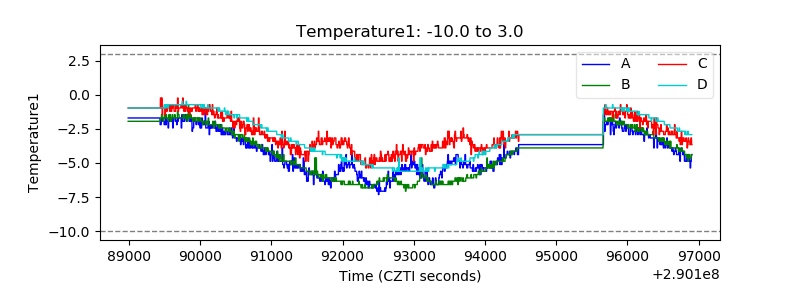

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

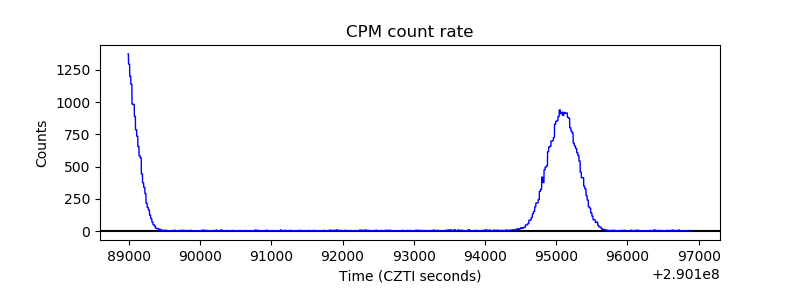

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
