| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T07_9000002796_18701cztM0_level2.evt | modeM0/AS1A05_165T07_9000002796_18701cztM0_level2_quad_clean.evt |
| Size (bytes) | 249,736,320 | 31,763,520 |
| Size | 238.2 MB | 30.3 MB |
| Events in quadrant A | 1,919,502 | 193,113 |
| Events in quadrant B | 1,535,294 | 198,733 |
| Events in quadrant C | 1,559,689 | 191,011 |
| Events in quadrant D | 2,363,779 | 185,089 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7515 | 1 |
| B | 0 | 6234 | 1 |
| C | 0 | 6278 | 1 |
| D | 0 | 8886 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 57 | 0 |
| D | 0 | 56 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2699 | 226 | 8.373472% |
| B | 2699 | 86 | 3.186365% |
| C | 2699 | 109 | 4.038533% |
| D | 2698 | 187 | 6.931060% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

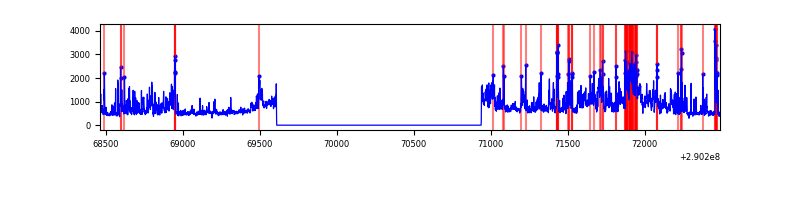

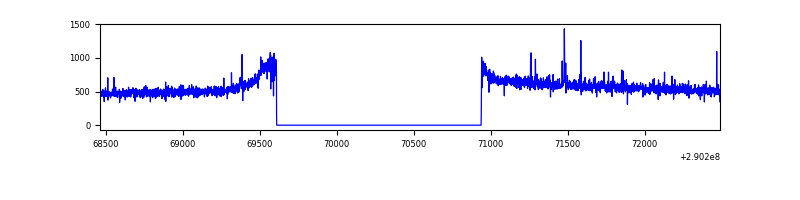

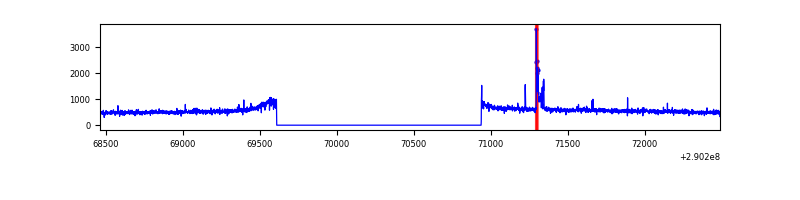

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4029 | 2700 | 83 | 83 | 2.06% | 3.07% |  |
| B | 4029 | 2700 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4029 | 2700 | 6 | 6 | 0.15% | 0.22% |  |
| D | 4028 | 2699 | 89 | 89 | 2.21% | 3.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 435991 | 5586.29 | 383 | 376 | 78.0 |
| A | 11 | 29 | 5675 | 67.95 | 383 | 376 | 78.0 |
| A | 13 | 254 | 4501 | 52.9 | 383 | 376 | 78.0 |
| B | 4 | 216 | 8717 | 112.32 | 387 | 378 | 74.2 |
| B | 12 | 111 | 8484 | 109.19 | 387 | 378 | 74.2 |
| B | 11 | 111 | 7305 | 93.3 | 387 | 378 | 74.2 |
| C | 14 | 238 | 59111 | 681.11 | 370 | 373 | 86.2 |
| C | 0 | 207 | 52304 | 602.18 | 370 | 373 | 86.2 |
| C | 13 | 61 | 2643 | 26.32 | 370 | 373 | 86.2 |
| D | 1 | 52 | 882917 | 9569.16 | 375 | 363 | 92.2 |
| D | 7 | 238 | 40256 | 432.54 | 375 | 363 | 92.2 |
| D | 5 | 243 | 15902 | 168.48 | 375 | 363 | 92.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

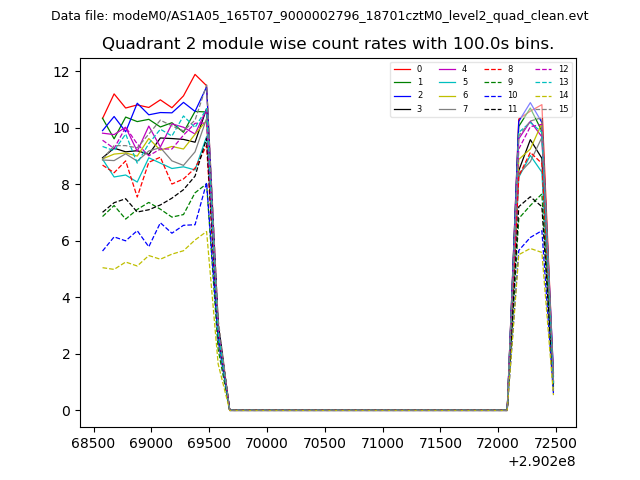

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

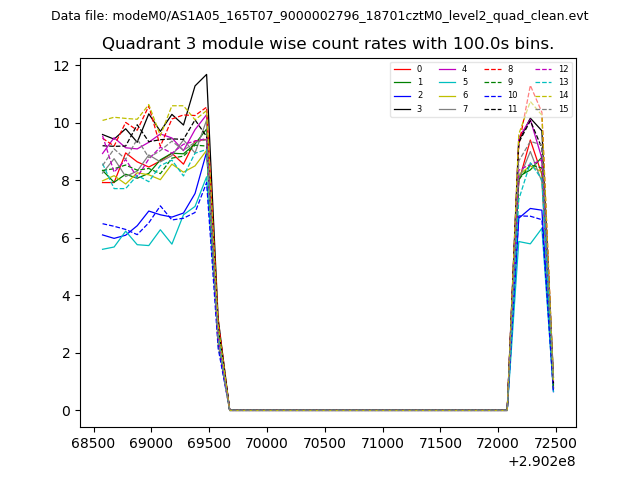

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

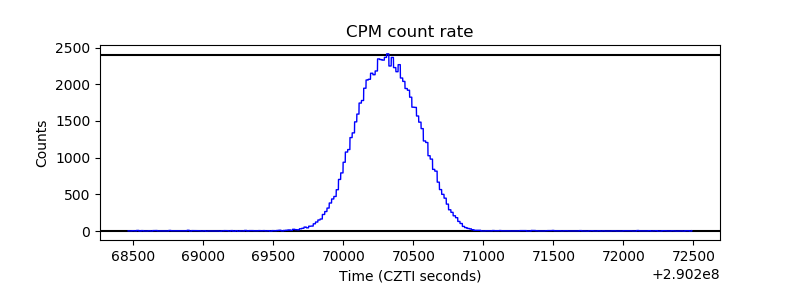

| _CPM_Rate |  |

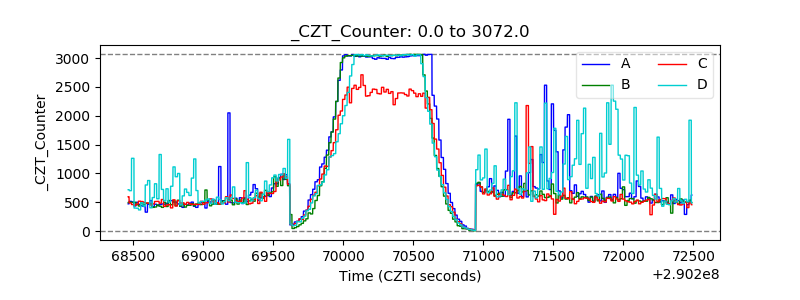

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

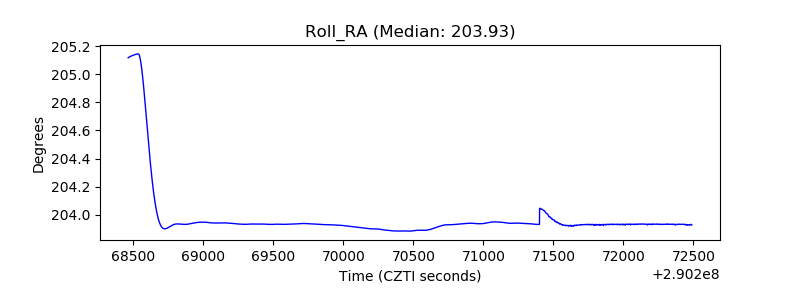

| _Roll_RA |  |
| Veto Counter |  |
