| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T07_9000002796_18703cztM0_level2.evt | modeM0/AS1A05_165T07_9000002796_18703cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,226,560 | 92,741,760 |
| Size | 529.5 MB | 88.4 MB |
| Events in quadrant A | 3,447,216 | 600,894 |
| Events in quadrant B | 3,243,199 | 614,365 |
| Events in quadrant C | 4,526,427 | 580,035 |
| Events in quadrant D | 5,164,477 | 566,859 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14379 | 2 |
| B | 0 | 13630 | 3 |
| C | 0 | 18224 | 2 |
| D | 0 | 19602 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 122 | 1.905059% |
| B | 6404 | 68 | 1.061836% |
| C | 6404 | 127 | 1.983136% |
| D | 6404 | 777 | 12.133042% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

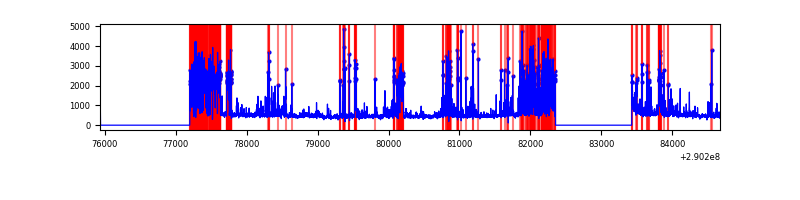

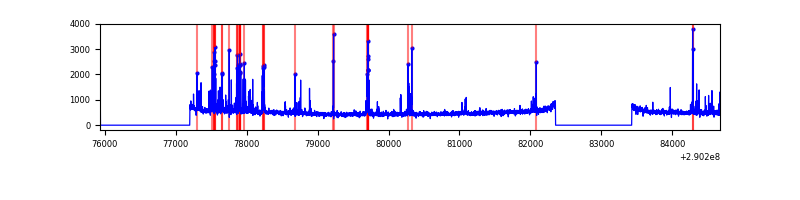

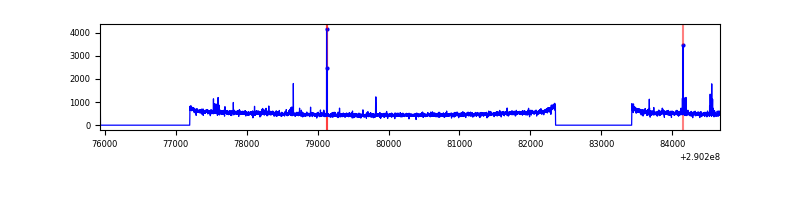

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8739 | 6406 | 40 | 40 | 0.46% | 0.62% |  |
| B | 8739 | 6405 | 3 | 3 | 0.03% | 0.05% |  |
| C | 8739 | 6405 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8739 | 6406 | 629 | 629 | 7.20% | 9.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 254847 | 1570.8 | 807 | 791 | 161.7 |
| A | 9 | 143 | 70611 | 431.69 | 807 | 791 | 161.7 |
| A | 11 | 29 | 11459 | 65.96 | 807 | 791 | 161.7 |
| B | 0 | 197 | 40295 | 259.16 | 811 | 792 | 152.4 |
| B | 12 | 111 | 18065 | 113.32 | 811 | 792 | 152.4 |
| B | 11 | 111 | 15883 | 99.0 | 811 | 792 | 152.4 |
| C | 3 | 233 | 1385337 | 7738.71 | 771 | 777 | 178.9 |
| C | 14 | 238 | 121185 | 673.0 | 771 | 777 | 178.9 |
| C | 9 | 221 | 12695 | 66.61 | 771 | 777 | 178.9 |
| D | 1 | 52 | 1892449 | 10606.18 | 738 | 715 | 178.4 |
| D | 7 | 238 | 466032 | 2608.84 | 738 | 715 | 178.4 |
| D | 2 | 234 | 27619 | 150.84 | 738 | 715 | 178.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

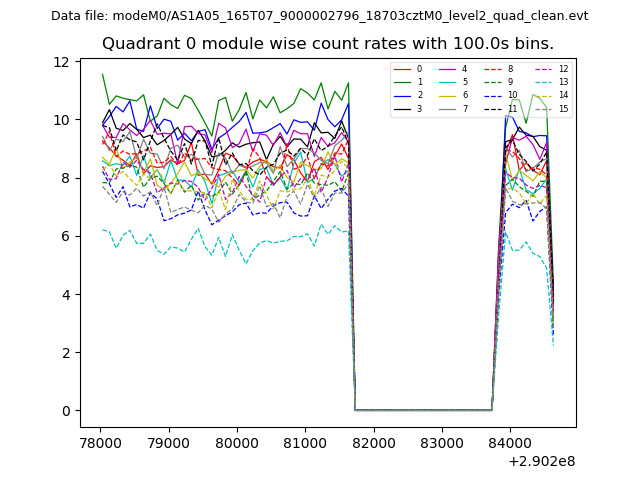

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

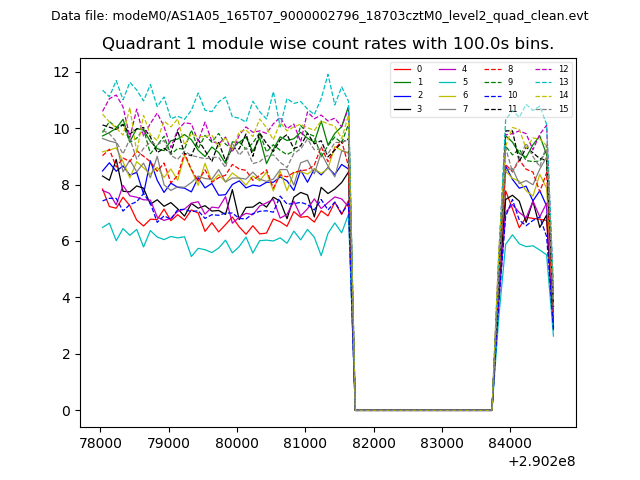

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

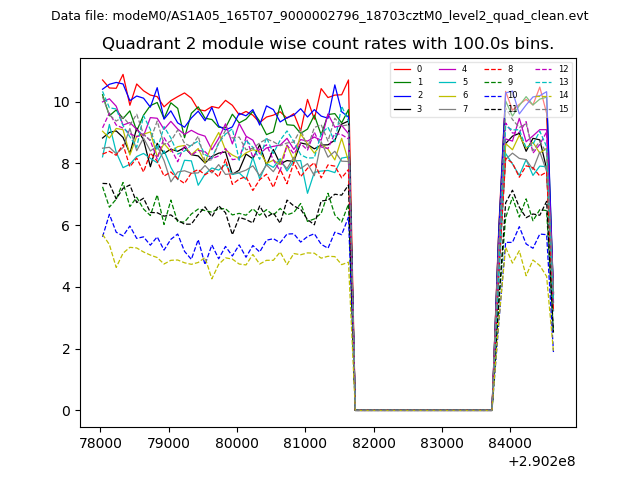

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

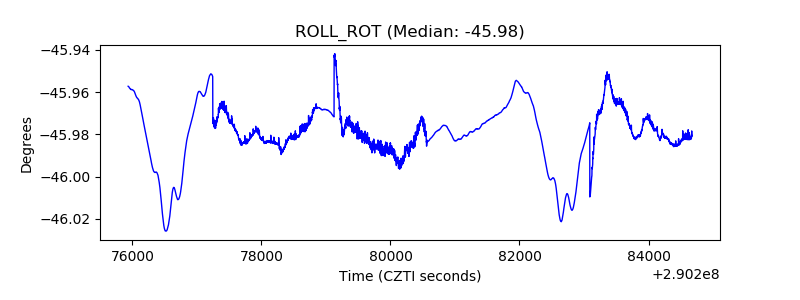

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

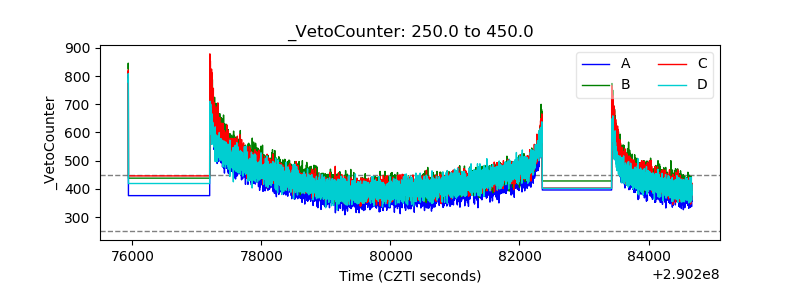

| Veto Counter |  |
