| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T07_9000002796_18712cztM0_level2.evt | modeM0/AS1A05_165T07_9000002796_18712cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,086,720 | 71,939,520 |
| Size | 441.6 MB | 68.6 MB |
| Events in quadrant A | 3,071,399 | 445,536 |
| Events in quadrant B | 3,148,479 | 453,506 |
| Events in quadrant C | 4,281,868 | 431,975 |
| Events in quadrant D | 3,115,266 | 427,785 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12707 | 1 |
| B | 0 | 13115 | 1 |
| C | 0 | 17328 | 1 |
| D | 0 | 13190 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6005 | 43 | 0.716070% |
| B | 6005 | 59 | 0.982515% |
| C | 6005 | 104 | 1.731890% |
| D | 6005 | 50 | 0.832639% |

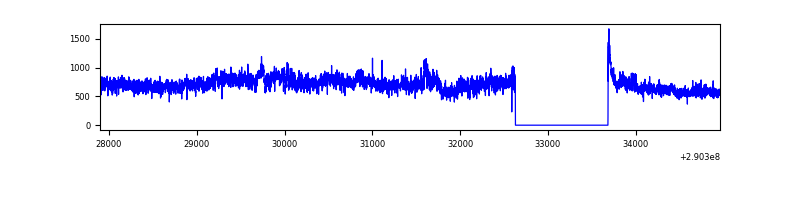

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7060 | 6005 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7060 | 6006 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7060 | 6006 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7060 | 6006 | 9 | 9 | 0.13% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 166047 | 1100.68 | 748 | 731 | 150.2 |
| A | 15 | 192 | 10865 | 67.47 | 748 | 731 | 150.2 |
| A | 11 | 29 | 10031 | 61.92 | 748 | 731 | 150.2 |
| B | 4 | 216 | 114438 | 804.53 | 743 | 723 | 141.3 |
| B | 3 | 64 | 34308 | 237.61 | 743 | 723 | 141.3 |
| B | 10 | 245 | 26194 | 180.21 | 743 | 723 | 141.3 |
| C | 3 | 233 | 1356934 | 8021.67 | 722 | 728 | 169.1 |
| C | 14 | 238 | 111466 | 654.99 | 722 | 728 | 169.1 |
| C | 13 | 61 | 5043 | 25.52 | 722 | 728 | 169.1 |
| D | 1 | 52 | 170136 | 952.28 | 733 | 711 | 177.9 |
| D | 7 | 238 | 136935 | 765.67 | 733 | 711 | 177.9 |
| D | 2 | 234 | 26282 | 143.73 | 733 | 711 | 177.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

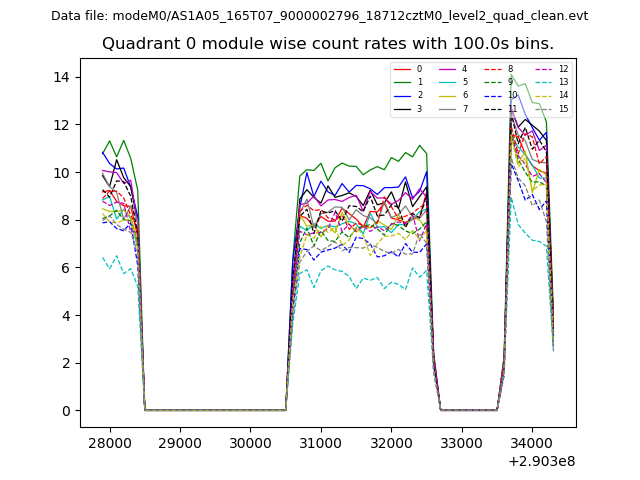

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

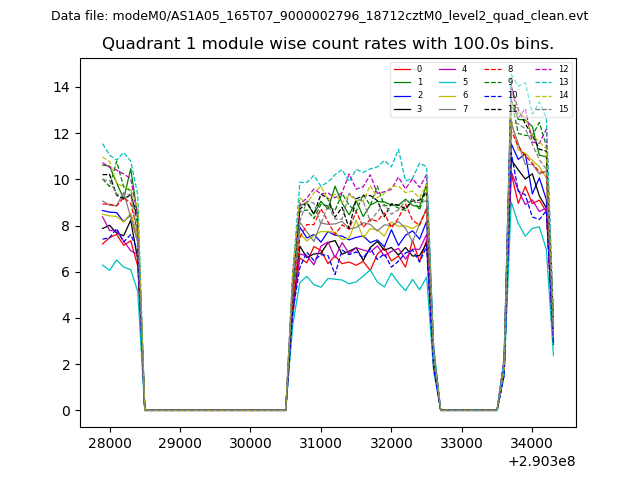

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

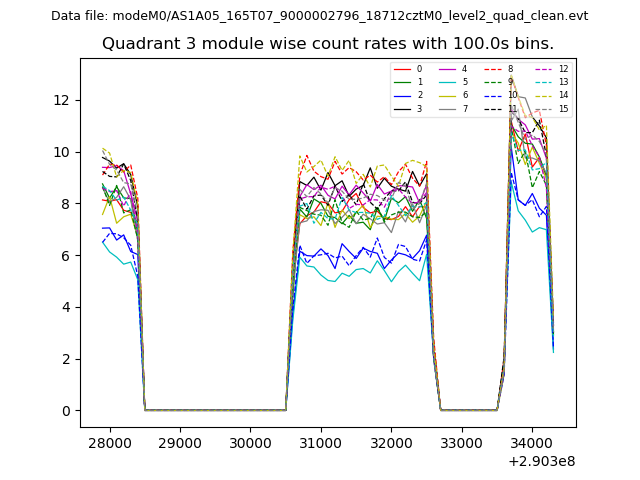

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

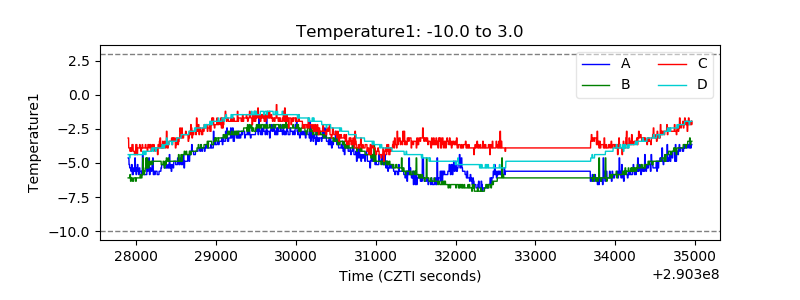

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

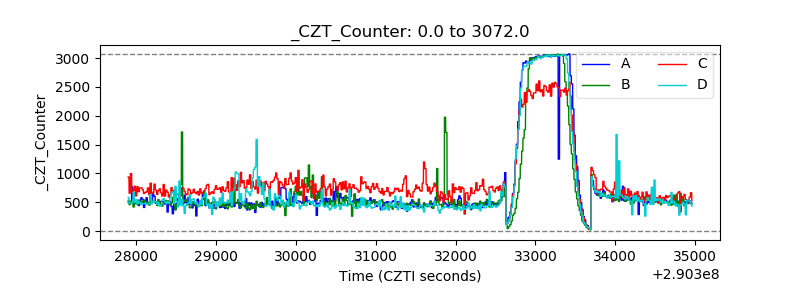

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

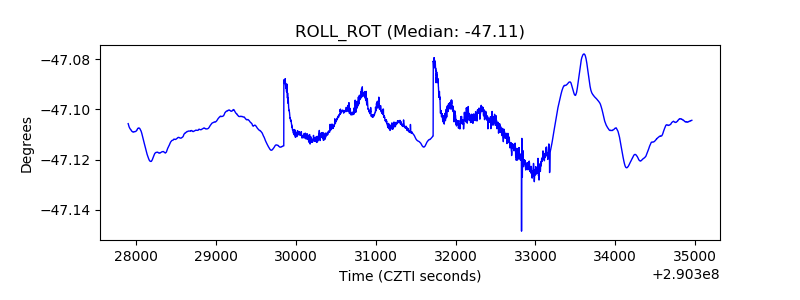

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

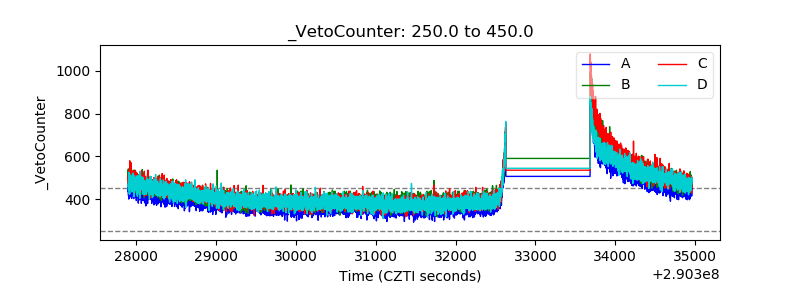

| Veto Counter |  |
