| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_091T01_9000002798_18718cztM0_level2.evt | modeM0/AS1T03_091T01_9000002798_18718cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,776,320 | 97,908,480 |
| Size | 431.8 MB | 93.4 MB |
| Events in quadrant A | 3,199,221 | 639,890 |
| Events in quadrant B | 3,296,337 | 652,482 |
| Events in quadrant C | 3,324,409 | 608,257 |
| Events in quadrant D | 3,434,539 | 595,112 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13907 | 0 |
| B | 0 | 14060 | 0 |
| C | 0 | 14233 | 0 |
| D | 0 | 14912 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6736 | 47 | 0.697743% |
| B | 6736 | 57 | 0.846200% |
| C | 6737 | 81 | 1.202316% |
| D | 6737 | 116 | 1.721835% |

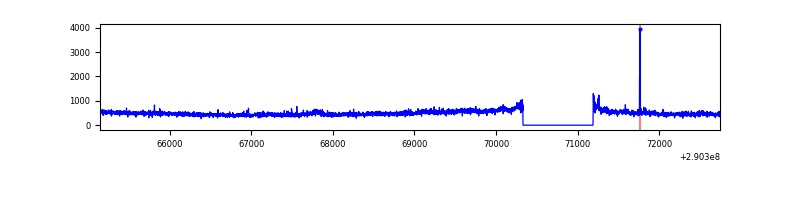

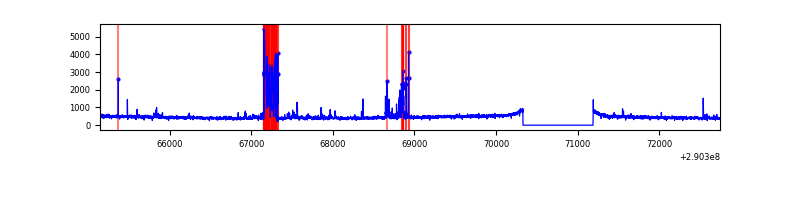

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 6737 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7596 | 6737 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7597 | 6738 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7597 | 6738 | 91 | 91 | 1.20% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10656 | 58.73 | 824 | 806 | 167.7 |
| A | 9 | 143 | 9266 | 50.44 | 824 | 806 | 167.7 |
| A | 14 | 111 | 8257 | 44.43 | 824 | 806 | 167.7 |
| B | 7 | 220 | 37416 | 233.04 | 824 | 804 | 157.1 |
| B | 12 | 111 | 18331 | 111.56 | 824 | 804 | 157.1 |
| B | 11 | 111 | 15644 | 94.46 | 824 | 804 | 157.1 |
| C | 3 | 233 | 151739 | 837.5 | 778 | 784 | 180.2 |
| C | 14 | 238 | 122415 | 674.81 | 778 | 784 | 180.2 |
| C | 0 | 207 | 19610 | 104.45 | 778 | 784 | 180.2 |
| D | 7 | 223 | 308323 | 1613.57 | 782 | 761 | 190.6 |
| D | 7 | 238 | 138870 | 724.56 | 782 | 761 | 190.6 |
| D | 2 | 234 | 28525 | 145.66 | 782 | 761 | 190.6 |

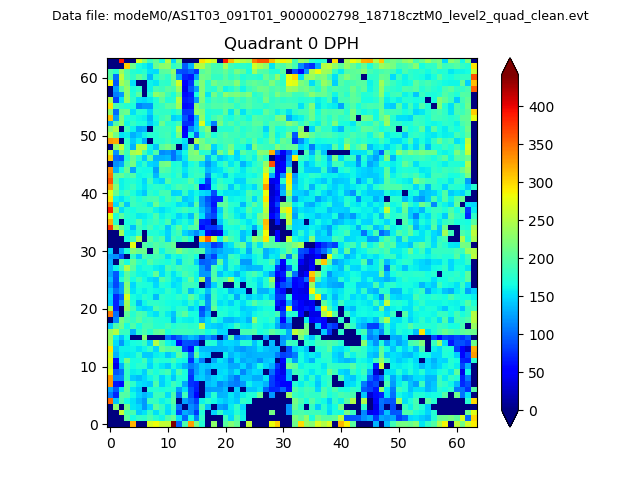

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

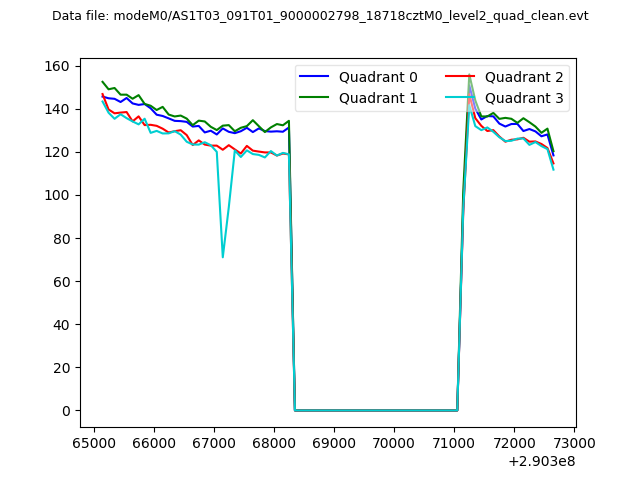

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

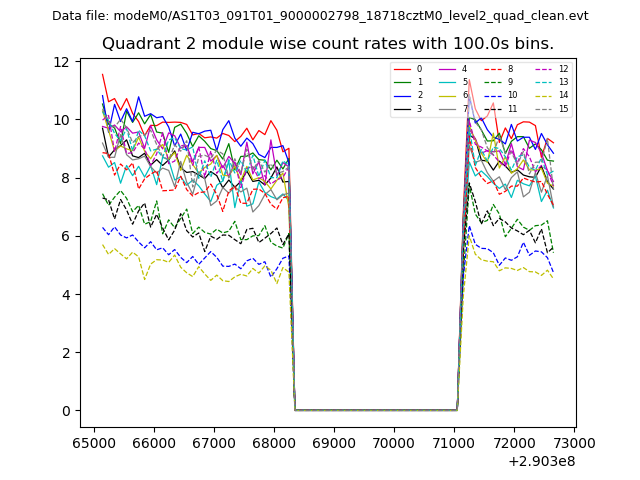

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

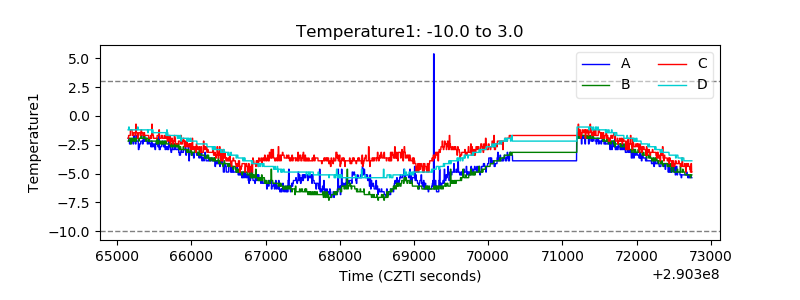

| Temperature 1 |  |

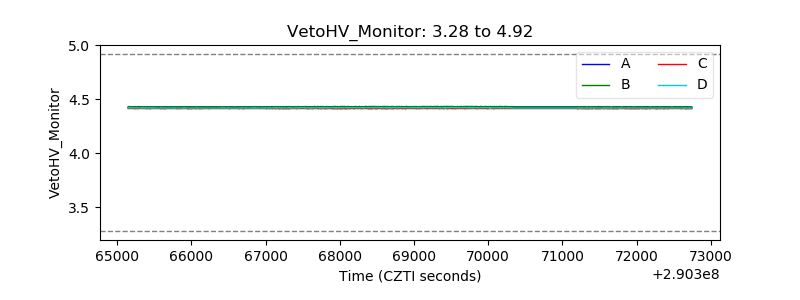

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

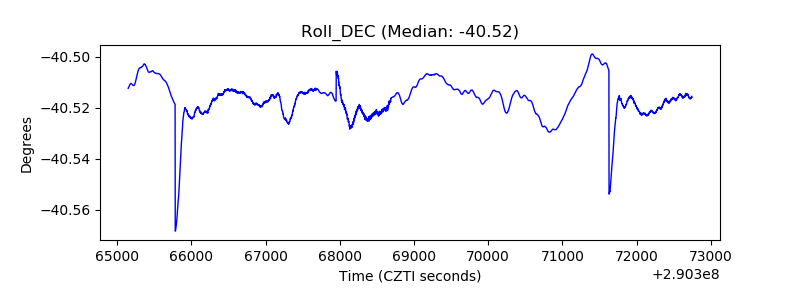

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
