| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_091T01_9000002798_18720cztM0_level2.evt | modeM0/AS1T03_091T01_9000002798_18720cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,779,520 | 107,631,360 |
| Size | 555.8 MB | 102.6 MB |
| Events in quadrant A | 3,532,718 | 715,450 |
| Events in quadrant B | 6,322,022 | 655,867 |
| Events in quadrant C | 3,871,995 | 686,193 |
| Events in quadrant D | 3,411,498 | 677,491 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15605 | 3 |
| B | 0 | 23836 | 3 |
| C | 0 | 16404 | 3 |
| D | 0 | 15504 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7530 | 54 | 0.717131% |
| B | 7530 | 1074 | 14.262948% |
| C | 7530 | 102 | 1.354582% |
| D | 7531 | 26 | 0.345240% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

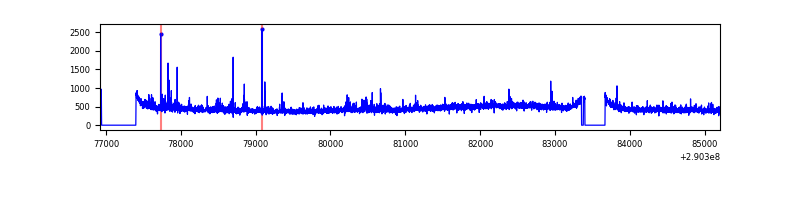

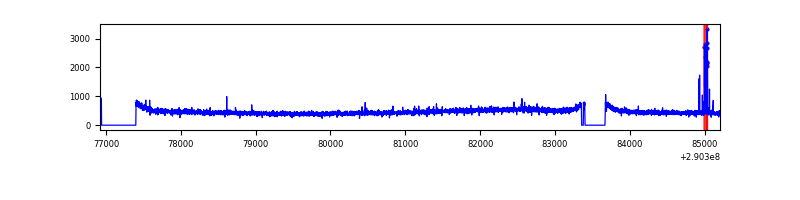

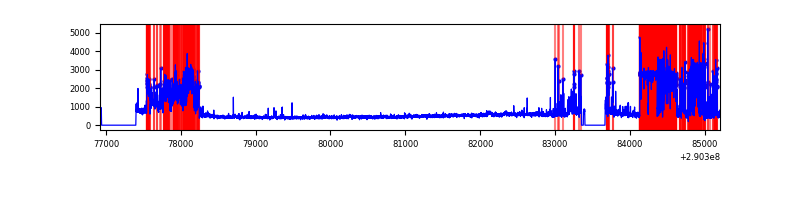

| A | 8285 | 7533 | 9 | 9 | 0.11% | 0.12% |  |
| B | 8285 | 7533 | 797 | 797 | 9.62% | 10.58% |  |
| C | 8285 | 7533 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8286 | 7534 | 2 | 2 | 0.02% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 48958 | 265.62 | 900 | 881 | 181.0 |
| A | 13 | 254 | 11938 | 61.09 | 900 | 881 | 181.0 |
| A | 15 | 192 | 8105 | 39.91 | 900 | 881 | 181.0 |
| B | 10 | 245 | 2891552 | 17612.97 | 849 | 827 | 164.1 |
| B | 7 | 220 | 54992 | 330.02 | 849 | 827 | 164.1 |
| B | 12 | 111 | 19215 | 112.04 | 849 | 827 | 164.1 |
| C | 3 | 233 | 354040 | 1762.35 | 855 | 860 | 200.4 |
| C | 14 | 238 | 133733 | 663.03 | 855 | 860 | 200.4 |
| C | 0 | 207 | 17839 | 84.72 | 855 | 860 | 200.4 |
| D | 7 | 238 | 82602 | 388.04 | 866 | 839 | 210.7 |
| D | 2 | 234 | 35804 | 165.94 | 866 | 839 | 210.7 |
| D | 14 | 34 | 25706 | 118.02 | 866 | 839 | 210.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

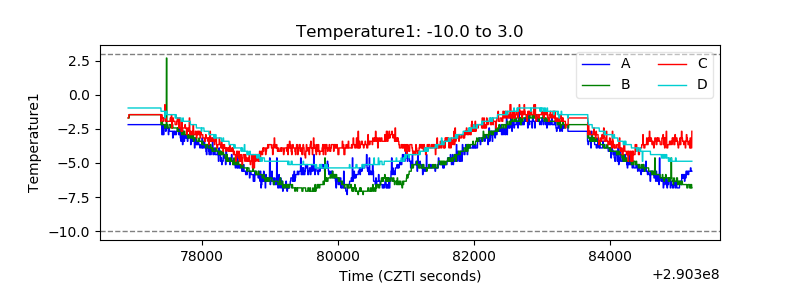

| Temperature 1 |  |

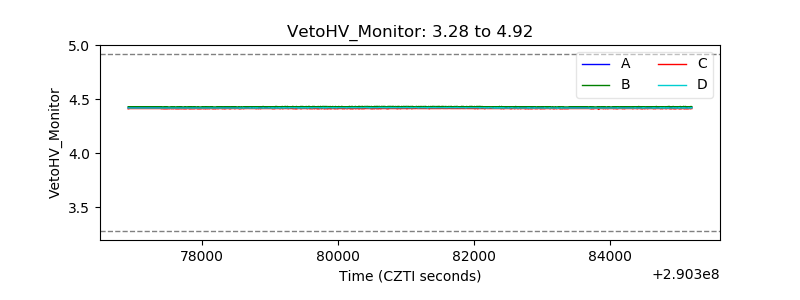

| Veto HV Monitor |  |
| Veto LLD |  |

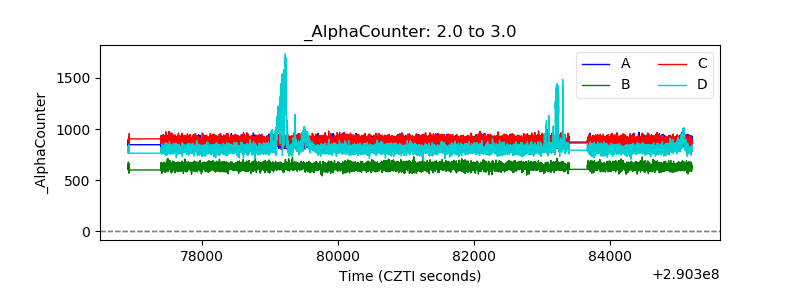

| Alpha Counter |  |

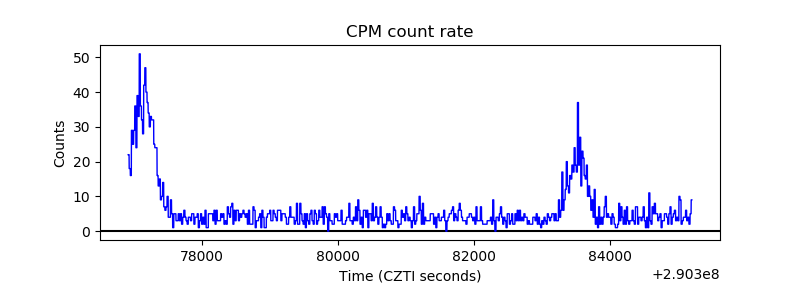

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

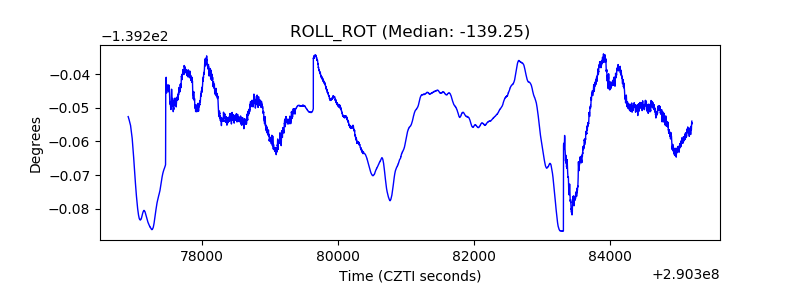

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
