| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_156T01_9000002804_18749cztM0_level2.evt | modeM0/AS1A05_156T01_9000002804_18749cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,585,600 | 106,179,840 |
| Size | 535.6 MB | 101.3 MB |
| Events in quadrant A | 3,876,357 | 668,935 |
| Events in quadrant B | 4,008,850 | 677,445 |
| Events in quadrant C | 3,920,248 | 659,175 |
| Events in quadrant D | 4,652,558 | 647,329 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16957 | 2 |
| B | 0 | 17229 | 2 |
| C | 0 | 16954 | 2 |
| D | 0 | 19482 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8095 | 86 | 1.062384% |
| B | 8096 | 185 | 2.285079% |
| C | 8096 | 224 | 2.766798% |
| D | 8096 | 275 | 3.396739% |

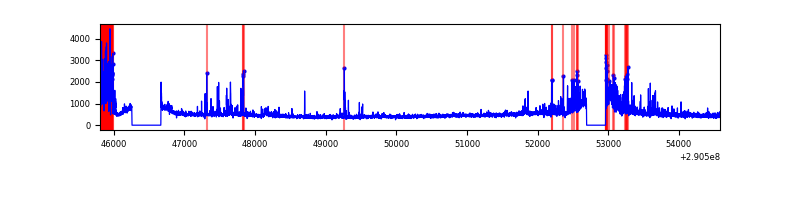

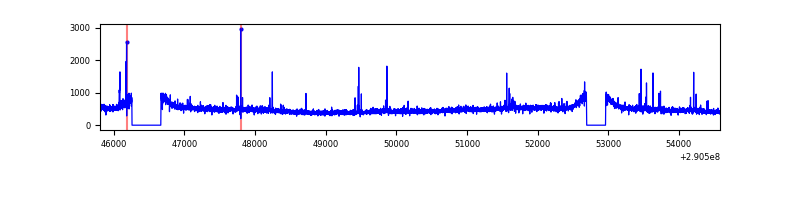

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8775 | 8097 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8776 | 8098 | 2 | 2 | 0.02% | 0.02% |  |
| C | 8776 | 8098 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8776 | 8098 | 108 | 108 | 1.23% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 19922 | 93.7 | 995 | 972 | 202.2 |
| A | 11 | 29 | 13816 | 63.51 | 995 | 972 | 202.2 |
| A | 13 | 254 | 13785 | 63.36 | 995 | 972 | 202.2 |
| B | 12 | 111 | 23666 | 117.29 | 998 | 971 | 193.5 |
| B | 3 | 64 | 22346 | 110.47 | 998 | 971 | 193.5 |
| B | 10 | 245 | 20632 | 101.61 | 998 | 971 | 193.5 |
| C | 14 | 238 | 148708 | 651.71 | 962 | 966 | 226.7 |
| C | 3 | 233 | 20496 | 86.15 | 962 | 966 | 226.7 |
| C | 13 | 61 | 6832 | 25.88 | 962 | 966 | 226.7 |
| D | 13 | 168 | 510439 | 2175.68 | 964 | 934 | 234.2 |
| D | 14 | 34 | 360655 | 1536.07 | 964 | 934 | 234.2 |
| D | 7 | 38 | 56884 | 238.91 | 964 | 934 | 234.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

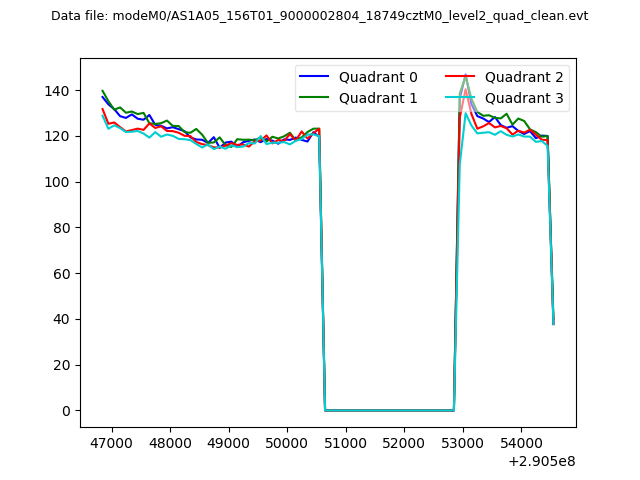

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

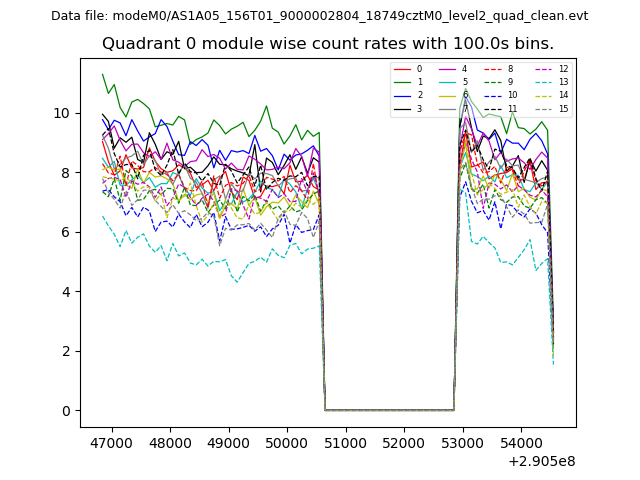

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

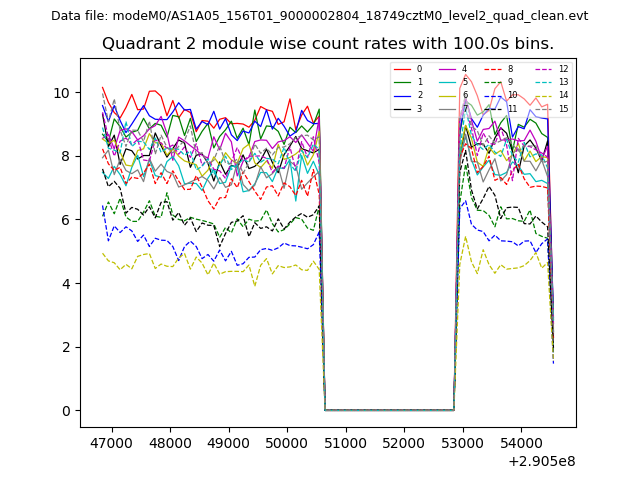

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

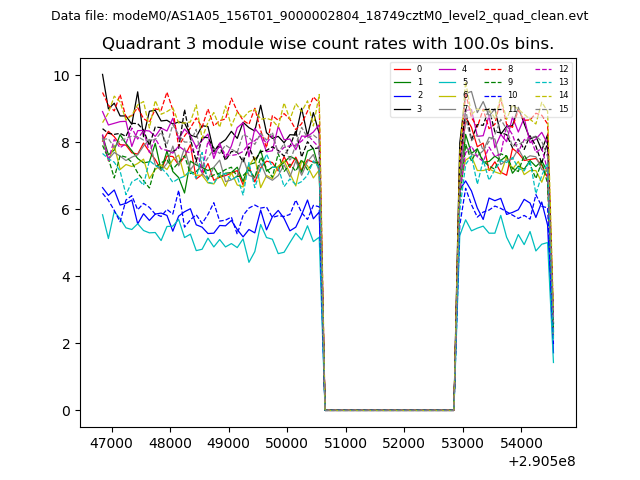

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

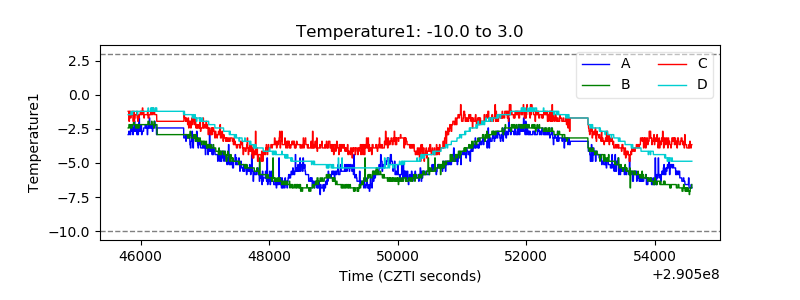

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

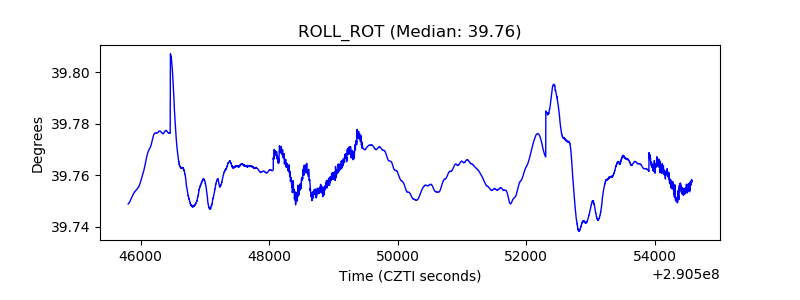

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
