| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_115T03_9000002806_18760cztM0_level2.evt | modeM0/AS1A05_115T03_9000002806_18760cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,838,400 | 85,256,640 |
| Size | 442.4 MB | 81.3 MB |
| Events in quadrant A | 3,324,894 | 541,912 |
| Events in quadrant B | 3,351,171 | 549,682 |
| Events in quadrant C | 3,329,224 | 529,221 |
| Events in quadrant D | 3,614,502 | 521,621 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13822 | 2 |
| B | 0 | 13824 | 2 |
| C | 0 | 13590 | 2 |
| D | 0 | 14679 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6296 | 83 | 1.318297% |
| B | 6296 | 107 | 1.699492% |
| C | 6296 | 118 | 1.874206% |
| D | 6296 | 61 | 0.968869% |

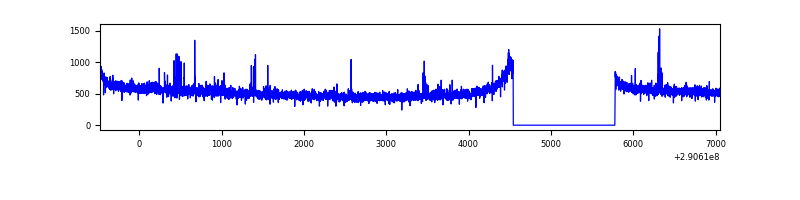

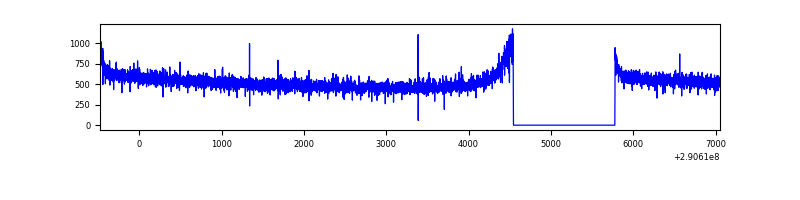

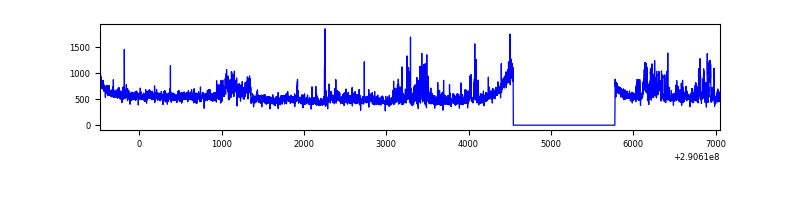

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7531 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7531 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7531 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 17130 | 95.58 | 851 | 836 | 170.5 |
| A | 8 | 205 | 12787 | 70.11 | 851 | 836 | 170.5 |
| A | 15 | 192 | 12120 | 66.19 | 851 | 836 | 170.5 |
| B | 12 | 111 | 19021 | 114.9 | 843 | 822 | 158.4 |
| B | 4 | 216 | 18542 | 111.87 | 843 | 822 | 158.4 |
| B | 11 | 111 | 16721 | 100.38 | 843 | 822 | 158.4 |
| C | 14 | 238 | 129141 | 672.23 | 820 | 827 | 190.9 |
| C | 13 | 61 | 5631 | 25.17 | 820 | 827 | 190.9 |
| C | 3 | 233 | 4556 | 19.54 | 820 | 827 | 190.9 |
| D | 1 | 52 | 142223 | 699.28 | 835 | 813 | 202.2 |
| D | 13 | 168 | 142199 | 699.16 | 835 | 813 | 202.2 |
| D | 7 | 238 | 93132 | 456.52 | 835 | 813 | 202.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

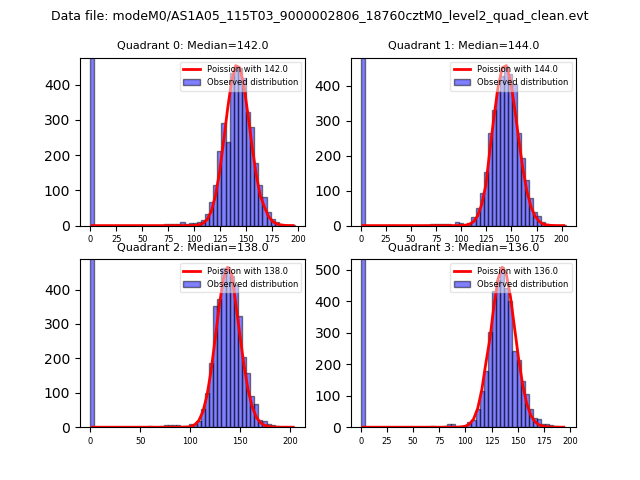

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

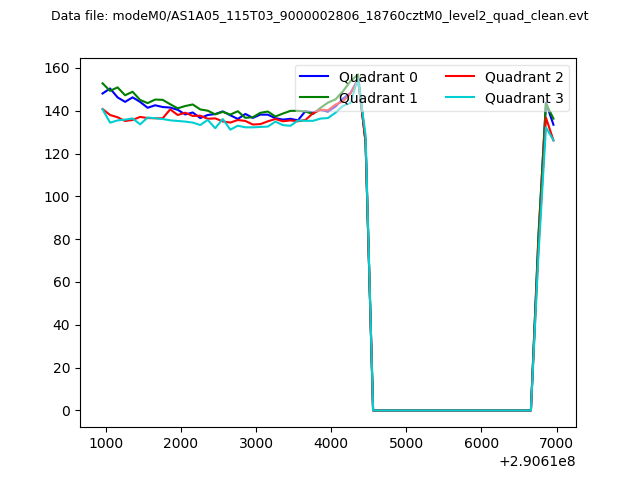

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

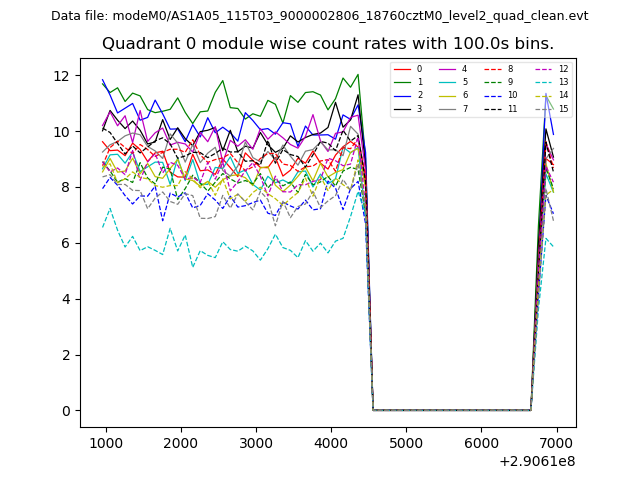

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

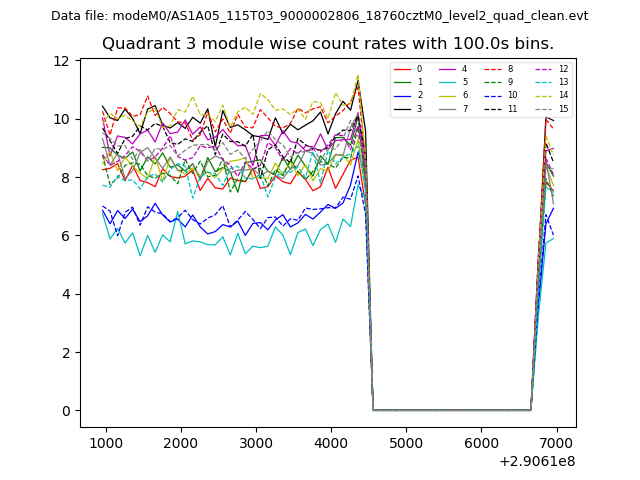

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

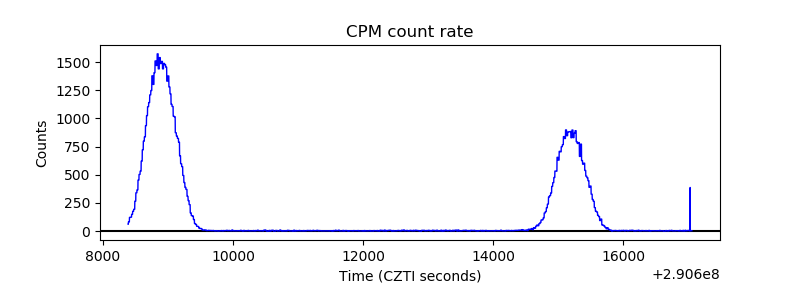

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
