| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_115T03_9000002806_18764cztM0_level2.evt | modeM0/AS1A05_115T03_9000002806_18764cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,408,640 | 105,376,320 |
| Size | 528.7 MB | 100.5 MB |
| Events in quadrant A | 4,710,012 | 659,790 |
| Events in quadrant B | 3,875,119 | 682,084 |
| Events in quadrant C | 3,905,199 | 659,836 |
| Events in quadrant D | 3,776,677 | 653,204 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19046 | 2 |
| B | 0 | 16688 | 2 |
| C | 0 | 16698 | 2 |
| D | 0 | 16719 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7708 | 348 | 4.514790% |
| B | 7708 | 219 | 2.841204% |
| C | 7708 | 243 | 3.152569% |
| D | 7709 | 129 | 1.673369% |

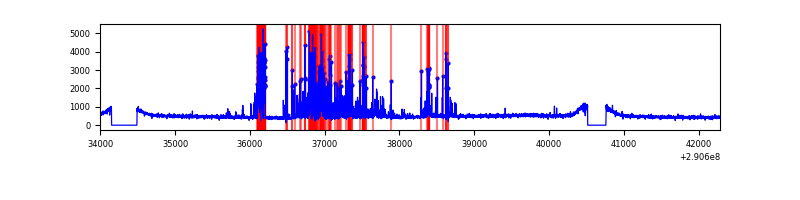

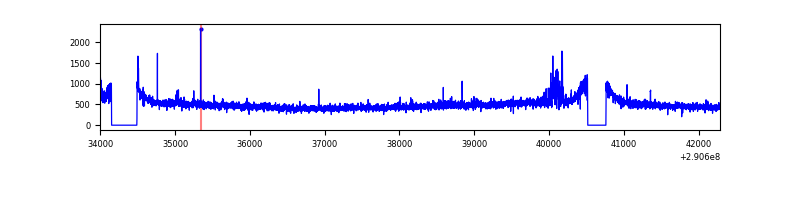

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8293 | 7710 | 196 | 196 | 2.36% | 2.54% |  |
| B | 8293 | 7710 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8293 | 7710 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8294 | 7711 | 5 | 5 | 0.06% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 1041627 | 5382.21 | 948 | 925 | 193.4 |
| A | 11 | 29 | 10575 | 49.91 | 948 | 925 | 193.4 |
| A | 13 | 254 | 10158 | 47.75 | 948 | 925 | 193.4 |
| B | 10 | 245 | 112382 | 595.74 | 953 | 927 | 187.1 |
| B | 12 | 111 | 23336 | 119.78 | 953 | 927 | 187.1 |
| B | 11 | 111 | 20405 | 104.11 | 953 | 927 | 187.1 |
| C | 14 | 238 | 140244 | 635.52 | 925 | 932 | 219.2 |
| C | 3 | 233 | 93116 | 420.53 | 925 | 932 | 219.2 |
| C | 6 | 96 | 28221 | 124.49 | 925 | 932 | 219.2 |
| D | 12 | 110 | 127117 | 544.39 | 941 | 912 | 231.8 |
| D | 1 | 52 | 71159 | 303.01 | 941 | 912 | 231.8 |
| D | 2 | 234 | 33399 | 140.13 | 941 | 912 | 231.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

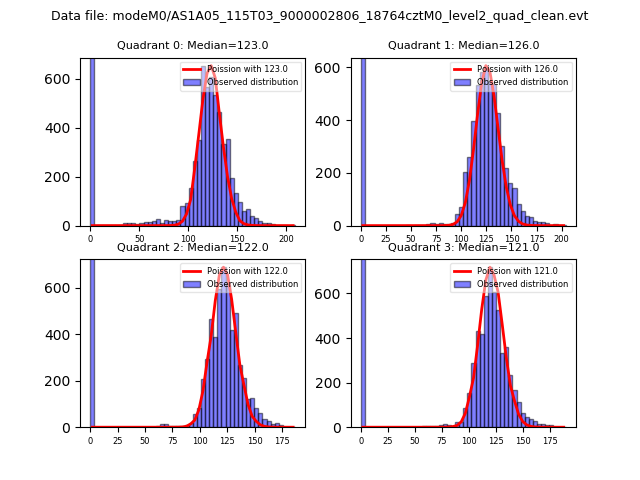

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

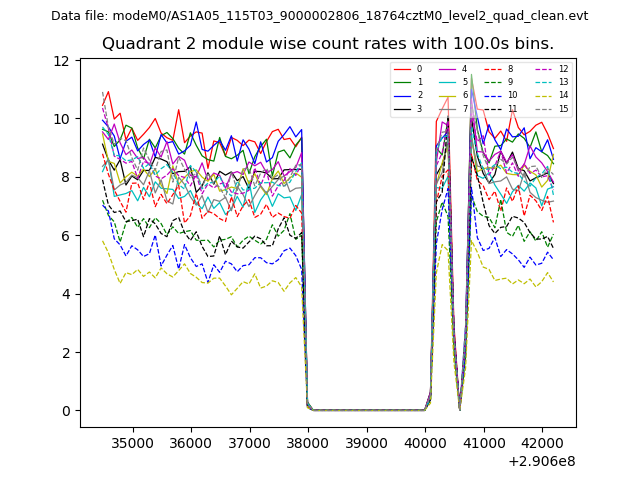

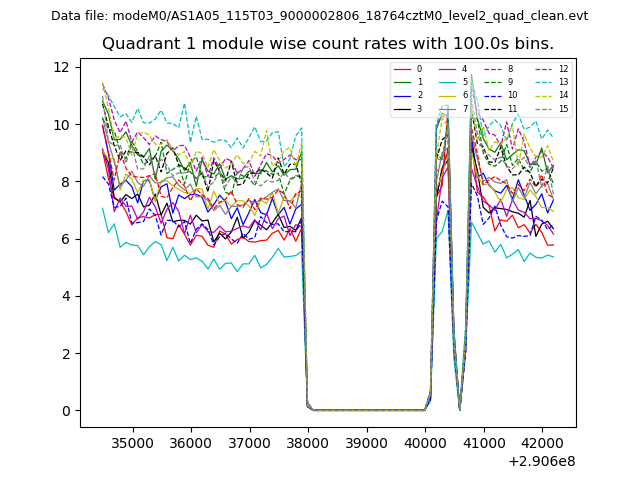

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

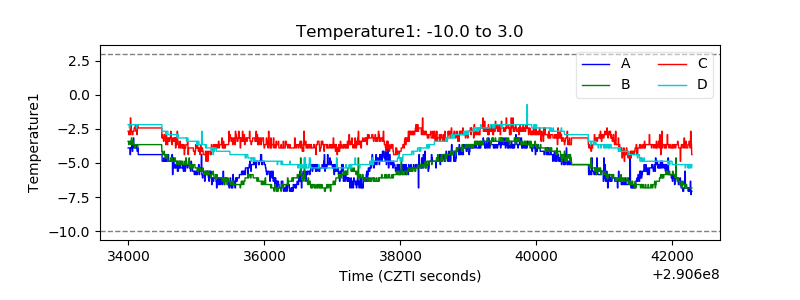

| Temperature 1 |  |

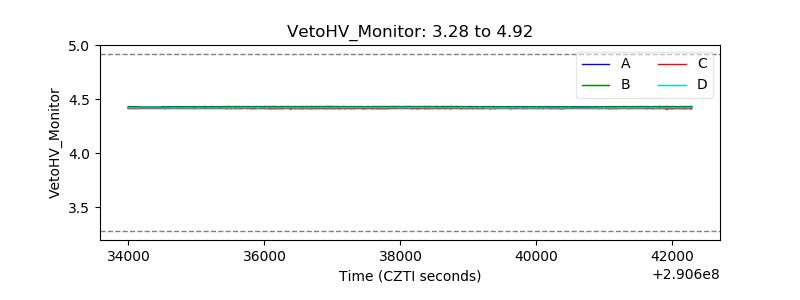

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

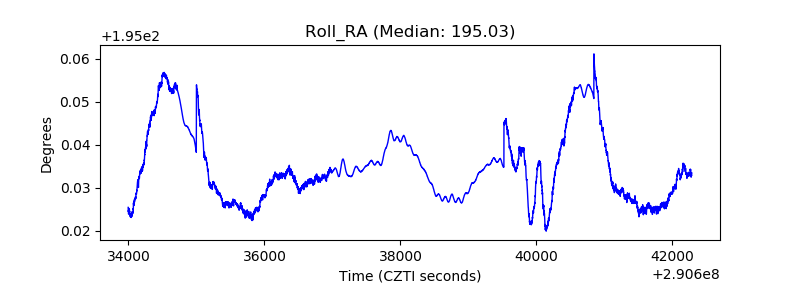

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
