| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_024T01_9000002810_18801cztM0_level2.evt | modeM0/AS1A05_024T01_9000002810_18801cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,142,853,120 | 194,742,720 |
| Size | 1.1 GB | 185.7 MB |
| Events in quadrant A | 7,557,430 | 1,233,629 |
| Events in quadrant B | 7,949,456 | 1,251,195 |
| Events in quadrant C | 8,694,818 | 1,201,537 |
| Events in quadrant D | 9,388,079 | 1,168,223 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 308 | 0 |
| B | 0 | 308 | 0 |
| C | 0 | 308 | 0 |
| D | 0 | 308 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31856 | 3 |
| B | 0 | 33032 | 3 |
| C | 0 | 35663 | 3 |
| D | 0 | 37679 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15123 | 150 | 0.991867% |
| B | 15124 | 172 | 1.137265% |
| C | 15124 | 273 | 1.805078% |
| D | 15123 | 576 | 3.808768% |

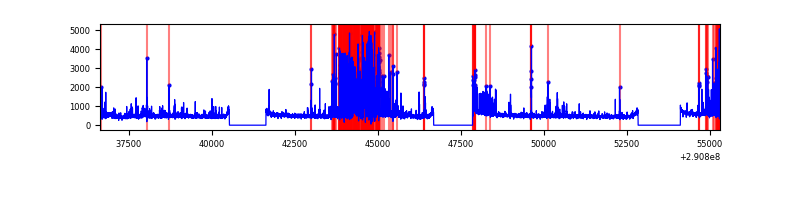

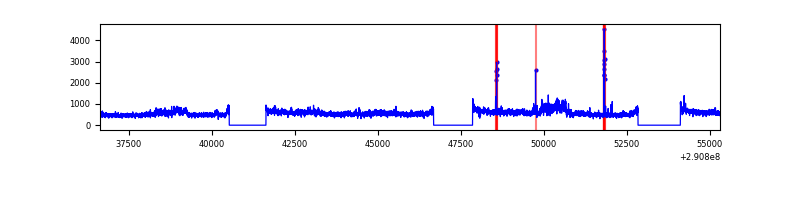

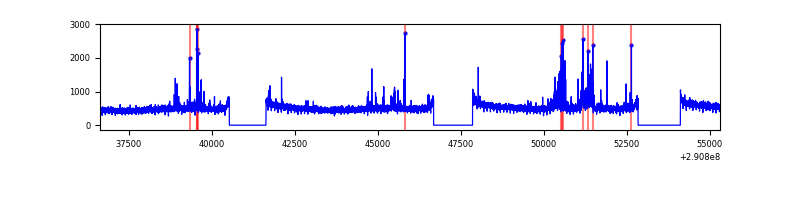

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18678 | 15126 | 4 | 4 | 0.02% | 0.03% |  |
| B | 18679 | 15127 | 12 | 12 | 0.06% | 0.08% |  |
| C | 18679 | 15127 | 15 | 15 | 0.08% | 0.10% |  |
| D | 18678 | 15126 | 325 | 325 | 1.74% | 2.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 24991 | 59.8 | 1954 | 1919 | 385.8 |
| A | 6 | 16 | 17063 | 39.25 | 1954 | 1919 | 385.8 |
| A | 0 | 226 | 17059 | 39.24 | 1954 | 1919 | 385.8 |
| B | 6 | 36 | 175443 | 482.6 | 1936 | 1886 | 359.6 |
| B | 7 | 220 | 104463 | 285.23 | 1936 | 1886 | 359.6 |
| B | 0 | 197 | 44693 | 119.03 | 1936 | 1886 | 359.6 |
| C | 3 | 233 | 947375 | 2179.82 | 1889 | 1909 | 433.7 |
| C | 14 | 238 | 295644 | 677.22 | 1889 | 1909 | 433.7 |
| C | 9 | 54 | 86628 | 195.32 | 1889 | 1909 | 433.7 |
| D | 5 | 222 | 1768365 | 3890.5 | 1895 | 1848 | 454.1 |
| D | 9 | 68 | 216870 | 473.55 | 1895 | 1848 | 454.1 |
| D | 1 | 52 | 150256 | 326.85 | 1895 | 1848 | 454.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

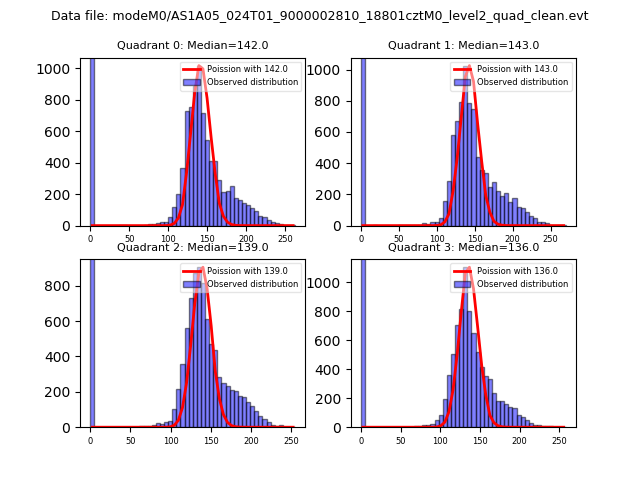

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

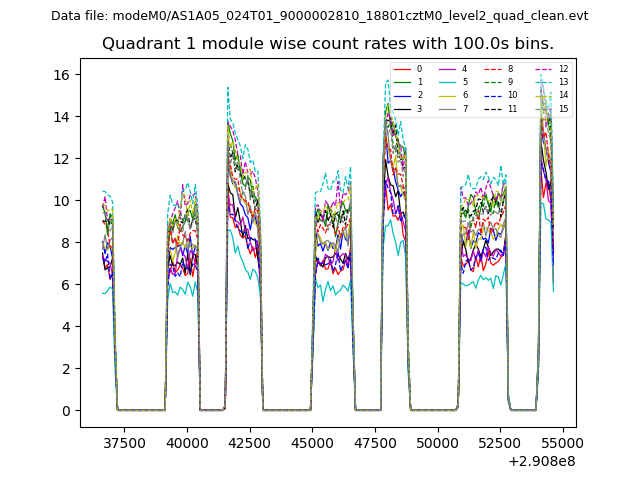

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

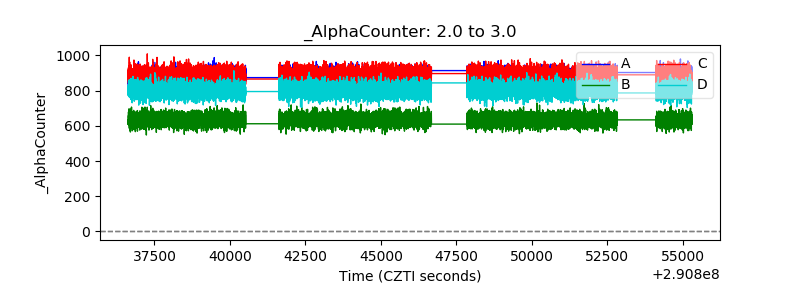

| Alpha Counter |  |

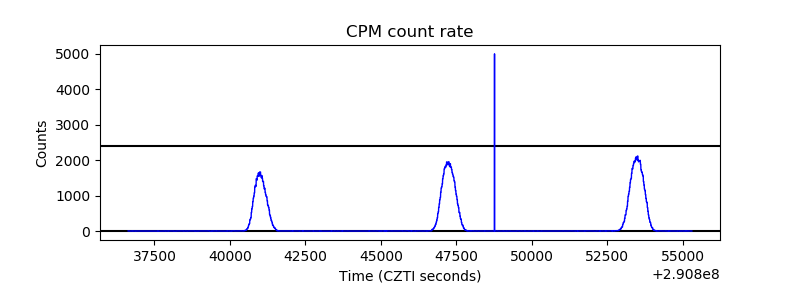

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

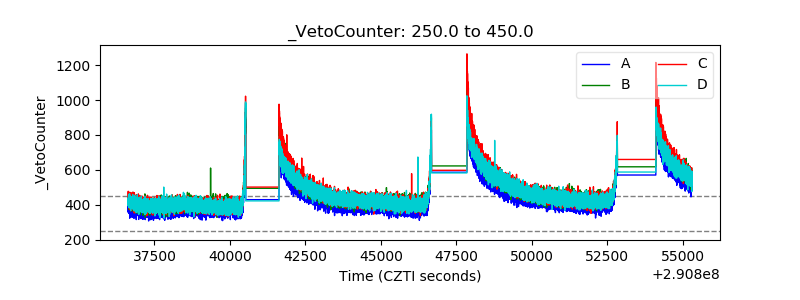

| Veto Counter |  |
