| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_024T01_9000002810_18803cztM0_level2.evt | modeM0/AS1A05_024T01_9000002810_18803cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,785,280 | 71,003,520 |
| Size | 461.4 MB | 67.7 MB |
| Events in quadrant A | 3,503,480 | 430,783 |
| Events in quadrant B | 3,715,201 | 434,224 |
| Events in quadrant C | 3,565,914 | 415,417 |
| Events in quadrant D | 3,417,319 | 407,920 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14397 | 2 |
| B | 0 | 15017 | 2 |
| C | 0 | 14608 | 2 |
| D | 0 | 14218 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6620 | 115 | 1.737160% |
| B | 6619 | 131 | 1.979151% |
| C | 6619 | 142 | 2.145339% |
| D | 6619 | 81 | 1.223750% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7905 | 6621 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7904 | 6620 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7904 | 6620 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7904 | 6620 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11320 | 57.94 | 907 | 891 | 180.0 |
| A | 0 | 226 | 7989 | 39.43 | 907 | 891 | 180.0 |
| A | 3 | 137 | 6466 | 30.97 | 907 | 891 | 180.0 |
| B | 6 | 36 | 98841 | 584.74 | 895 | 875 | 167.5 |
| B | 7 | 220 | 37979 | 221.47 | 895 | 875 | 167.5 |
| B | 0 | 197 | 30657 | 177.76 | 895 | 875 | 167.5 |
| C | 14 | 238 | 137998 | 693.8 | 861 | 868 | 197.6 |
| C | 3 | 233 | 59380 | 296.04 | 861 | 868 | 197.6 |
| C | 9 | 54 | 12004 | 56.34 | 861 | 868 | 197.6 |
| D | 2 | 234 | 30035 | 139.58 | 880 | 855 | 209.1 |
| D | 12 | 110 | 23577 | 108.69 | 880 | 855 | 209.1 |
| D | 2 | 120 | 22741 | 104.69 | 880 | 855 | 209.1 |

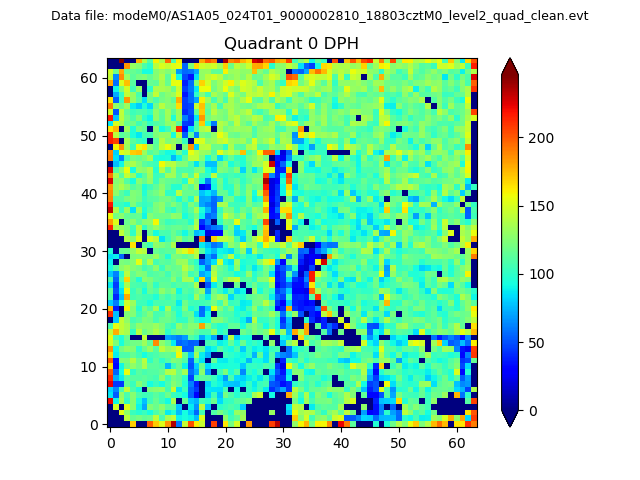

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

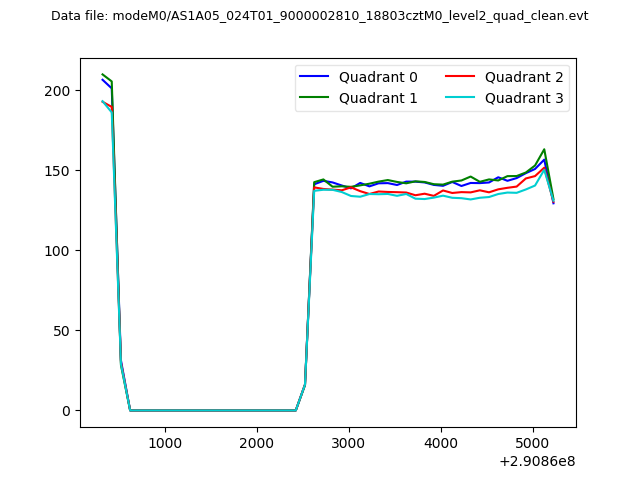

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

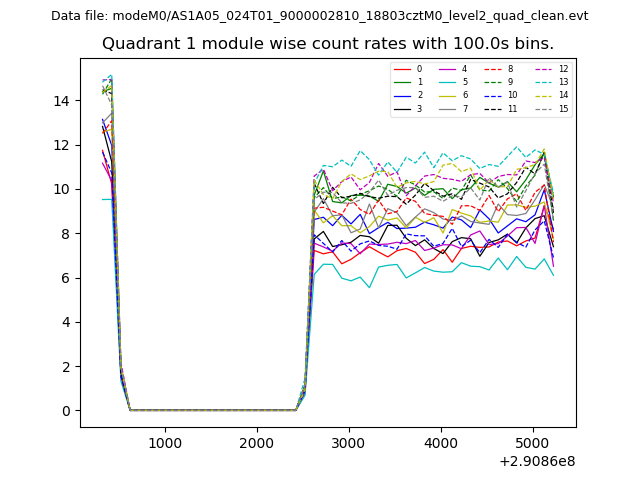

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

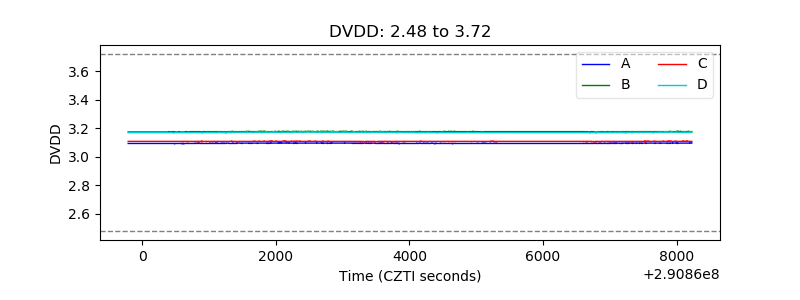

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

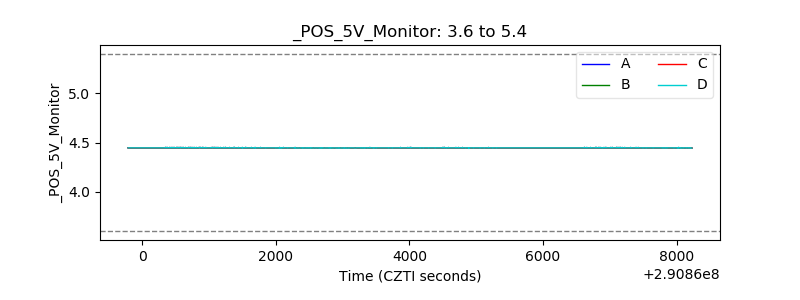

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

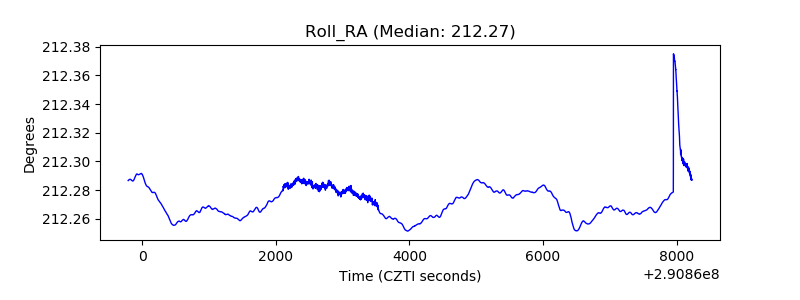

| _Roll_RA |  |

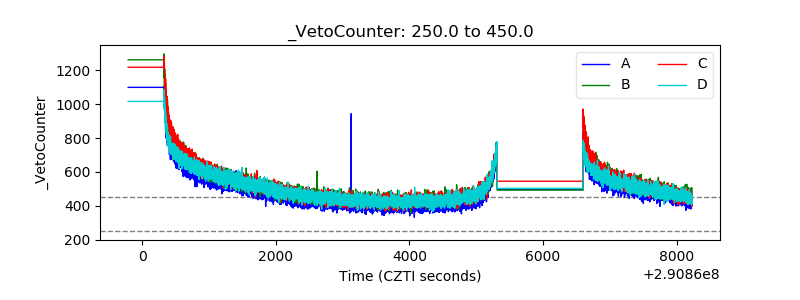

| Veto Counter |  |
