| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T03_9000002808_18772cztM0_level2.evt | modeM0/AS1A05_088T03_9000002808_18772cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,010,560 | 72,777,600 |
| Size | 392.0 MB | 69.4 MB |
| Events in quadrant A | 2,987,108 | 458,511 |
| Events in quadrant B | 3,023,781 | 467,237 |
| Events in quadrant C | 2,872,979 | 449,280 |
| Events in quadrant D | 3,186,240 | 440,319 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12149 | 1 |
| B | 0 | 12234 | 1 |
| C | 0 | 11687 | 1 |
| D | 0 | 12885 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5548 | 57 | 1.027397% |
| B | 5549 | 47 | 0.846999% |
| C | 5549 | 55 | 0.991170% |
| D | 5549 | 81 | 1.459722% |

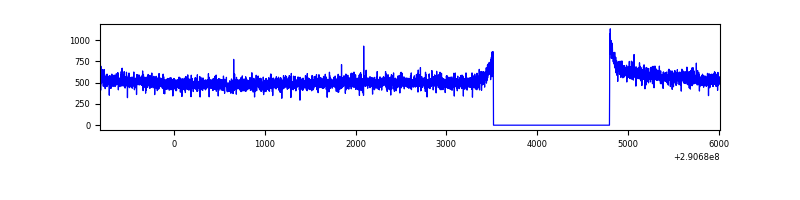

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6828 | 5549 | 9 | 9 | 0.13% | 0.16% |  |
| B | 6829 | 5550 | 7 | 7 | 0.10% | 0.13% |  |
| C | 6829 | 5550 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6829 | 5550 | 49 | 49 | 0.72% | 0.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 72729 | 481.03 | 746 | 732 | 149.7 |
| A | 15 | 192 | 14549 | 92.31 | 746 | 732 | 149.7 |
| A | 9 | 143 | 11746 | 73.59 | 746 | 732 | 149.7 |
| B | 7 | 220 | 83643 | 600.97 | 734 | 718 | 138.0 |
| B | 0 | 229 | 29019 | 205.1 | 734 | 718 | 138.0 |
| B | 0 | 197 | 17355 | 120.57 | 734 | 718 | 138.0 |
| C | 14 | 238 | 111973 | 687.09 | 704 | 710 | 161.9 |
| C | 3 | 233 | 15710 | 92.63 | 704 | 710 | 161.9 |
| C | 13 | 61 | 5064 | 26.89 | 704 | 710 | 161.9 |
| D | 1 | 52 | 354628 | 2044.03 | 723 | 704 | 173.1 |
| D | 7 | 223 | 42031 | 238.68 | 723 | 704 | 173.1 |
| D | 13 | 232 | 27476 | 154.61 | 723 | 704 | 173.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

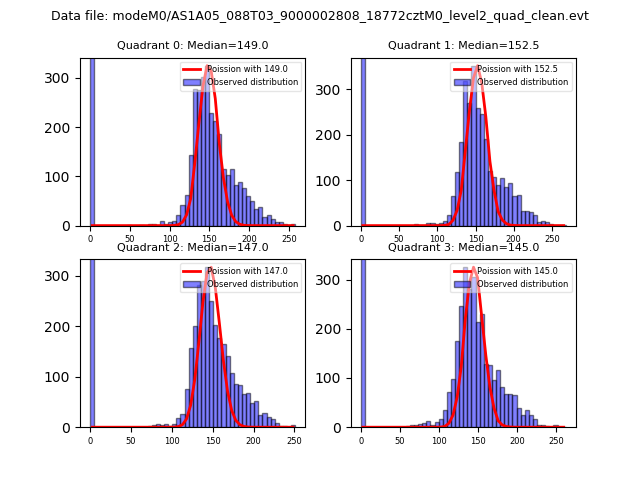

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

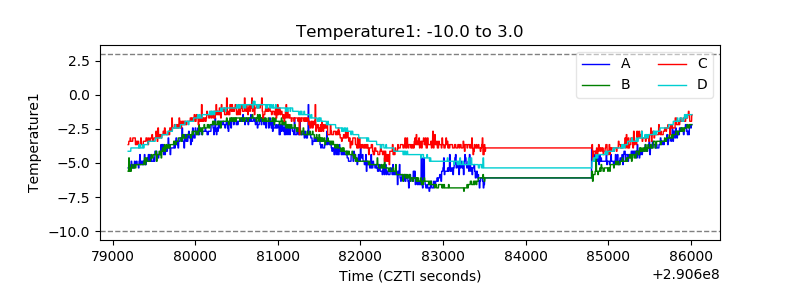

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

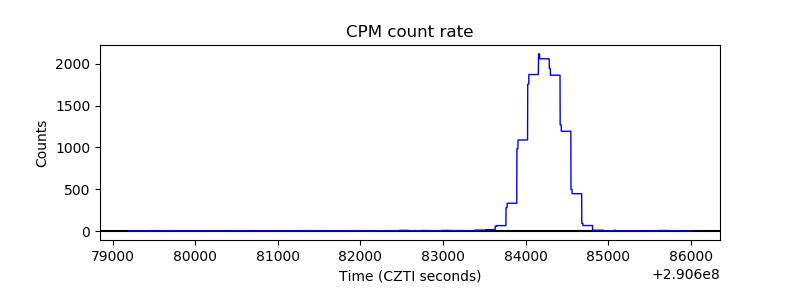

| _CPM_Rate |  |

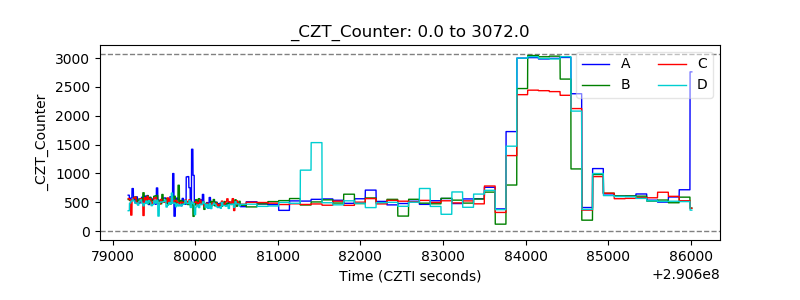

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

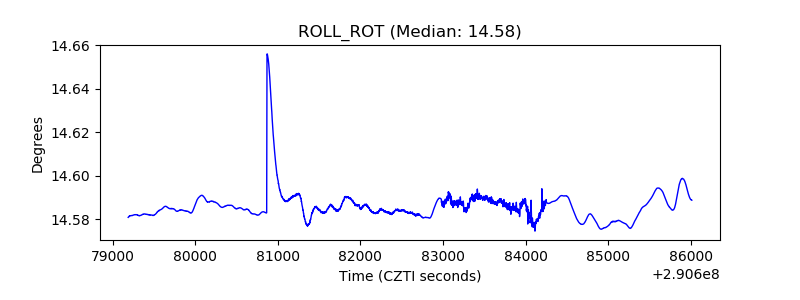

| _ROLL_ROT |  |

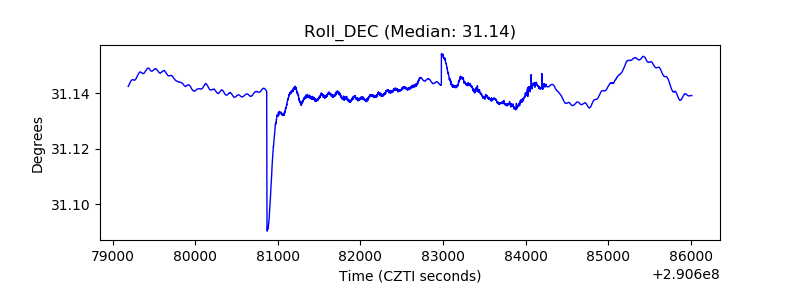

| _Roll_DEC |  |

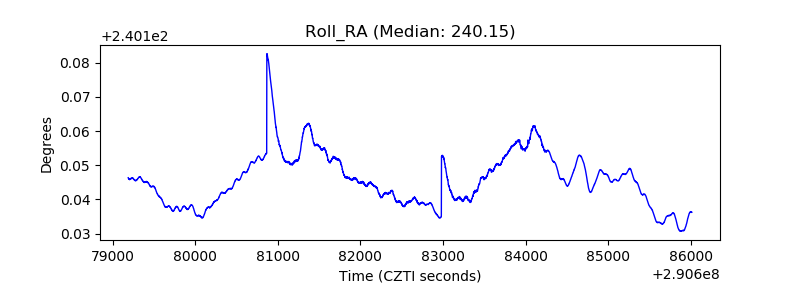

| _Roll_RA |  |
| Veto Counter |  |
