| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T03_9000002808_18777cztM0_level2.evt | modeM0/AS1A05_088T03_9000002808_18777cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,512,000 | 86,837,760 |
| Size | 499.3 MB | 82.8 MB |
| Events in quadrant A | 4,474,037 | 530,759 |
| Events in quadrant B | 3,693,898 | 549,499 |
| Events in quadrant C | 3,366,697 | 536,621 |
| Events in quadrant D | 3,846,071 | 526,470 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17747 | 1 |
| B | 0 | 15543 | 1 |
| C | 0 | 14428 | 1 |
| D | 0 | 16179 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6985 | 323 | 4.624195% |
| B | 6985 | 143 | 2.047244% |
| C | 6986 | 124 | 1.774979% |
| D | 6986 | 141 | 2.018322% |

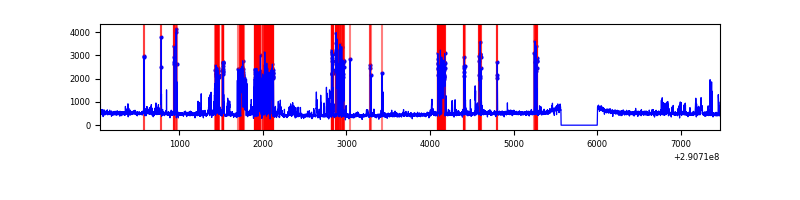

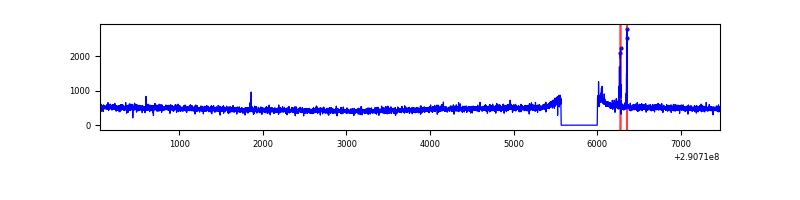

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7420 | 6986 | 278 | 278 | 3.75% | 3.98% |  |
| B | 7420 | 6986 | 27 | 27 | 0.36% | 0.39% |  |
| C | 7421 | 6987 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7421 | 6987 | 63 | 63 | 0.85% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 1200422 | 7010.02 | 845 | 826 | 171.1 |
| A | 11 | 29 | 11600 | 62.96 | 845 | 826 | 171.1 |
| A | 13 | 254 | 10719 | 57.81 | 845 | 826 | 171.1 |
| B | 7 | 220 | 182938 | 1114.84 | 847 | 826 | 163.4 |
| B | 0 | 197 | 55518 | 334.81 | 847 | 826 | 163.4 |
| B | 4 | 216 | 50281 | 302.75 | 847 | 826 | 163.4 |
| C | 14 | 238 | 128949 | 668.41 | 819 | 821 | 191.7 |
| C | 0 | 207 | 40442 | 206.69 | 819 | 821 | 191.7 |
| C | 13 | 61 | 5634 | 25.11 | 819 | 821 | 191.7 |
| D | 1 | 52 | 353282 | 1741.79 | 828 | 804 | 202.4 |
| D | 14 | 34 | 185996 | 915.14 | 828 | 804 | 202.4 |
| D | 9 | 1 | 96882 | 474.77 | 828 | 804 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

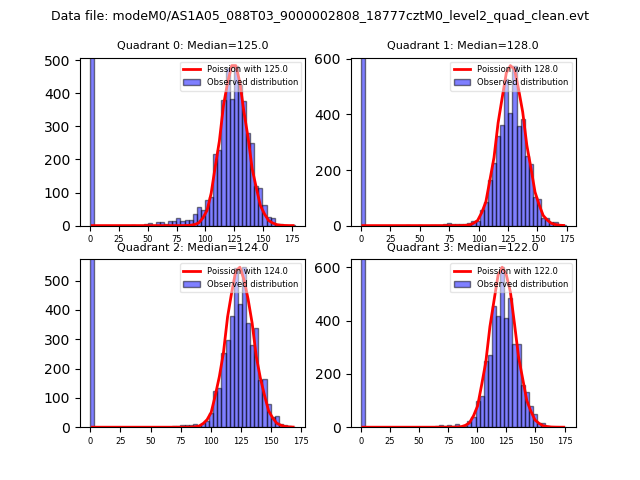

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

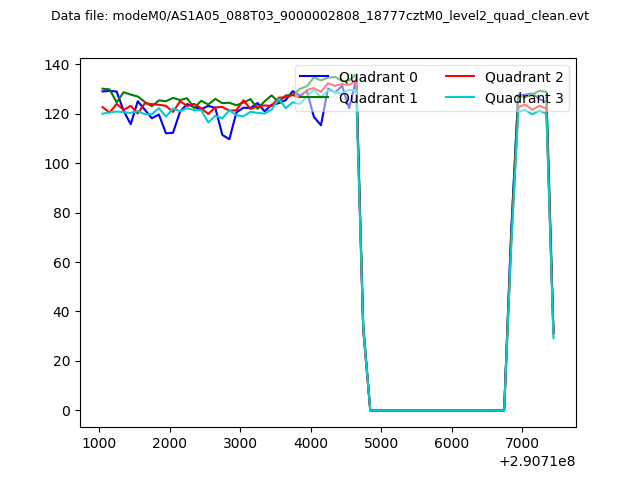

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

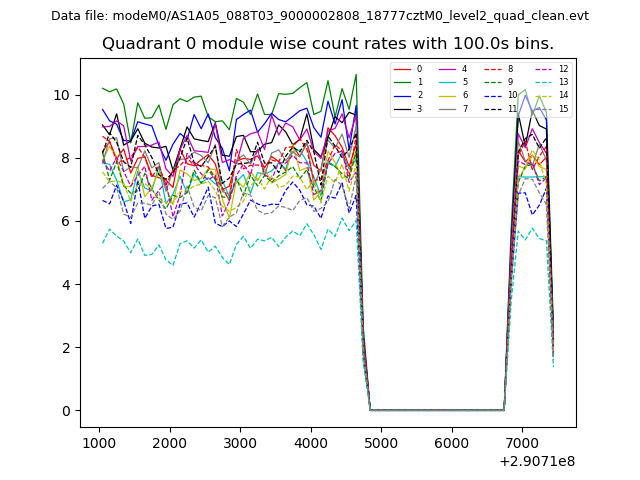

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

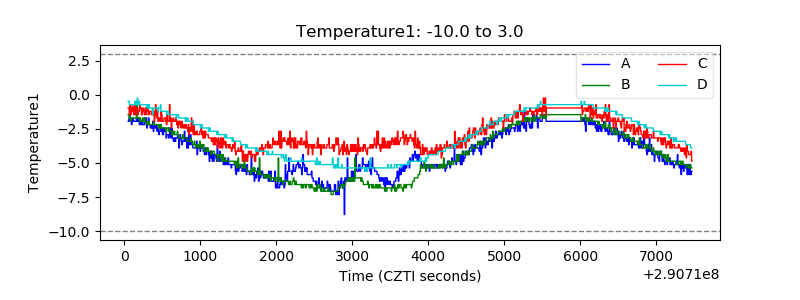

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

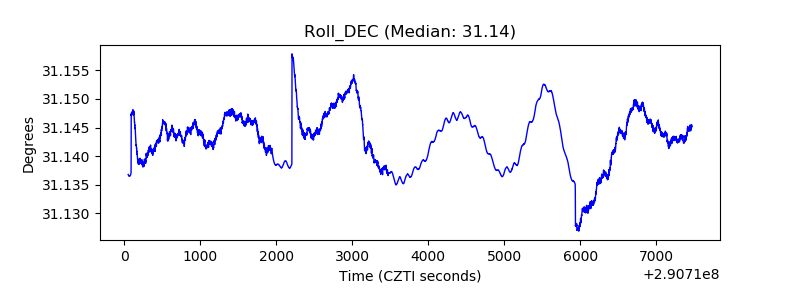

| _Roll_DEC |  |
| _Roll_RA |  |

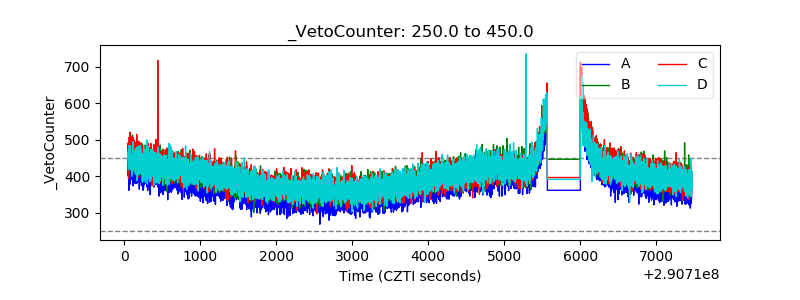

| Veto Counter |  |
