| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_173T01_9000002812_18826cztM0_level2.evt | modeM0/AS1A05_173T01_9000002812_18826cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,173,440 | 106,107,840 |
| Size | 539.9 MB | 101.2 MB |
| Events in quadrant A | 4,305,446 | 671,086 |
| Events in quadrant B | 4,265,980 | 681,569 |
| Events in quadrant C | 4,066,646 | 654,002 |
| Events in quadrant D | 3,954,153 | 638,950 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17979 | 2 |
| B | 0 | 17854 | 2 |
| C | 0 | 17116 | 2 |
| D | 0 | 17280 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8169 | 62 | 0.758967% |
| B | 8170 | 80 | 0.979192% |
| C | 8170 | 90 | 1.101591% |
| D | 8170 | 92 | 1.126071% |

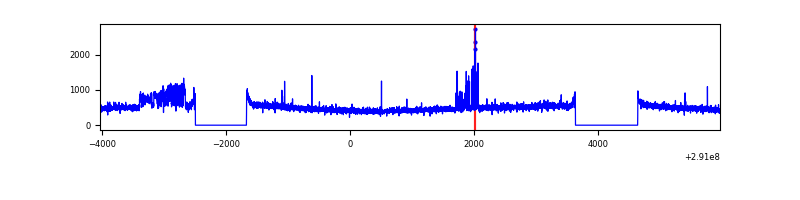

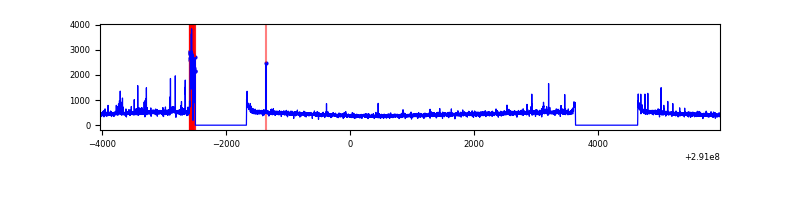

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9999 | 8171 | 3 | 3 | 0.03% | 0.04% |  |
| B | 10000 | 8172 | 5 | 5 | 0.05% | 0.06% |  |
| C | 10000 | 8172 | 5 | 5 | 0.05% | 0.06% |  |
| D | 10000 | 8172 | 50 | 50 | 0.50% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 4 | 228539 | 1102.58 | 1020 | 999 | 206.4 |
| A | 8 | 144 | 73064 | 349.2 | 1020 | 999 | 206.4 |
| A | 8 | 205 | 61651 | 293.9 | 1020 | 999 | 206.4 |
| B | 6 | 36 | 95569 | 484.54 | 1019 | 994 | 195.2 |
| B | 4 | 171 | 38850 | 193.95 | 1019 | 994 | 195.2 |
| B | 4 | 216 | 31901 | 158.35 | 1019 | 994 | 195.2 |
| C | 14 | 238 | 151003 | 654.56 | 975 | 982 | 229.2 |
| C | 3 | 233 | 46815 | 199.97 | 975 | 982 | 229.2 |
| C | 0 | 207 | 37280 | 158.37 | 975 | 982 | 229.2 |
| D | 15 | 0 | 164526 | 681.88 | 979 | 952 | 239.9 |
| D | 2 | 234 | 39546 | 160.89 | 979 | 952 | 239.9 |
| D | 7 | 38 | 23470 | 93.87 | 979 | 952 | 239.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

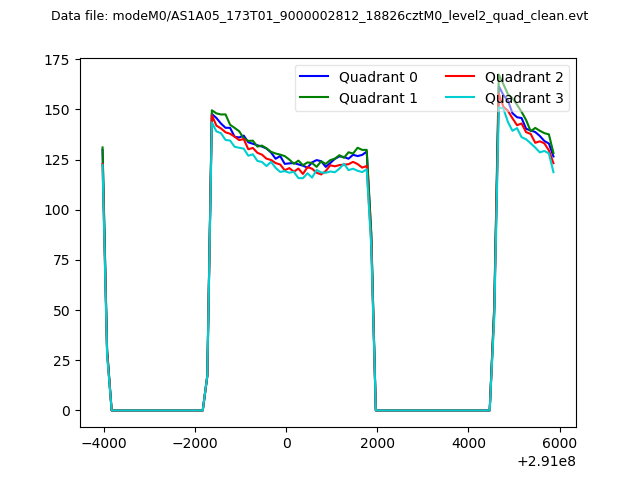

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

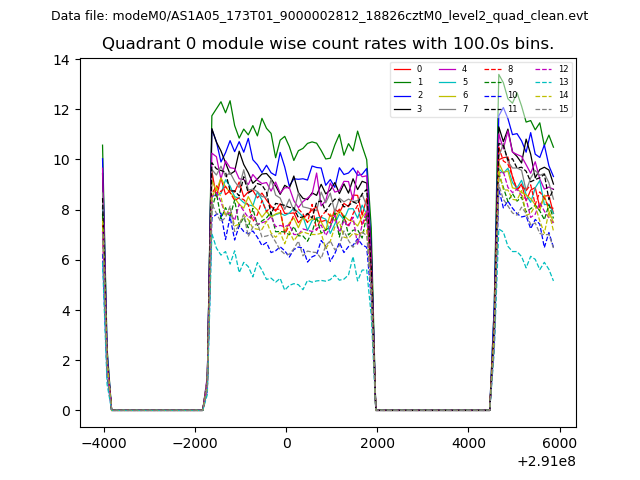

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

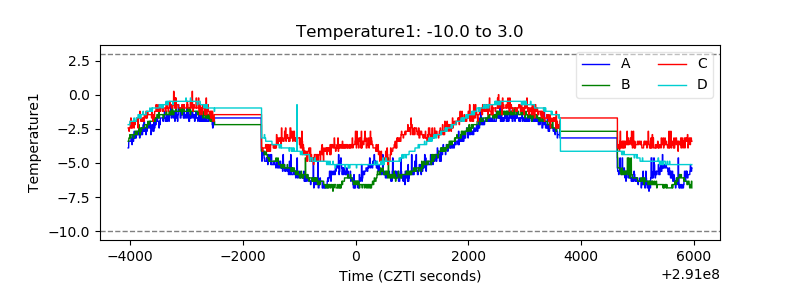

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

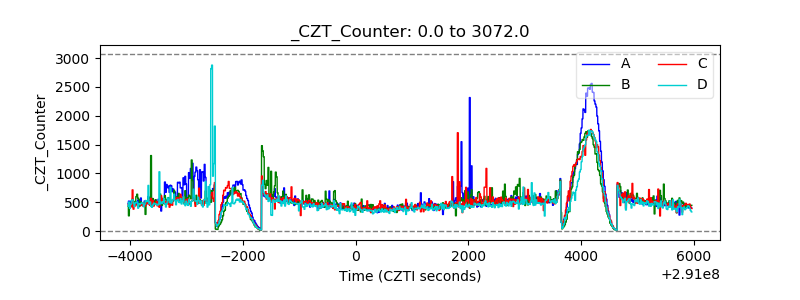

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

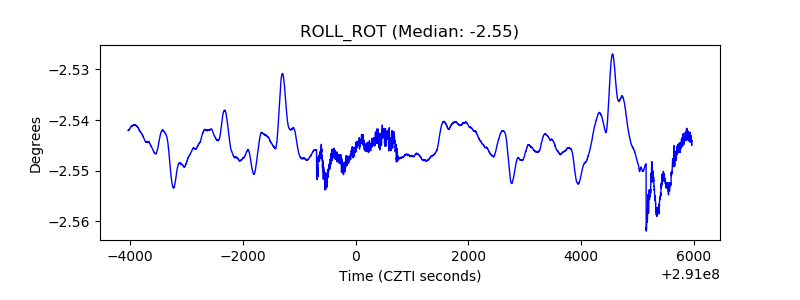

| _ROLL_ROT |  |
| _Roll_DEC |  |

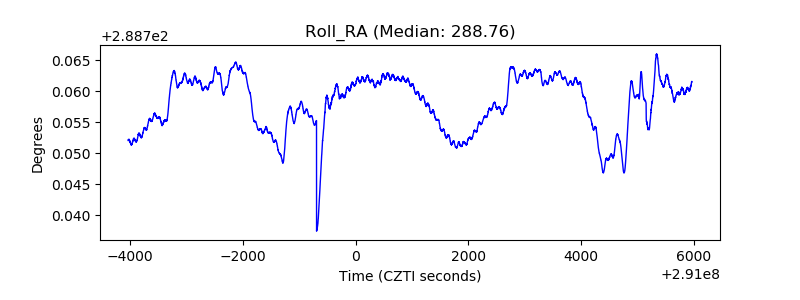

| _Roll_RA |  |
| Veto Counter |  |
