| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_173T01_9000002812_18828cztM0_level2.evt | modeM0/AS1A05_173T01_9000002812_18828cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,479,705,920 | 428,650,560 |
| Size | 2.3 GB | 408.8 MB |
| Events in quadrant A | 15,984,189 | 2,766,842 |
| Events in quadrant B | 17,108,769 | 2,779,477 |
| Events in quadrant C | 15,887,516 | 2,681,572 |
| Events in quadrant D | 23,961,579 | 2,559,471 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 650 | 0 |
| B | 0 | 650 | 0 |
| C | 0 | 650 | 0 |
| D | 0 | 650 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 67622 | 6 |
| B | 0 | 71356 | 6 |
| C | 0 | 67337 | 6 |
| D | 0 | 93398 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 31953 | 261 | 0.816825% |
| B | 31954 | 749 | 2.343994% |
| C | 31954 | 515 | 1.611692% |
| D | 31954 | 3364 | 10.527633% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 45130 | 31959 | 12 | 12 | 0.03% | 0.04% |  |
| B | 45131 | 31960 | 289 | 289 | 0.64% | 0.90% |  |
| C | 45131 | 31960 | 38 | 38 | 0.08% | 0.12% |  |
| D | 45131 | 31960 | 2879 | 2879 | 6.38% | 9.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 144 | 533697 | 674.06 | 3906 | 3821 | 786.1 |
| A | 15 | 174 | 187135 | 233.2 | 3906 | 3821 | 786.1 |
| A | 8 | 205 | 138855 | 171.78 | 3906 | 3821 | 786.1 |
| B | 4 | 251 | 591248 | 794.5 | 3886 | 3794 | 739.4 |
| B | 7 | 220 | 454412 | 609.44 | 3886 | 3794 | 739.4 |
| B | 6 | 36 | 193506 | 256.58 | 3886 | 3794 | 739.4 |
| C | 14 | 238 | 579217 | 658.05 | 3742 | 3772 | 874.5 |
| C | 0 | 207 | 267825 | 301.96 | 3742 | 3772 | 874.5 |
| C | 9 | 54 | 209920 | 235.74 | 3742 | 3772 | 874.5 |
| D | 12 | 110 | 6838205 | 7747.35 | 3605 | 3499 | 882.2 |
| D | 7 | 38 | 2611977 | 2956.79 | 3605 | 3499 | 882.2 |
| D | 1 | 52 | 557447 | 627.92 | 3605 | 3499 | 882.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

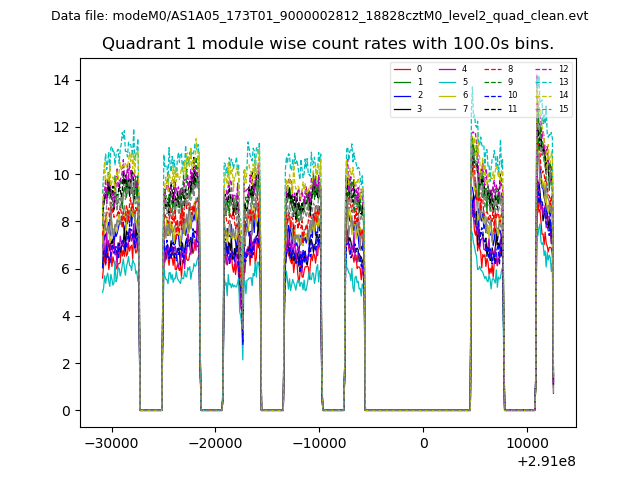

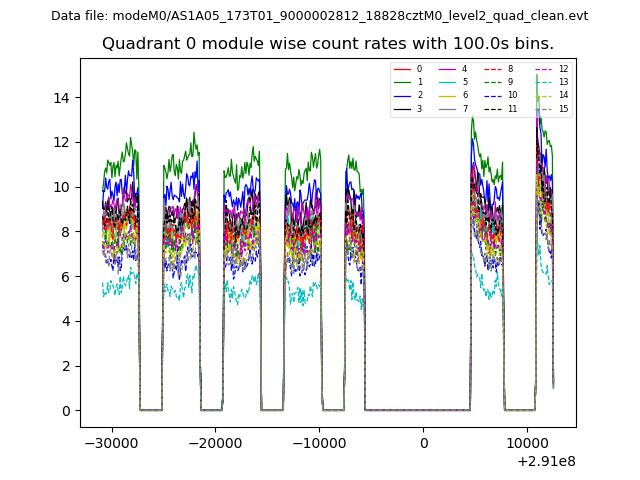

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

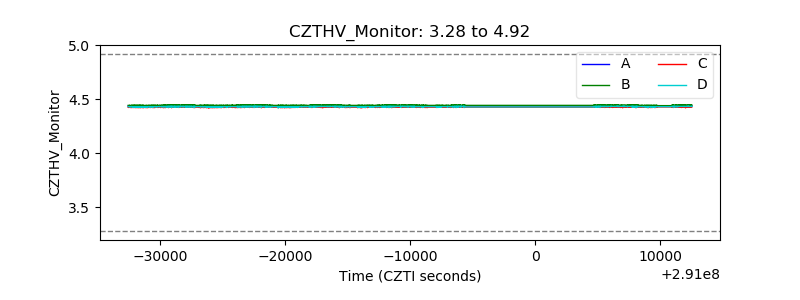

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

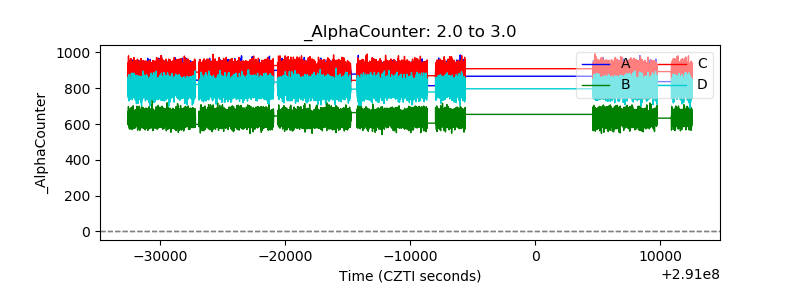

| Alpha Counter |  |

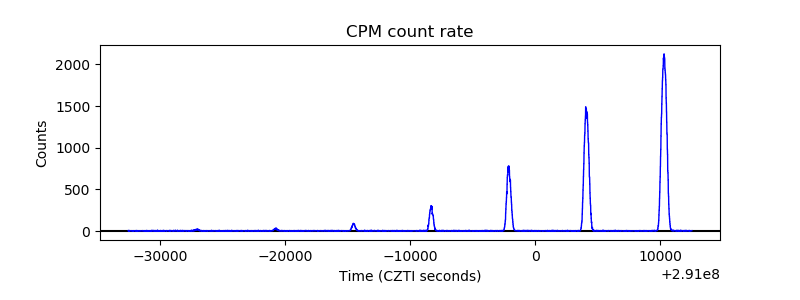

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
