| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_173T01_9000002812_18834cztM0_level2.evt | modeM0/AS1A05_173T01_9000002812_18834cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,134,720 | 80,971,200 |
| Size | 524.6 MB | 77.2 MB |
| Events in quadrant A | 3,576,795 | 503,055 |
| Events in quadrant B | 3,737,461 | 509,916 |
| Events in quadrant C | 3,587,652 | 485,690 |
| Events in quadrant D | 5,272,208 | 453,499 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14914 | 2 |
| B | 0 | 15292 | 2 |
| C | 0 | 14925 | 2 |
| D | 0 | 20305 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7171 | 110 | 1.533956% |
| B | 7171 | 116 | 1.617627% |
| C | 7171 | 125 | 1.743132% |
| D | 7171 | 466 | 6.498396% |

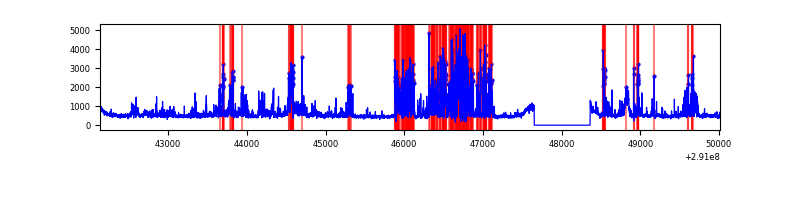

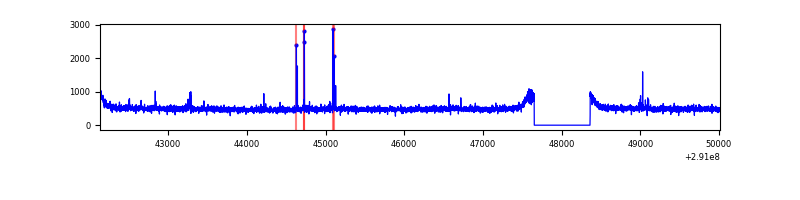

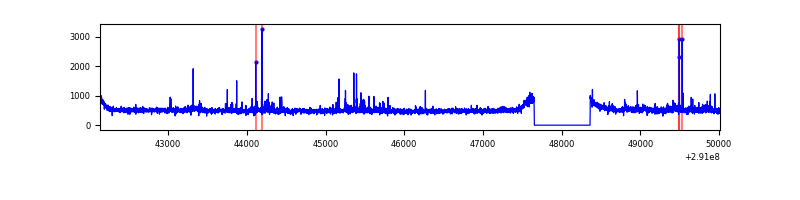

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7881 | 7172 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7881 | 7172 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7881 | 7172 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7881 | 7172 | 324 | 324 | 4.11% | 4.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 17160 | 86.63 | 918 | 899 | 187.7 |
| A | 13 | 254 | 10913 | 53.35 | 918 | 899 | 187.7 |
| A | 14 | 4 | 10111 | 49.08 | 918 | 899 | 187.7 |
| B | 4 | 216 | 40903 | 227.43 | 910 | 888 | 175.9 |
| B | 0 | 229 | 38556 | 214.09 | 910 | 888 | 175.9 |
| B | 7 | 220 | 25729 | 141.19 | 910 | 888 | 175.9 |
| C | 14 | 238 | 134524 | 654.76 | 871 | 878 | 204.1 |
| C | 0 | 207 | 43915 | 210.85 | 871 | 878 | 204.1 |
| C | 5 | 112 | 7339 | 31.65 | 871 | 878 | 204.1 |
| D | 7 | 238 | 1709252 | 7983.84 | 872 | 845 | 214.0 |
| D | 1 | 52 | 130852 | 607.56 | 872 | 845 | 214.0 |
| D | 7 | 38 | 89983 | 416.57 | 872 | 845 | 214.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

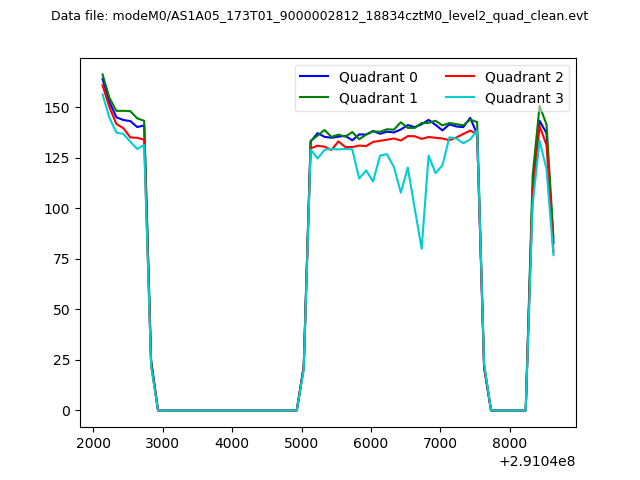

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

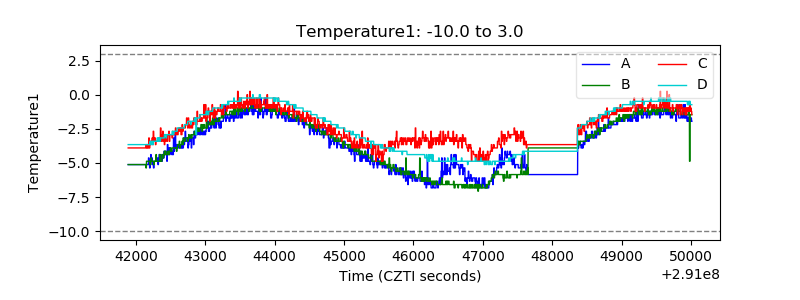

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

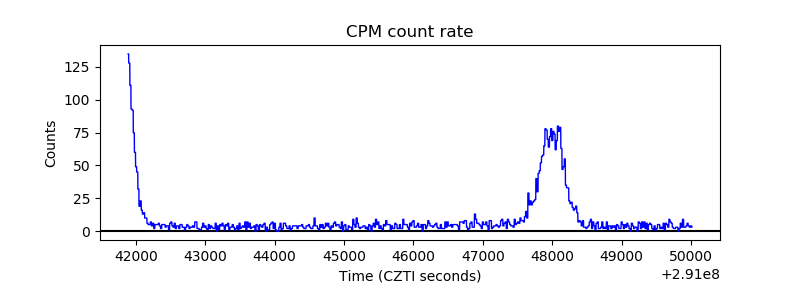

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

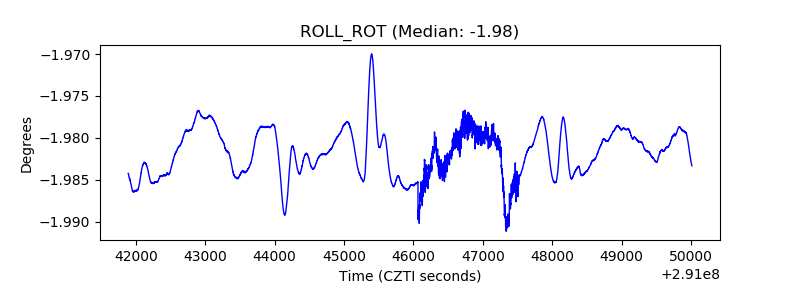

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
