| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_173T01_9000002812_18840cztM0_level2.evt | modeM0/AS1A05_173T01_9000002812_18840cztM0_level2_quad_clean.evt |
| Size (bytes) | 364,916,160 | 71,095,680 |
| Size | 348.0 MB | 67.8 MB |
| Events in quadrant A | 2,455,962 | 454,548 |
| Events in quadrant B | 2,940,412 | 459,615 |
| Events in quadrant C | 2,478,617 | 445,058 |
| Events in quadrant D | 2,822,138 | 428,887 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10707 | 0 |
| B | 0 | 12189 | 0 |
| C | 0 | 10767 | 0 |
| D | 0 | 11999 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5206 | 11 | 0.211295% |
| B | 5206 | 120 | 2.305033% |
| C | 5206 | 44 | 0.845179% |
| D | 5206 | 28 | 0.537841% |

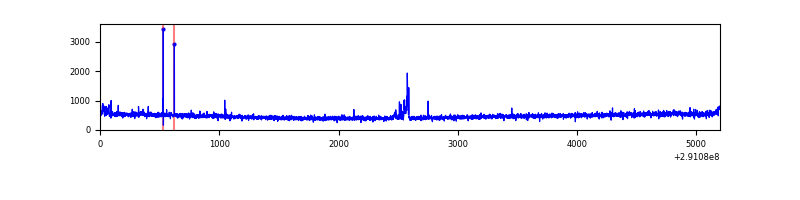

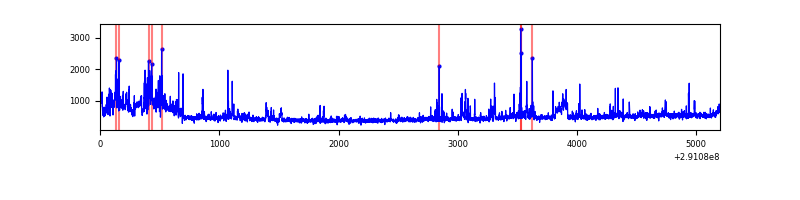

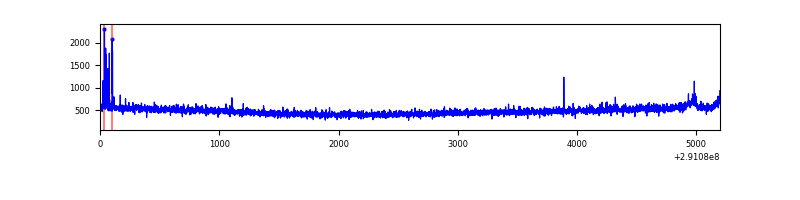

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5206 | 5206 | 2 | 2 | 0.04% | 0.04% |  |
| B | 5206 | 5206 | 23 | 23 | 0.44% | 0.44% |  |
| C | 5206 | 5206 | 2 | 2 | 0.04% | 0.04% |  |
| D | 5206 | 5206 | 9 | 9 | 0.17% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 144 | 21083 | 161.28 | 622 | 609 | 126.9 |
| A | 9 | 143 | 20759 | 158.73 | 622 | 609 | 126.9 |
| A | 15 | 174 | 9706 | 71.66 | 622 | 609 | 126.9 |
| B | 10 | 245 | 366862 | 3006.67 | 620 | 604 | 121.8 |
| B | 0 | 229 | 71248 | 579.93 | 620 | 604 | 121.8 |
| B | 6 | 36 | 15279 | 120.47 | 620 | 604 | 121.8 |
| C | 14 | 238 | 91630 | 646.71 | 596 | 601 | 140.8 |
| C | 0 | 207 | 35724 | 249.53 | 596 | 601 | 140.8 |
| C | 3 | 233 | 23026 | 159.32 | 596 | 601 | 140.8 |
| D | 9 | 68 | 196490 | 1326.31 | 600 | 582 | 147.7 |
| D | 1 | 52 | 159321 | 1074.68 | 600 | 582 | 147.7 |
| D | 1 | 20 | 52490 | 351.42 | 600 | 582 | 147.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

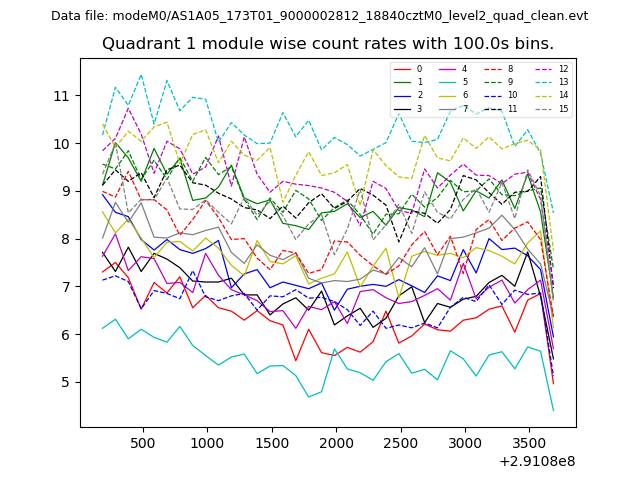

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

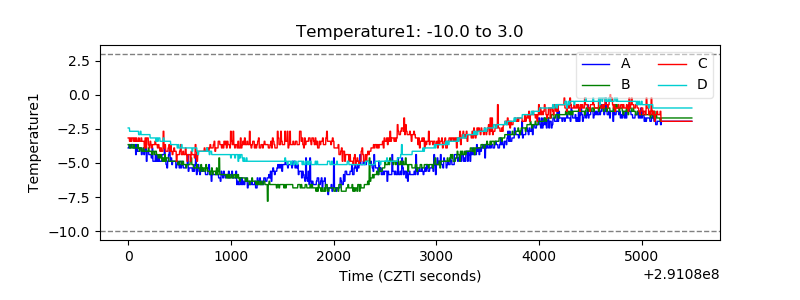

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

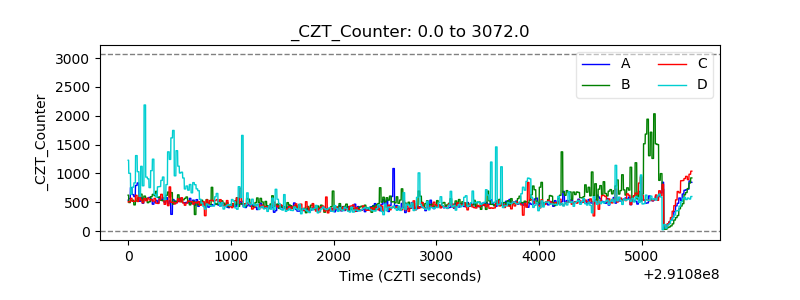

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

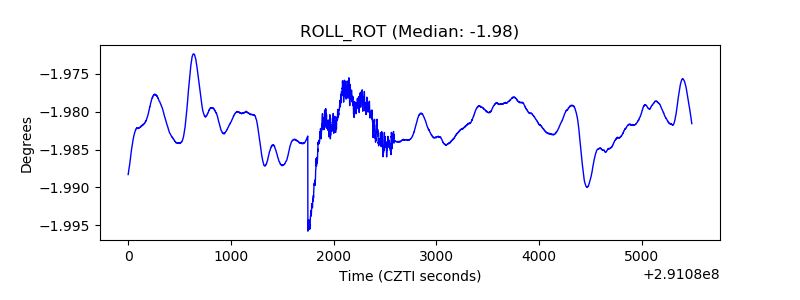

| _ROLL_ROT |  |
| _Roll_DEC |  |

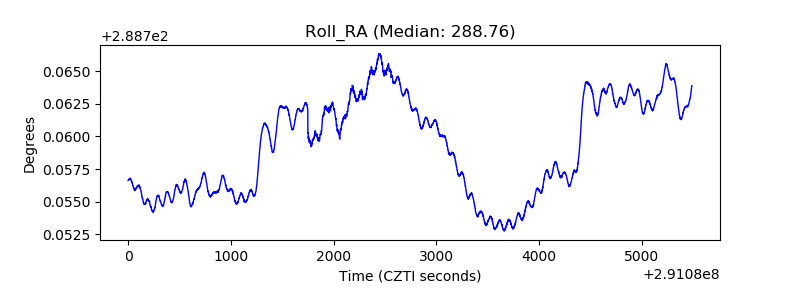

| _Roll_RA |  |
| Veto Counter |  |
