| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_194T13_9000002814_18843cztM0_level2.evt | modeM0/AS1A05_194T13_9000002814_18843cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,717,440 | 75,507,840 |
| Size | 476.6 MB | 72.0 MB |
| Events in quadrant A | 3,174,788 | 475,765 |
| Events in quadrant B | 3,961,020 | 480,329 |
| Events in quadrant C | 3,262,526 | 452,875 |
| Events in quadrant D | 4,306,605 | 435,873 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13235 | 2 |
| B | 0 | 16139 | 2 |
| C | 0 | 13563 | 3 |
| D | 0 | 17035 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6320 | 22 | 0.348101% |
| B | 6321 | 65 | 1.028318% |
| C | 6320 | 43 | 0.680380% |
| D | 6320 | 259 | 4.098101% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8591 | 6322 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8592 | 6323 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8591 | 6322 | 3 | 3 | 0.03% | 0.05% |  |
| D | 8591 | 6322 | 186 | 186 | 2.17% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 9806 | 55.74 | 818 | 804 | 161.5 |
| A | 13 | 254 | 9598 | 54.45 | 818 | 804 | 161.5 |
| A | 0 | 226 | 7290 | 40.16 | 818 | 804 | 161.5 |
| B | 10 | 245 | 653922 | 4202.99 | 820 | 802 | 155.4 |
| B | 7 | 220 | 38433 | 242.16 | 820 | 802 | 155.4 |
| B | 0 | 229 | 20815 | 128.79 | 820 | 802 | 155.4 |
| C | 14 | 238 | 121649 | 662.89 | 778 | 786 | 182.3 |
| C | 5 | 112 | 43766 | 235.73 | 778 | 786 | 182.3 |
| C | 3 | 233 | 25434 | 135.18 | 778 | 786 | 182.3 |
| D | 1 | 20 | 699863 | 3710.2 | 774 | 753 | 188.4 |
| D | 1 | 52 | 490512 | 2599.17 | 774 | 753 | 188.4 |
| D | 12 | 1 | 68784 | 361.04 | 774 | 753 | 188.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

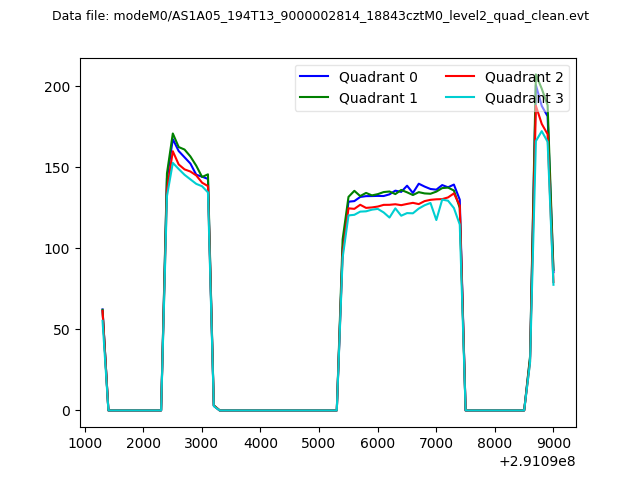

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

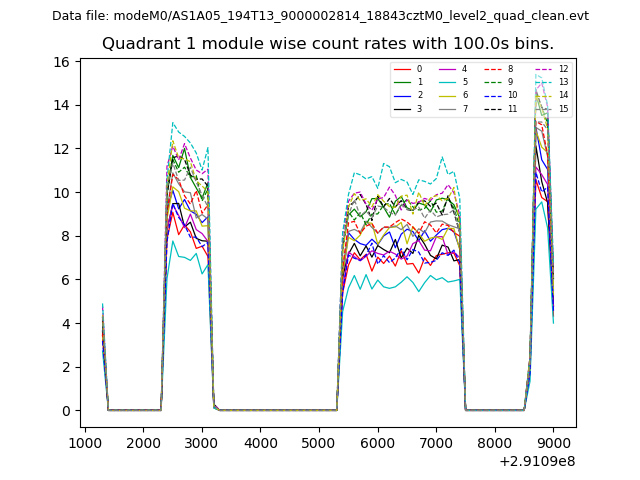

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

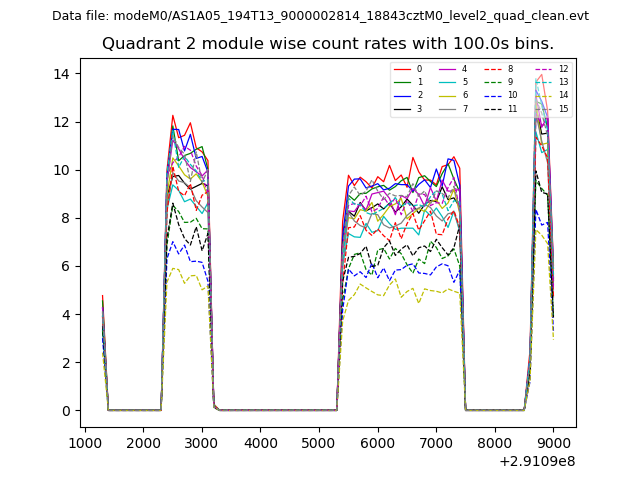

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

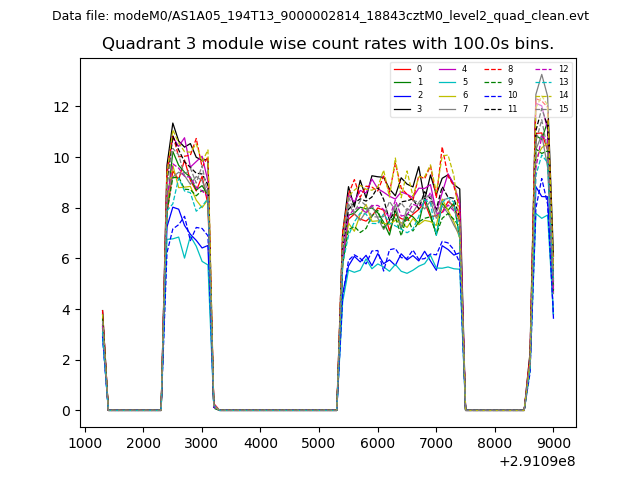

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

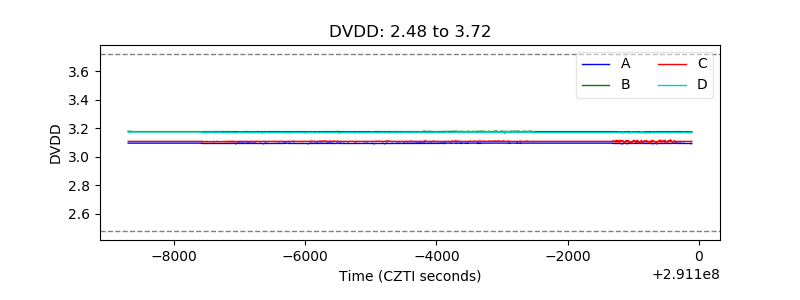

| D_VDD |  |

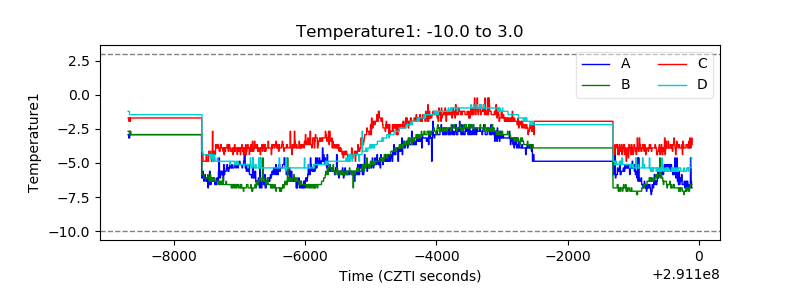

| Temperature 1 |  |

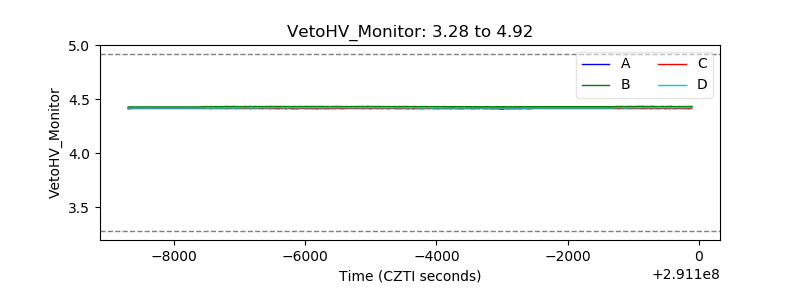

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

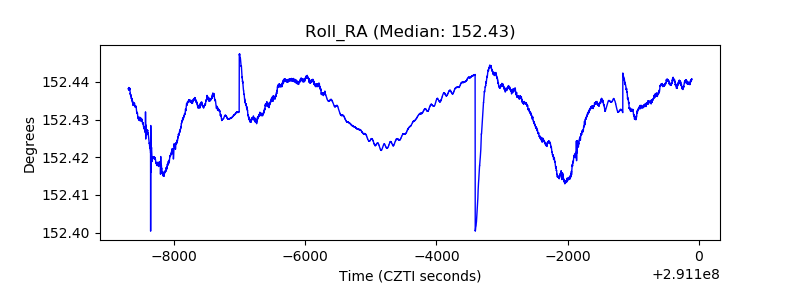

| _Roll_RA |  |
| Veto Counter |  |
