| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_094T01_9000002816_18850cztM0_level2.evt | modeM0/AS1T03_094T01_9000002816_18850cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,110,080 | 82,563,840 |
| Size | 531.3 MB | 78.7 MB |
| Events in quadrant A | 3,826,784 | 499,954 |
| Events in quadrant B | 4,122,847 | 505,720 |
| Events in quadrant C | 4,005,683 | 485,058 |
| Events in quadrant D | 4,392,648 | 471,915 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16197 | 2 |
| B | 0 | 16927 | 2 |
| C | 0 | 16451 | 2 |
| D | 0 | 18065 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7726 | 156 | 2.019156% |
| B | 7726 | 193 | 2.498059% |
| C | 7726 | 239 | 3.093451% |
| D | 7726 | 266 | 3.442920% |

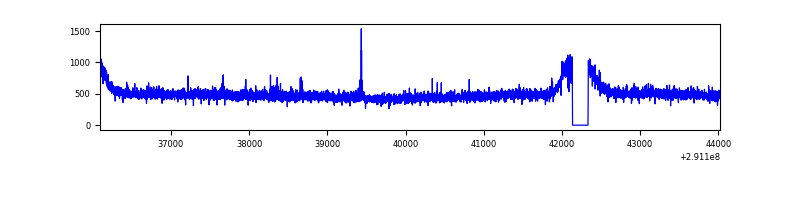

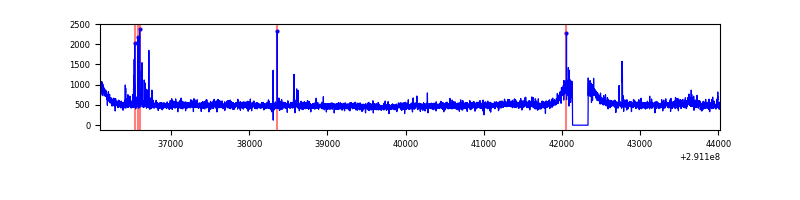

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

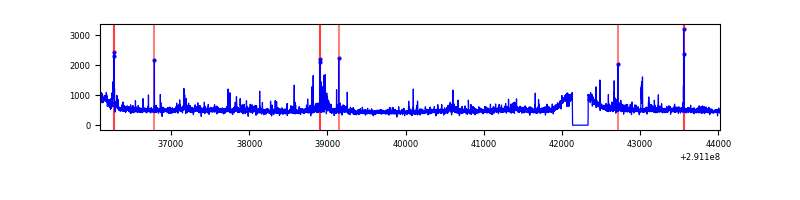

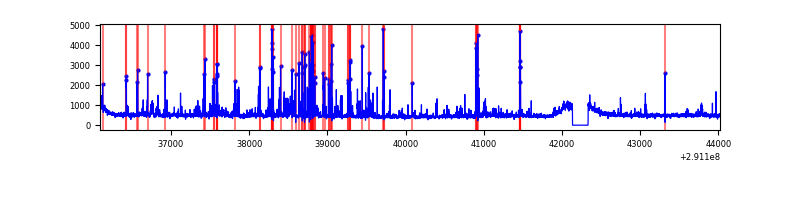

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7926 | 7727 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7926 | 7727 | 9 | 9 | 0.11% | 0.12% |  |
| C | 7926 | 7727 | 5 | 5 | 0.06% | 0.06% |  |
| D | 7926 | 7727 | 78 | 78 | 0.98% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 4 | 17512 | 82.36 | 984 | 961 | 200.9 |
| A | 13 | 254 | 13257 | 61.19 | 984 | 961 | 200.9 |
| A | 0 | 226 | 8724 | 38.63 | 984 | 961 | 200.9 |
| B | 10 | 245 | 130482 | 688.07 | 976 | 952 | 188.3 |
| B | 7 | 220 | 33769 | 174.33 | 976 | 952 | 188.3 |
| B | 4 | 216 | 29992 | 154.26 | 976 | 952 | 188.3 |
| C | 14 | 238 | 143854 | 649.56 | 936 | 941 | 220.0 |
| C | 3 | 233 | 134754 | 608.2 | 936 | 941 | 220.0 |
| C | 0 | 207 | 48717 | 217.15 | 936 | 941 | 220.0 |
| D | 12 | 1 | 424026 | 1814.25 | 951 | 923 | 233.2 |
| D | 1 | 52 | 187762 | 801.16 | 951 | 923 | 233.2 |
| D | 1 | 20 | 71156 | 301.16 | 951 | 923 | 233.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

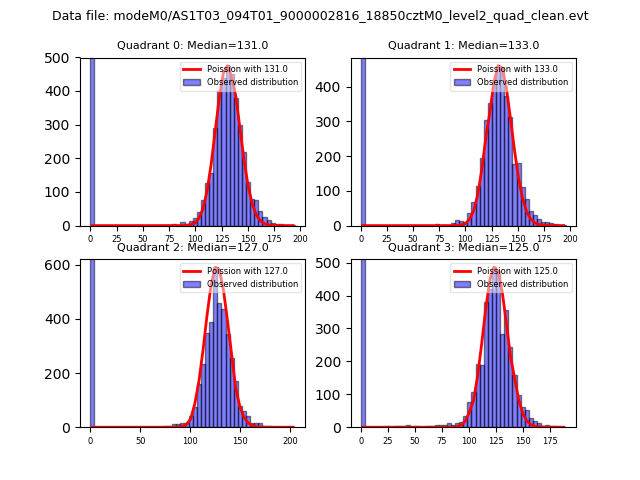

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

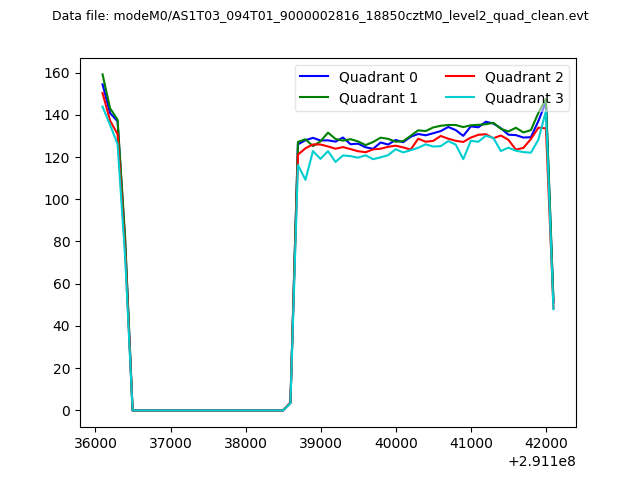

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

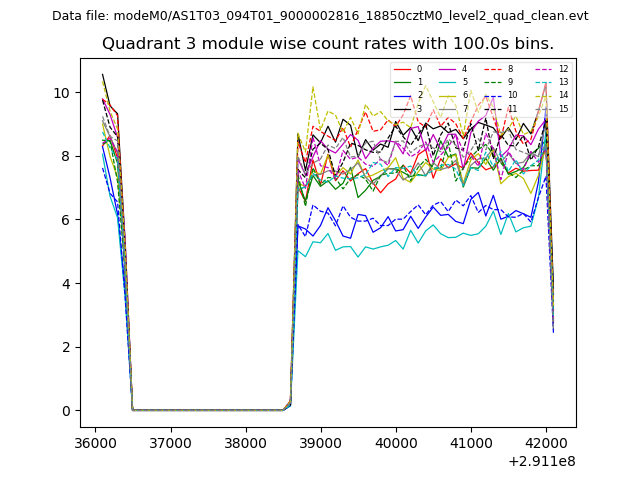

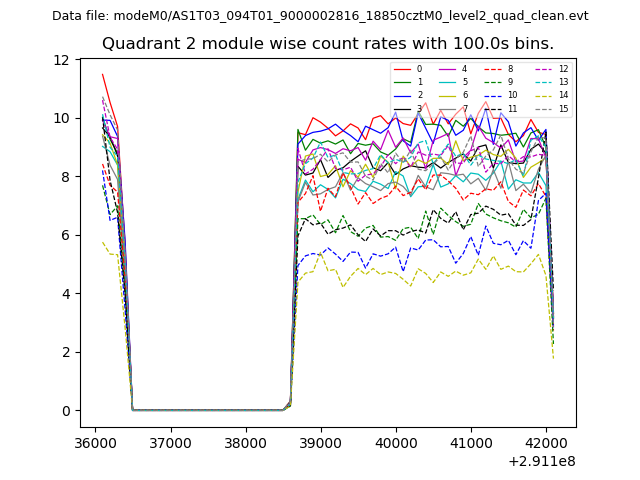

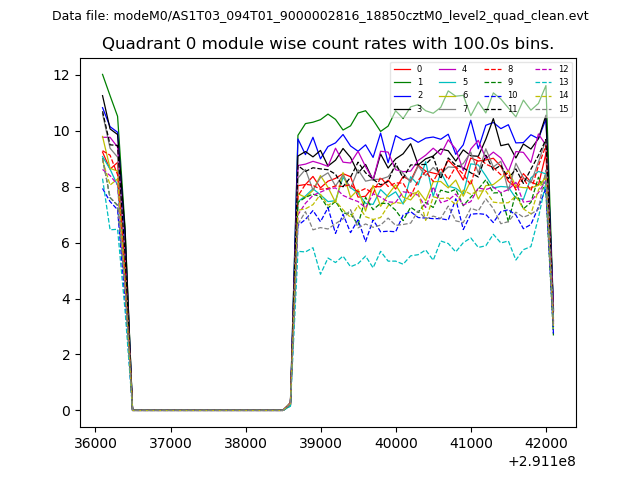

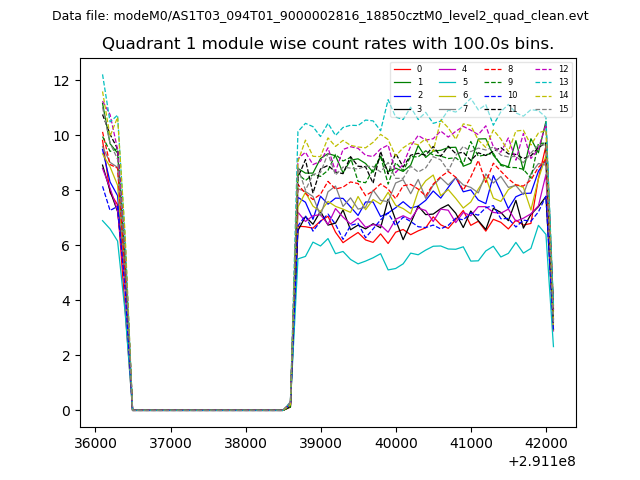

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

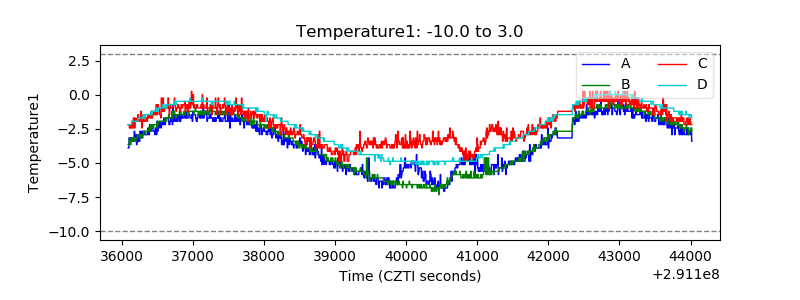

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

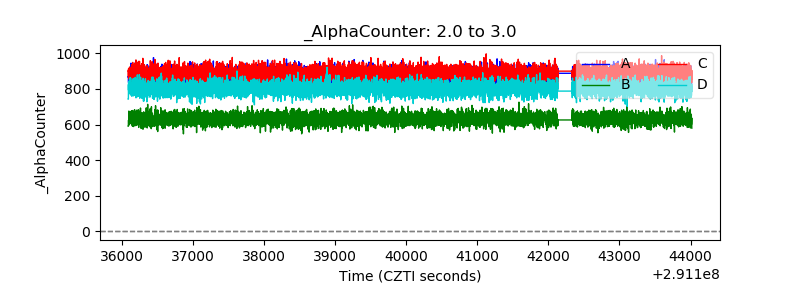

| Alpha Counter |  |

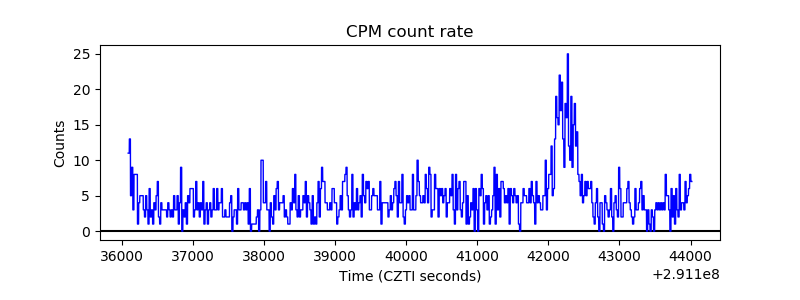

| _CPM_Rate |  |

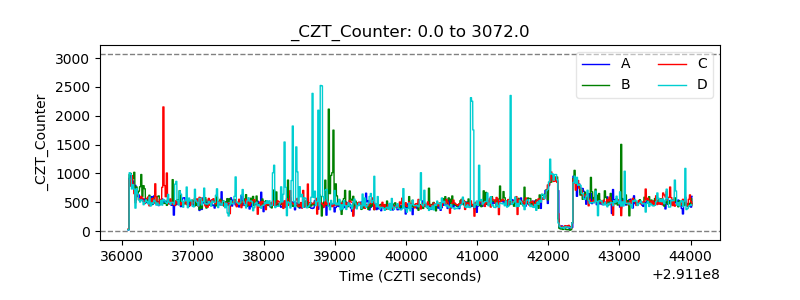

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

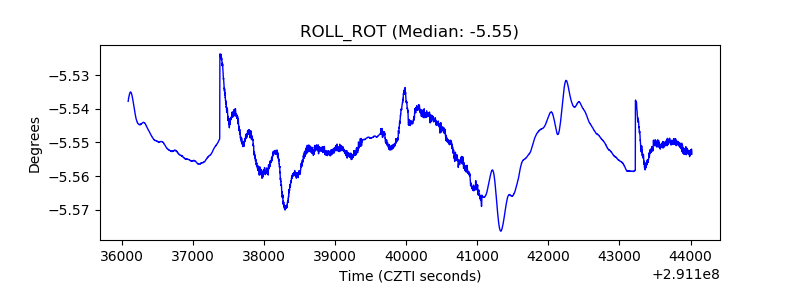

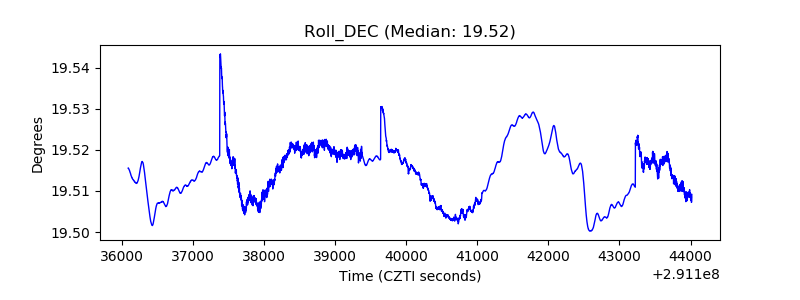

| _ROLL_ROT |  |
| _Roll_DEC |  |

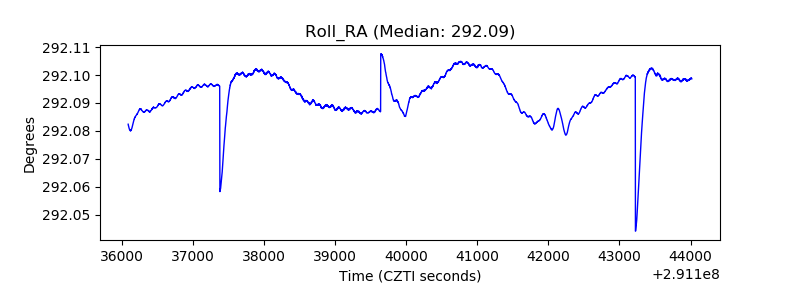

| _Roll_RA |  |

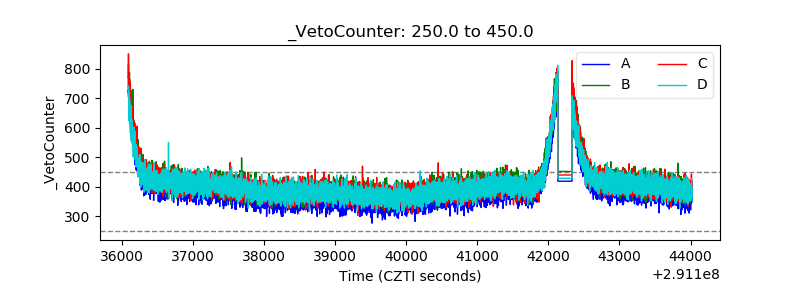

| Veto Counter |  |
