| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_094T01_9000002816_18866cztM0_level2.evt | modeM0/AS1T03_094T01_9000002816_18866cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,157,120 | 83,888,640 |
| Size | 560.0 MB | 80.0 MB |
| Events in quadrant A | 3,871,500 | 506,789 |
| Events in quadrant B | 4,111,316 | 512,976 |
| Events in quadrant C | 4,199,486 | 494,948 |
| Events in quadrant D | 5,068,475 | 480,866 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16454 | 2 |
| B | 0 | 17102 | 2 |
| C | 0 | 17139 | 2 |
| D | 0 | 20135 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7842 | 174 | 2.218822% |
| B | 7843 | 209 | 2.664797% |
| C | 7843 | 254 | 3.238557% |
| D | 7843 | 316 | 4.029071% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8477 | 7845 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8478 | 7846 | 26 | 26 | 0.31% | 0.33% |  |
| C | 8478 | 7846 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8478 | 7846 | 105 | 105 | 1.24% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 27941 | 132.68 | 993 | 971 | 203.3 |
| A | 4 | 2 | 12897 | 58.67 | 993 | 971 | 203.3 |
| A | 13 | 254 | 9799 | 43.43 | 993 | 971 | 203.3 |
| B | 10 | 245 | 69019 | 354.2 | 986 | 961 | 192.1 |
| B | 0 | 228 | 56164 | 287.3 | 986 | 961 | 192.1 |
| B | 12 | 111 | 21969 | 109.33 | 986 | 961 | 192.1 |
| C | 3 | 233 | 302521 | 1348.97 | 945 | 947 | 223.6 |
| C | 14 | 238 | 143745 | 638.75 | 945 | 947 | 223.6 |
| C | 5 | 112 | 58433 | 257.14 | 945 | 947 | 223.6 |
| D | 12 | 1 | 511400 | 2177.83 | 954 | 926 | 234.4 |
| D | 7 | 238 | 322578 | 1372.26 | 954 | 926 | 234.4 |
| D | 1 | 52 | 265565 | 1129.03 | 954 | 926 | 234.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

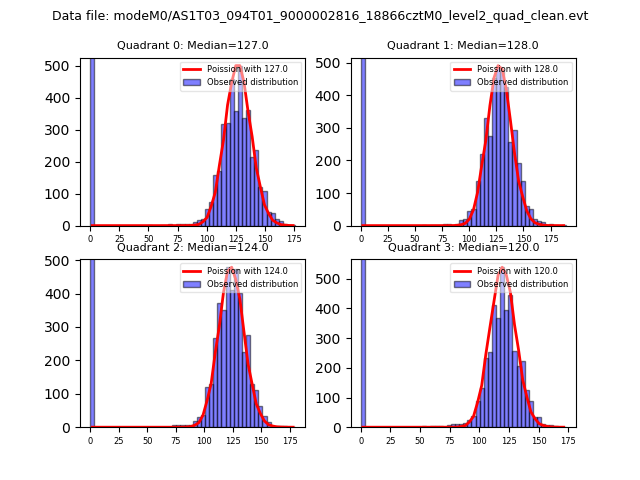

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

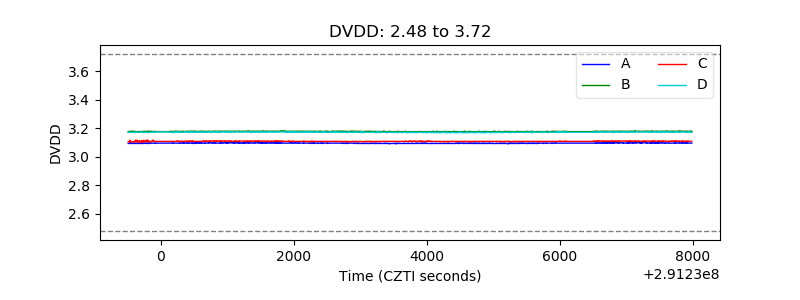

| D_VDD |  |

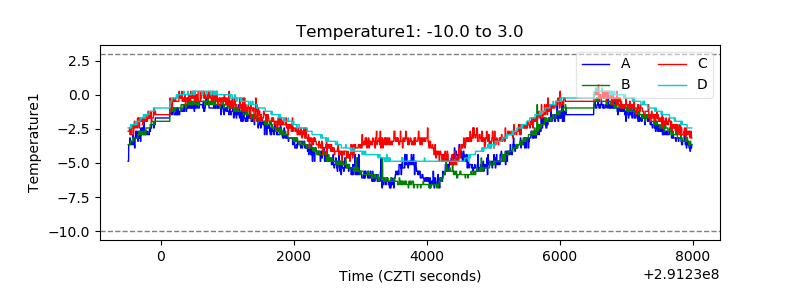

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

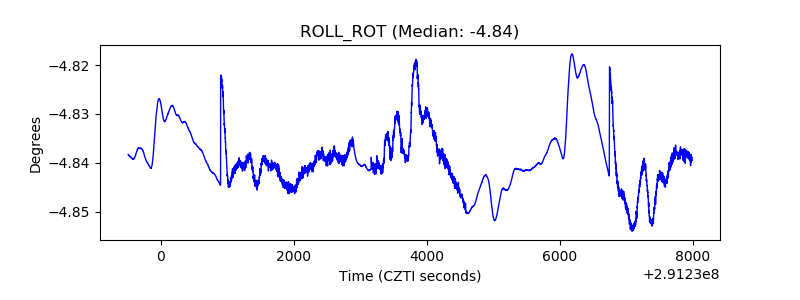

| _ROLL_ROT |  |
| _Roll_DEC |  |

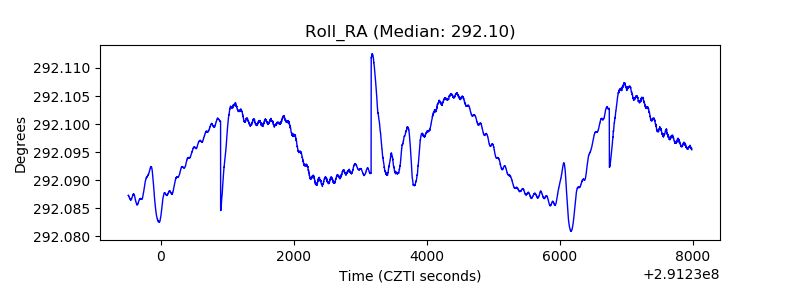

| _Roll_RA |  |
| Veto Counter |  |
