| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_094T01_9000002816_18869cztM0_level2.evt | modeM0/AS1T03_094T01_9000002816_18869cztM0_level2_quad_clean.evt |
| Size (bytes) | 669,568,320 | 93,490,560 |
| Size | 638.6 MB | 89.2 MB |
| Events in quadrant A | 5,550,599 | 588,108 |
| Events in quadrant B | 3,670,275 | 626,405 |
| Events in quadrant C | 5,014,713 | 567,525 |
| Events in quadrant D | 5,583,146 | 575,591 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20905 | 2 |
| B | 0 | 15473 | 2 |
| C | 0 | 19222 | 2 |
| D | 0 | 21414 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6787 | 678 | 9.989686% |
| B | 6788 | 162 | 2.386565% |
| C | 6788 | 634 | 9.340012% |
| D | 6788 | 346 | 5.097230% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

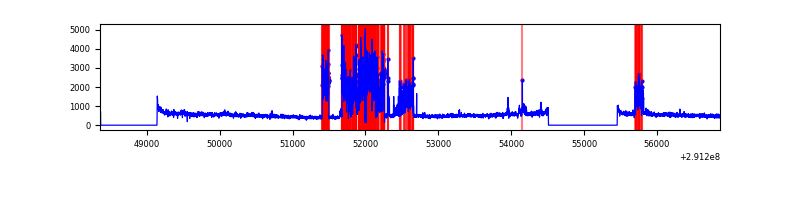

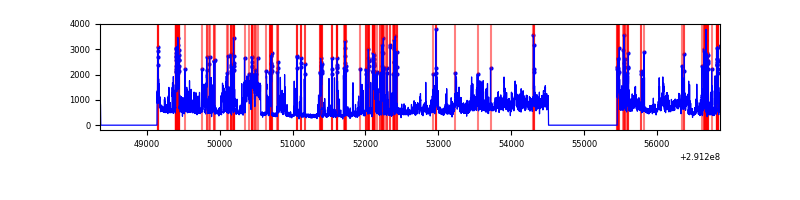

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8507 | 6789 | 583 | 583 | 6.85% | 8.59% |  |
| B | 8508 | 6790 | 47 | 47 | 0.55% | 0.69% |  |
| C | 8508 | 6790 | 442 | 442 | 5.20% | 6.51% |  |
| D | 8508 | 6790 | 246 | 246 | 2.89% | 3.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 2122278 | 12957.27 | 805 | 787 | 163.7 |
| A | 0 | 13 | 304765 | 1856.58 | 805 | 787 | 163.7 |
| A | 13 | 254 | 10095 | 56.85 | 805 | 787 | 163.7 |
| B | 7 | 220 | 320040 | 1988.11 | 829 | 807 | 160.6 |
| B | 6 | 36 | 19450 | 116.1 | 829 | 807 | 160.6 |
| B | 12 | 111 | 19091 | 113.87 | 829 | 807 | 160.6 |
| C | 3 | 233 | 1883677 | 10361.57 | 772 | 777 | 181.7 |
| C | 14 | 238 | 118940 | 650.25 | 772 | 777 | 181.7 |
| C | 13 | 61 | 5339 | 25.1 | 772 | 777 | 181.7 |
| D | 1 | 52 | 880875 | 4475.32 | 791 | 766 | 196.7 |
| D | 12 | 1 | 555425 | 2820.42 | 791 | 766 | 196.7 |
| D | 1 | 20 | 473294 | 2402.79 | 791 | 766 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

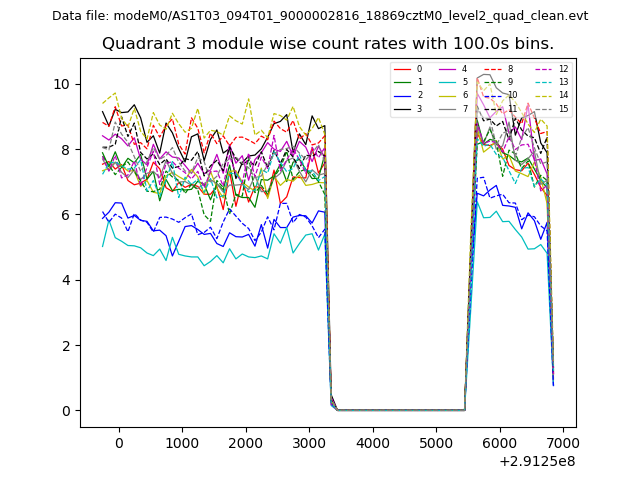

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

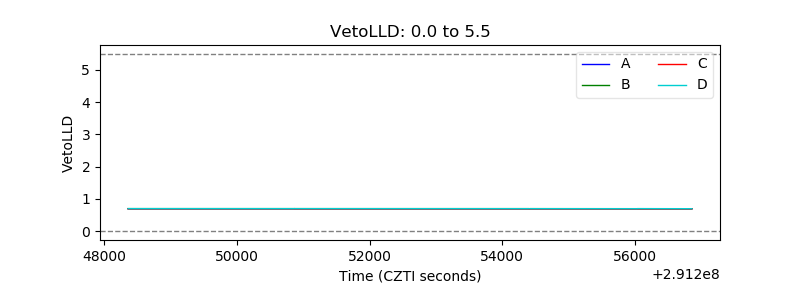

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

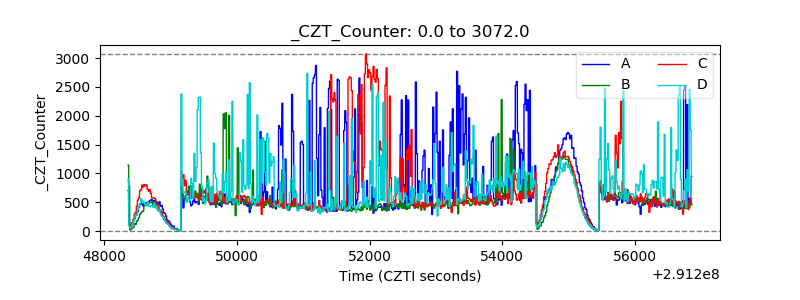

| CZT Counter |  |

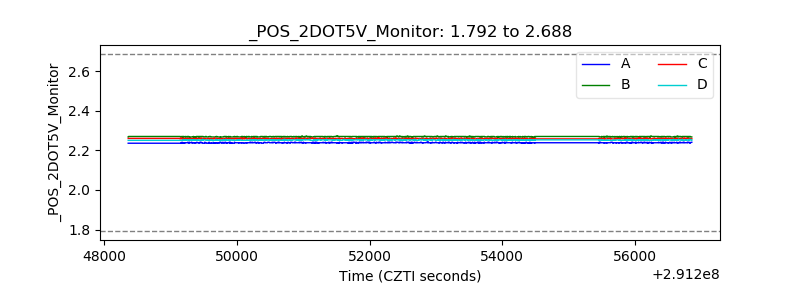

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

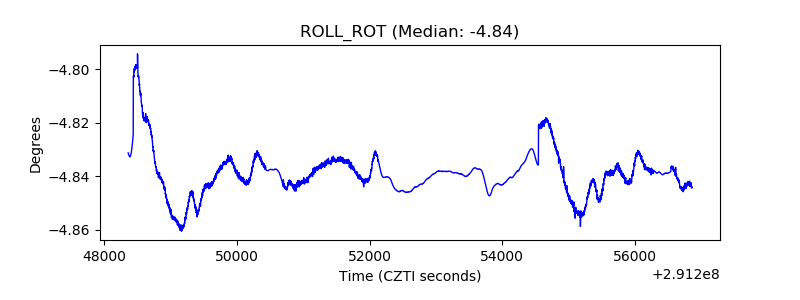

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

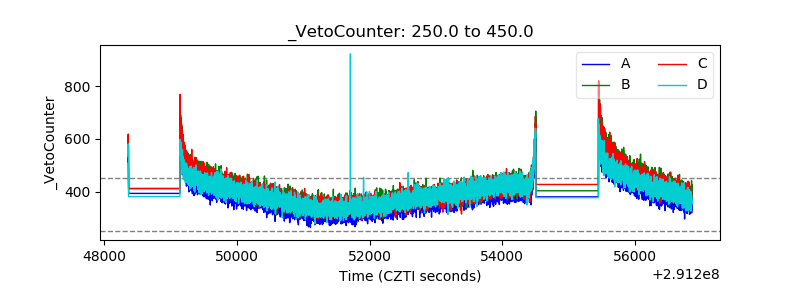

| Veto Counter |  |
