| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_094T01_9000002816_18875cztM0_level2.evt | modeM0/AS1T03_094T01_9000002816_18875cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,736,320 | 84,127,680 |
| Size | 461.3 MB | 80.2 MB |
| Events in quadrant A | 3,340,630 | 548,893 |
| Events in quadrant B | 3,149,541 | 559,309 |
| Events in quadrant C | 2,990,152 | 531,663 |
| Events in quadrant D | 4,774,503 | 500,610 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13325 | 1 |
| B | 0 | 12703 | 1 |
| C | 0 | 12187 | 1 |
| D | 0 | 18133 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5825 | 93 | 1.596567% |
| B | 5826 | 108 | 1.853759% |
| C | 5826 | 86 | 1.476141% |
| D | 5826 | 400 | 6.865774% |

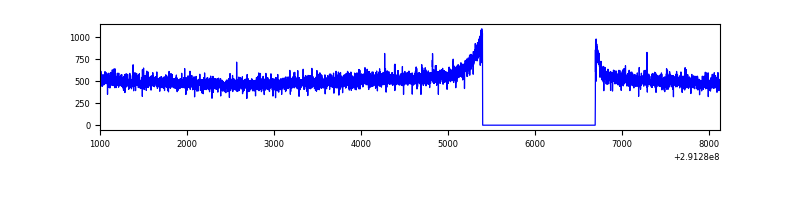

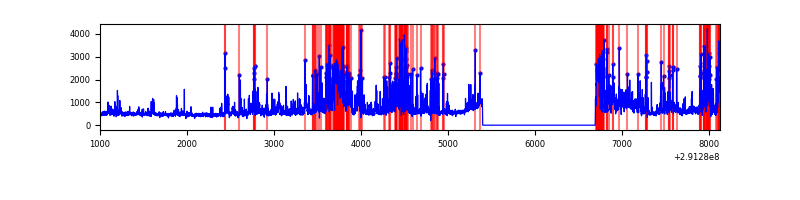

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7120 | 5826 | 8 | 8 | 0.11% | 0.14% |  |
| B | 7121 | 5827 | 13 | 13 | 0.18% | 0.22% |  |
| C | 7121 | 5827 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7121 | 5827 | 300 | 300 | 4.21% | 5.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 332158 | 2125.72 | 775 | 759 | 155.9 |
| A | 15 | 174 | 21951 | 135.93 | 775 | 759 | 155.9 |
| A | 13 | 254 | 9368 | 55.22 | 775 | 759 | 155.9 |
| B | 10 | 247 | 47903 | 326.16 | 767 | 749 | 144.6 |
| B | 7 | 220 | 36353 | 246.27 | 767 | 749 | 144.6 |
| B | 0 | 228 | 25271 | 169.62 | 767 | 749 | 144.6 |
| C | 14 | 238 | 115789 | 673.25 | 734 | 741 | 170.9 |
| C | 13 | 61 | 5203 | 26.11 | 734 | 741 | 170.9 |
| C | 3 | 233 | 4850 | 24.05 | 734 | 741 | 170.9 |
| D | 12 | 1 | 504791 | 2838.71 | 728 | 709 | 177.6 |
| D | 12 | 225 | 480617 | 2702.57 | 728 | 709 | 177.6 |
| D | 12 | 218 | 436318 | 2453.11 | 728 | 709 | 177.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

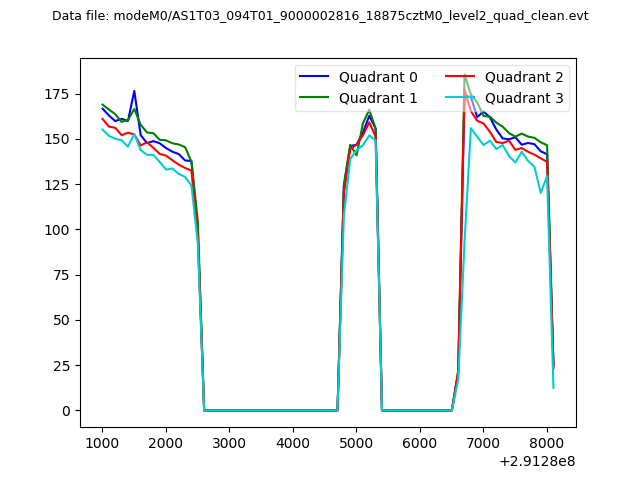

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

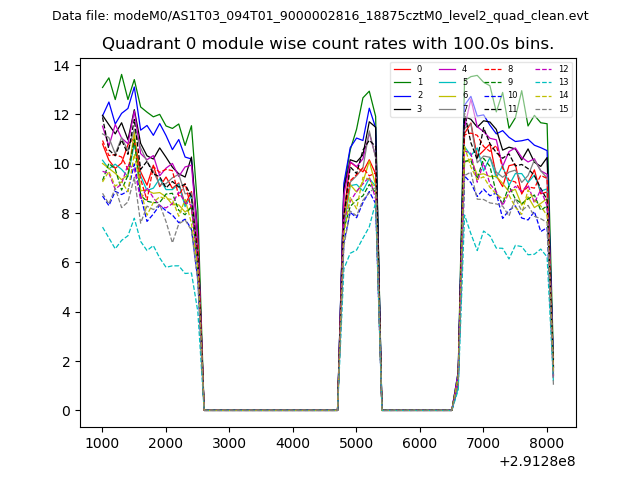

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

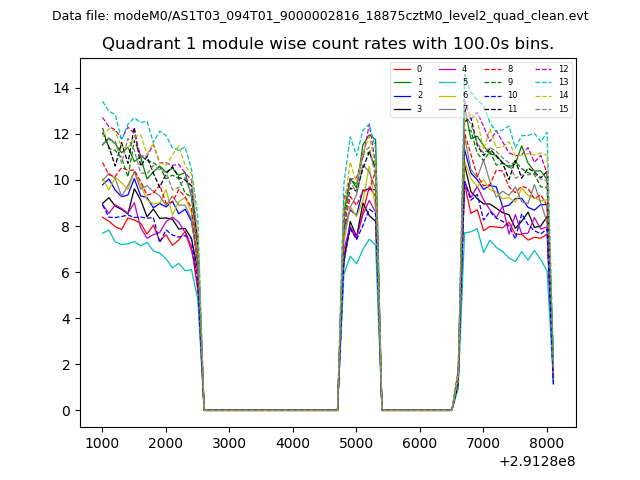

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

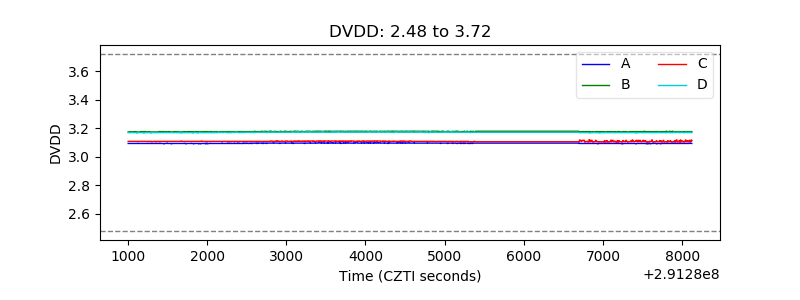

| D_VDD |  |
| Temperature 1 |  |

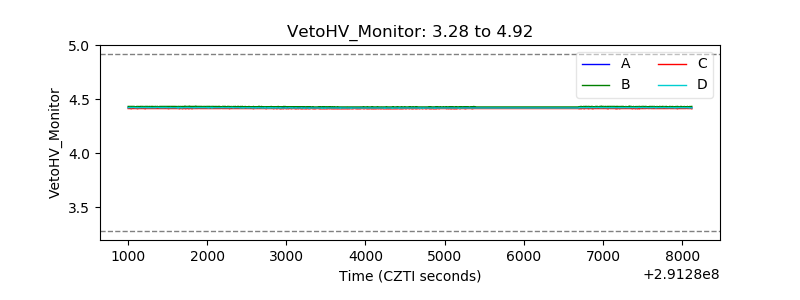

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
