| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T07_9000002818_18878cztM0_level2.evt | modeM0/AS1A06_003T07_9000002818_18878cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,546,560 | 103,374,720 |
| Size | 576.5 MB | 98.6 MB |
| Events in quadrant A | 4,335,644 | 664,558 |
| Events in quadrant B | 4,070,384 | 676,344 |
| Events in quadrant C | 3,516,306 | 650,432 |
| Events in quadrant D | 5,882,703 | 622,316 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17757 | 3 |
| B | 0 | 16843 | 3 |
| C | 0 | 15227 | 3 |
| D | 0 | 22403 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7423 | 336 | 4.526472% |
| B | 7423 | 189 | 2.546140% |
| C | 7423 | 162 | 2.182406% |
| D | 7422 | 744 | 10.024252% |

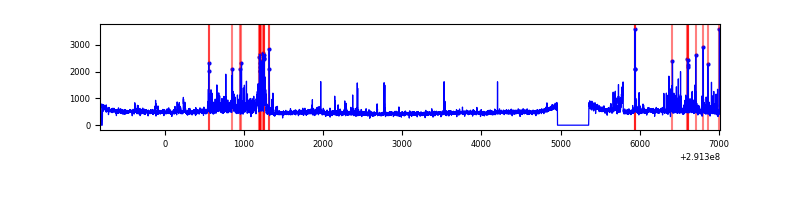

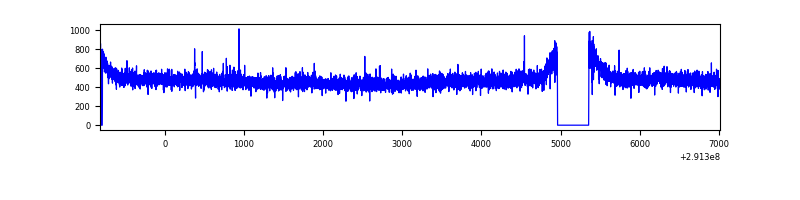

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7833 | 7425 | 159 | 159 | 2.03% | 2.14% |  |
| B | 7833 | 7425 | 30 | 30 | 0.38% | 0.40% |  |
| C | 7833 | 7425 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7832 | 7424 | 515 | 515 | 6.58% | 6.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 860344 | 4781.91 | 893 | 874 | 179.7 |
| A | 0 | 13 | 15880 | 83.49 | 893 | 874 | 179.7 |
| A | 15 | 174 | 11265 | 57.81 | 893 | 874 | 179.7 |
| B | 7 | 220 | 303277 | 1787.91 | 891 | 866 | 169.1 |
| B | 0 | 189 | 130805 | 768.22 | 891 | 866 | 169.1 |
| B | 4 | 216 | 61427 | 358.05 | 891 | 866 | 169.1 |
| C | 14 | 238 | 134469 | 665.98 | 857 | 860 | 200.6 |
| C | 3 | 233 | 28817 | 139.35 | 857 | 860 | 200.6 |
| C | 13 | 61 | 6186 | 26.55 | 857 | 860 | 200.6 |
| D | 1 | 52 | 1203205 | 5800.39 | 844 | 815 | 207.3 |
| D | 12 | 1 | 708010 | 3411.54 | 844 | 815 | 207.3 |
| D | 7 | 238 | 374142 | 1800.95 | 844 | 815 | 207.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

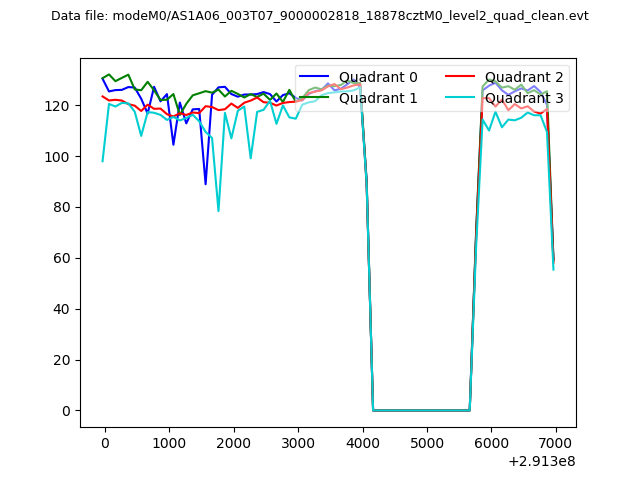

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

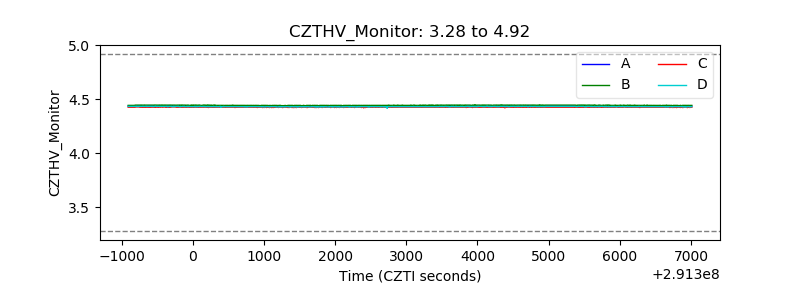

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

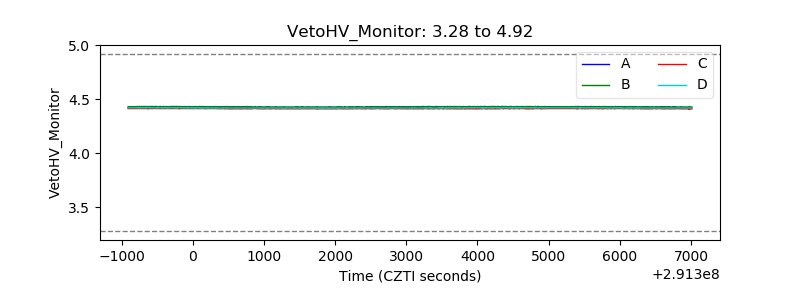

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

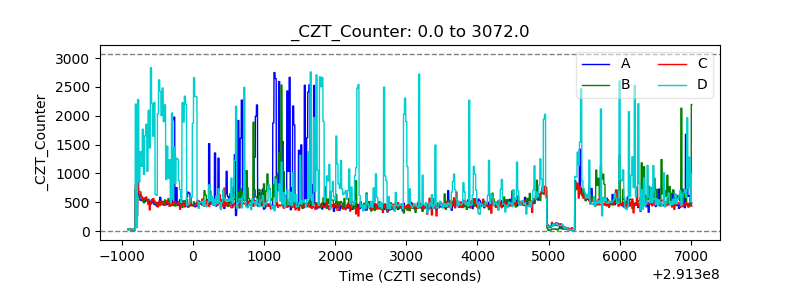

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

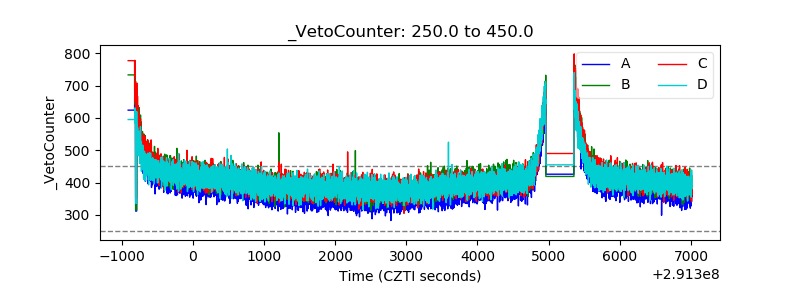

| Veto Counter |  |
