| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T07_9000002818_18890cztM0_level2.evt | modeM0/AS1A06_003T07_9000002818_18890cztM0_level2_quad_clean.evt |
| Size (bytes) | 644,892,480 | 71,112,960 |
| Size | 615.0 MB | 67.8 MB |
| Events in quadrant A | 3,366,429 | 480,023 |
| Events in quadrant B | 8,857,587 | 334,825 |
| Events in quadrant C | 3,507,189 | 448,963 |
| Events in quadrant D | 3,371,954 | 448,418 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13654 | 2 |
| B | 0 | 30581 | 2 |
| C | 0 | 14090 | 2 |
| D | 0 | 13861 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6307 | 83 | 1.315998% |
| B | 6307 | 2665 | 42.254638% |
| C | 6307 | 155 | 2.457587% |
| D | 6307 | 64 | 1.014746% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7597 | 6308 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7597 | 6308 | 1554 | 1554 | 20.46% | 24.64% |  |
| C | 7597 | 6308 | 47 | 47 | 0.62% | 0.75% |  |
| D | 7597 | 6308 | 21 | 21 | 0.28% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 99570 | 589.44 | 847 | 834 | 167.5 |
| A | 13 | 254 | 8180 | 43.85 | 847 | 834 | 167.5 |
| A | 0 | 226 | 7667 | 40.79 | 847 | 834 | 167.5 |
| B | 3 | 112 | 6101839 | 49968.18 | 657 | 642 | 122.1 |
| B | 7 | 220 | 119364 | 972.32 | 657 | 642 | 122.1 |
| B | 0 | 189 | 28010 | 224.14 | 657 | 642 | 122.1 |
| C | 9 | 54 | 232888 | 1281.0 | 791 | 798 | 181.2 |
| C | 14 | 238 | 125280 | 687.06 | 791 | 798 | 181.2 |
| C | 3 | 233 | 66719 | 363.84 | 791 | 798 | 181.2 |
| D | 1 | 52 | 132023 | 674.42 | 812 | 791 | 194.6 |
| D | 9 | 1 | 49170 | 248.63 | 812 | 791 | 194.6 |
| D | 7 | 238 | 43821 | 221.14 | 812 | 791 | 194.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

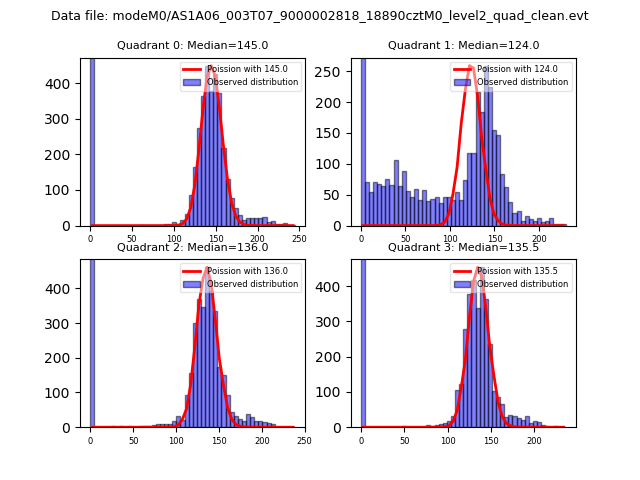

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

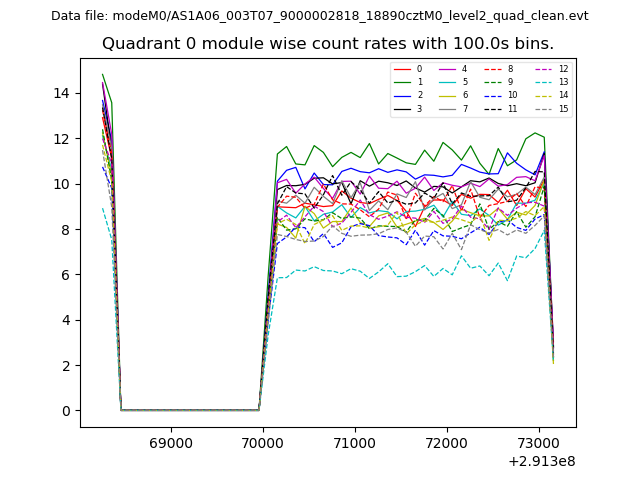

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

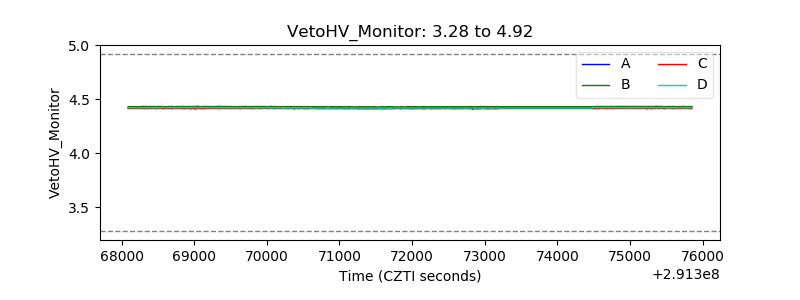

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

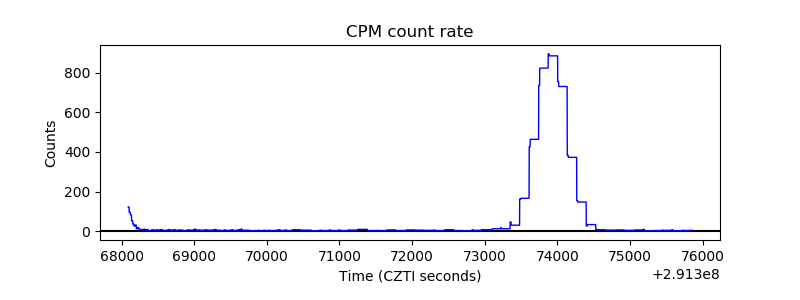

| _CPM_Rate |  |

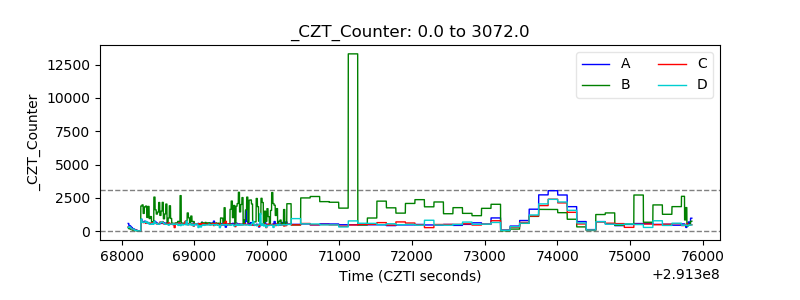

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

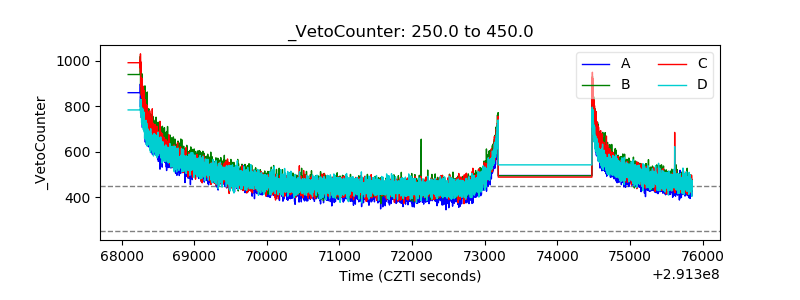

| Veto Counter |  |
