| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T07_9000002818_18893cztM0_level2.evt | modeM0/AS1A06_003T07_9000002818_18893cztM0_level2_quad_clean.evt |
| Size (bytes) | 672,192,000 | 101,292,480 |
| Size | 641.1 MB | 96.6 MB |
| Events in quadrant A | 3,448,130 | 684,102 |
| Events in quadrant B | 8,083,613 | 590,657 |
| Events in quadrant C | 3,594,706 | 657,224 |
| Events in quadrant D | 4,740,008 | 630,657 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15034 | 2 |
| B | 0 | 28934 | 2 |
| C | 0 | 15163 | 2 |
| D | 0 | 18932 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7240 | 182 | 2.513812% |
| B | 7241 | 1899 | 26.225659% |
| C | 7241 | 228 | 3.148736% |
| D | 7241 | 400 | 5.524099% |

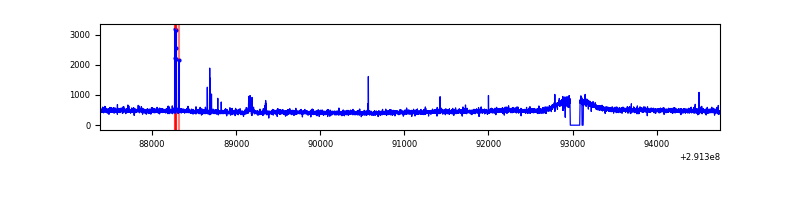

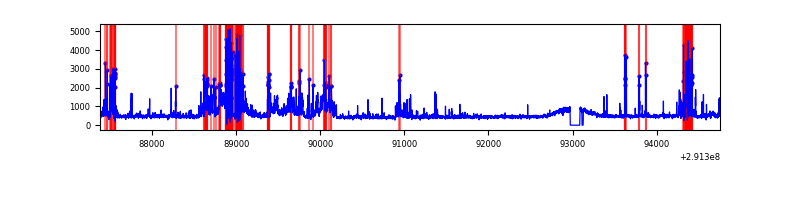

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7370 | 7242 | 6 | 6 | 0.08% | 0.08% |  |
| B | 7371 | 7243 | 1071 | 1071 | 14.53% | 14.79% |  |
| C | 7371 | 7243 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7371 | 7243 | 204 | 204 | 2.77% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 44681 | 247.29 | 879 | 860 | 177.2 |
| A | 13 | 254 | 9717 | 49.98 | 879 | 860 | 177.2 |
| A | 9 | 143 | 8262 | 41.77 | 879 | 860 | 177.2 |
| B | 3 | 112 | 4492218 | 30378.03 | 774 | 753 | 147.9 |
| B | 7 | 220 | 245861 | 1657.79 | 774 | 753 | 147.9 |
| B | 0 | 189 | 224144 | 1510.91 | 774 | 753 | 147.9 |
| C | 3 | 233 | 168490 | 851.97 | 841 | 843 | 196.8 |
| C | 14 | 238 | 131402 | 663.49 | 841 | 843 | 196.8 |
| C | 0 | 207 | 12898 | 61.26 | 841 | 843 | 196.8 |
| D | 12 | 110 | 613980 | 2954.17 | 847 | 821 | 207.6 |
| D | 1 | 52 | 306401 | 1472.27 | 847 | 821 | 207.6 |
| D | 12 | 1 | 250747 | 1204.13 | 847 | 821 | 207.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

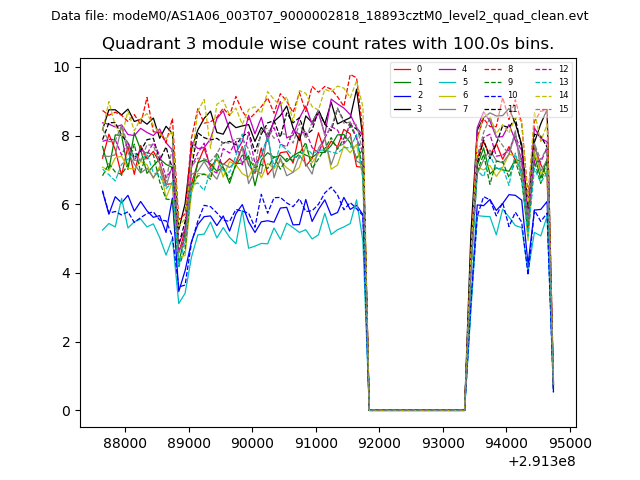

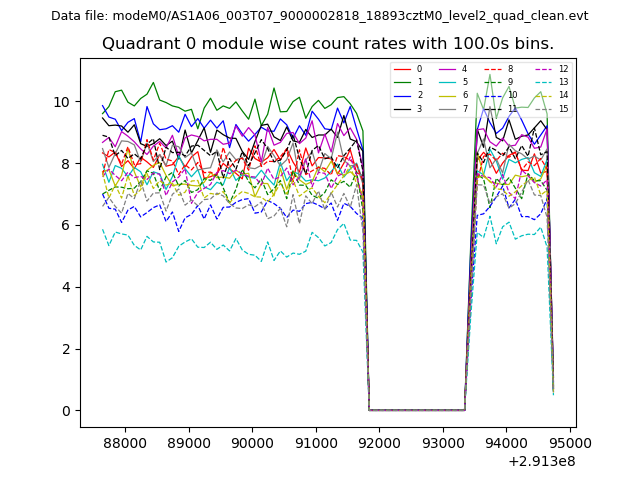

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

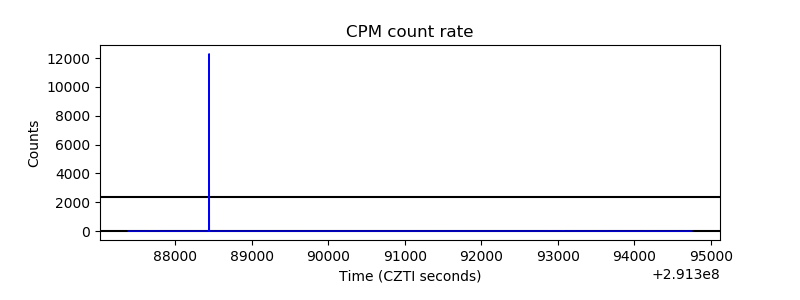

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

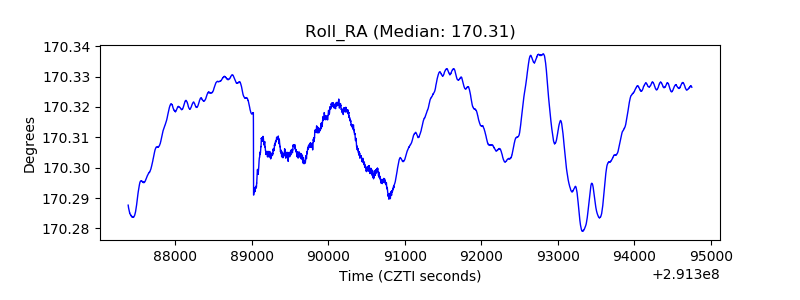

| _Roll_RA |  |

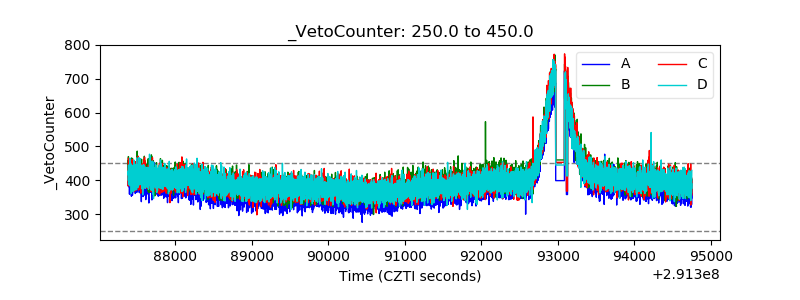

| Veto Counter |  |
