| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T07_9000002818_18899cztM0_level2.evt | modeM0/AS1A06_003T07_9000002818_18899cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,498,560 | 88,113,600 |
| Size | 442.0 MB | 84.0 MB |
| Events in quadrant A | 2,807,202 | 576,071 |
| Events in quadrant B | 4,445,293 | 551,479 |
| Events in quadrant C | 2,900,500 | 562,417 |
| Events in quadrant D | 3,465,749 | 548,179 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12547 | 2 |
| B | 0 | 17402 | 2 |
| C | 0 | 12661 | 2 |
| D | 0 | 14704 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6156 | 15 | 0.243665% |
| B | 6156 | 553 | 8.983106% |
| C | 6156 | 64 | 1.039636% |
| D | 6156 | 81 | 1.315789% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

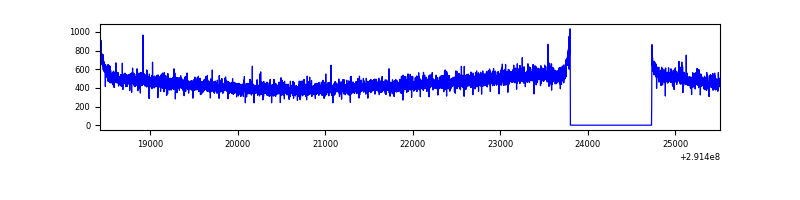

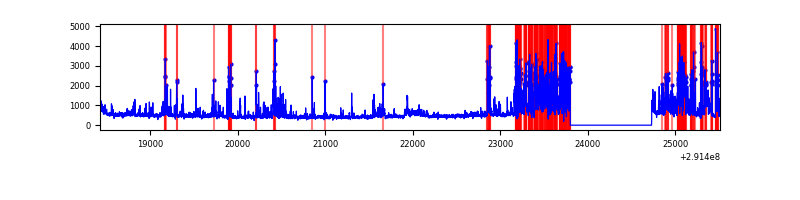

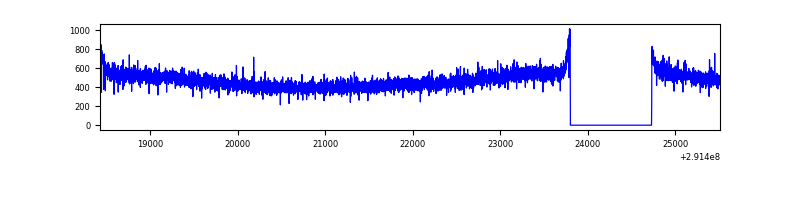

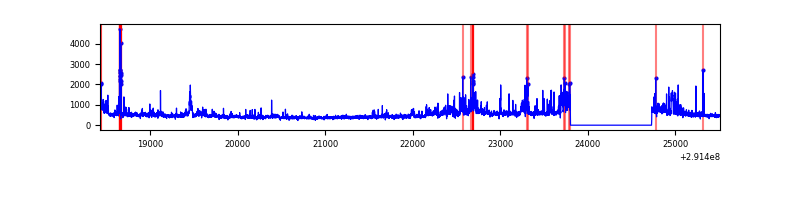

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7086 | 6157 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7086 | 6156 | 301 | 301 | 4.25% | 4.89% |  |
| C | 7086 | 6157 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7086 | 6157 | 31 | 31 | 0.44% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9014 | 56.55 | 724 | 709 | 146.9 |
| A | 6 | 16 | 8023 | 49.8 | 724 | 709 | 146.9 |
| A | 9 | 143 | 7371 | 45.36 | 724 | 709 | 146.9 |
| B | 3 | 112 | 1658792 | 12507.37 | 698 | 680 | 132.6 |
| B | 12 | 111 | 15931 | 115.04 | 698 | 680 | 132.6 |
| B | 11 | 111 | 14038 | 100.76 | 698 | 680 | 132.6 |
| C | 14 | 238 | 109639 | 662.88 | 702 | 705 | 164.3 |
| C | 3 | 233 | 54442 | 327.0 | 702 | 705 | 164.3 |
| C | 13 | 61 | 4938 | 25.76 | 702 | 705 | 164.3 |
| D | 7 | 238 | 357232 | 2082.93 | 705 | 684 | 171.2 |
| D | 12 | 110 | 157201 | 914.36 | 705 | 684 | 171.2 |
| D | 1 | 52 | 126072 | 732.51 | 705 | 684 | 171.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

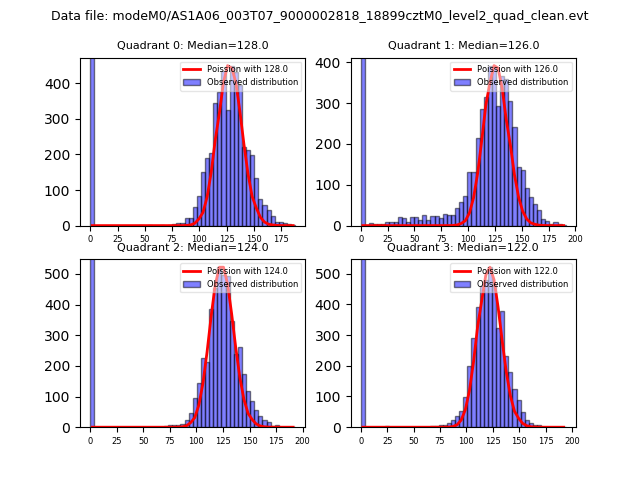

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

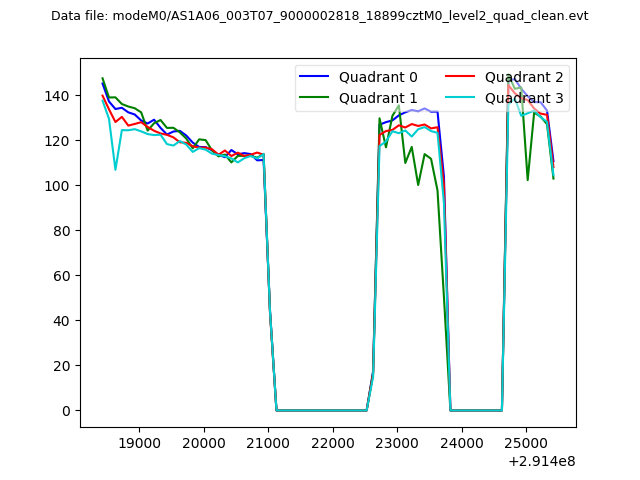

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

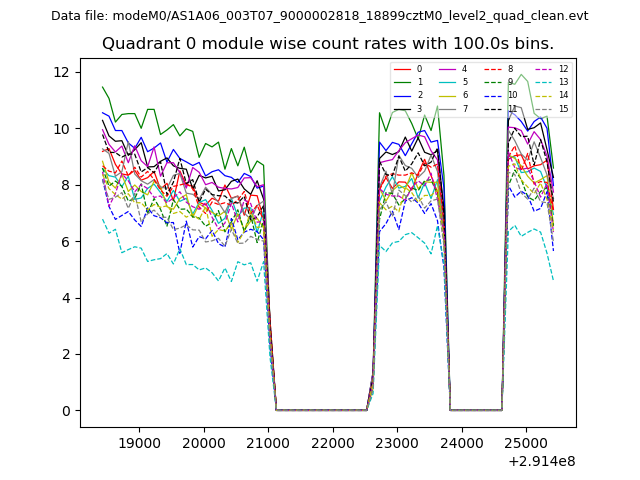

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

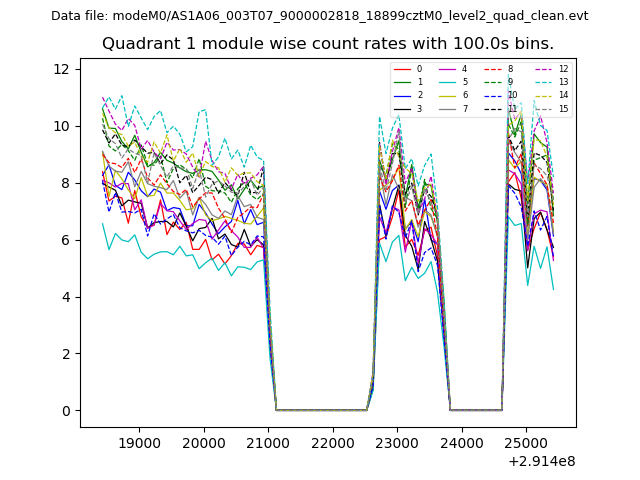

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

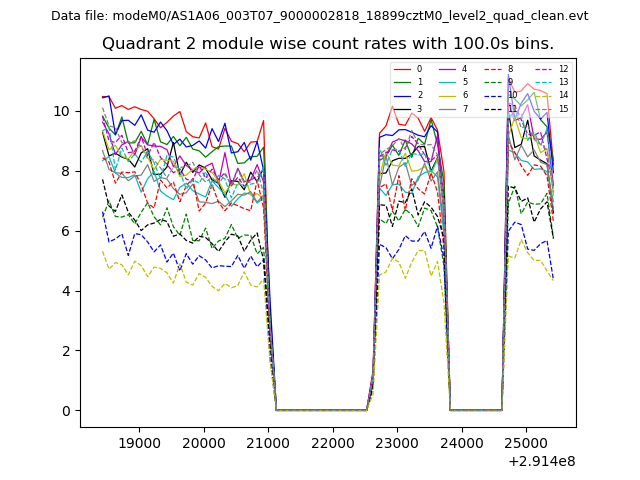

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

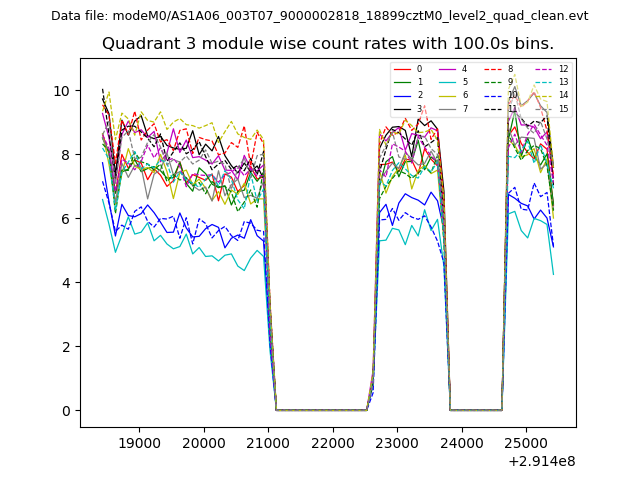

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

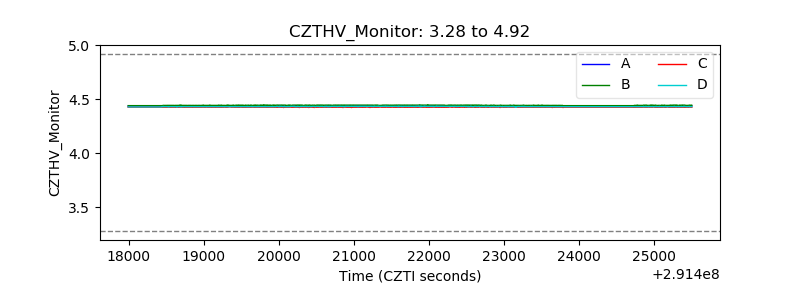

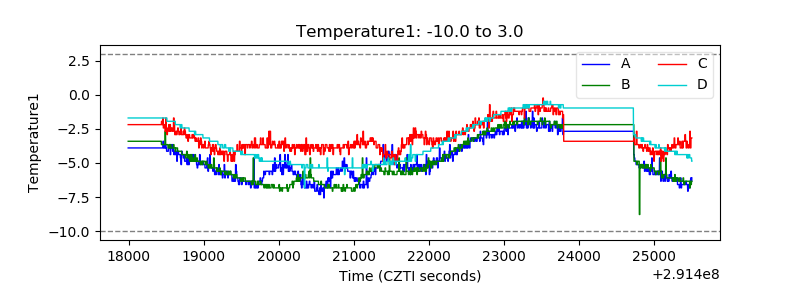

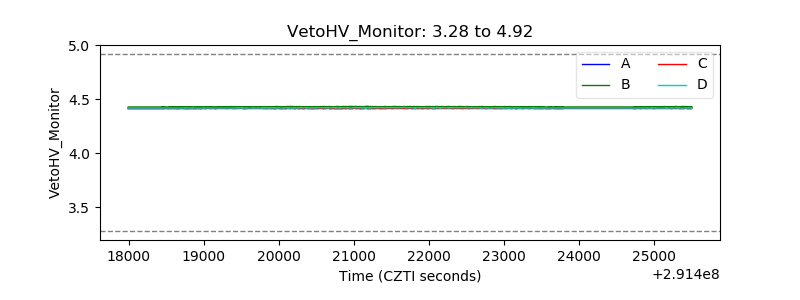

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

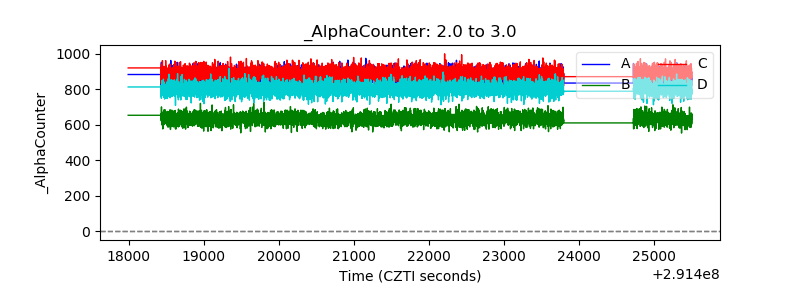

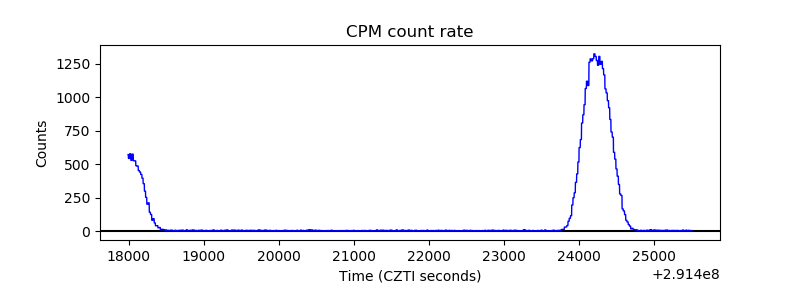

| Alpha Counter |  |
| _CPM_Rate |  |

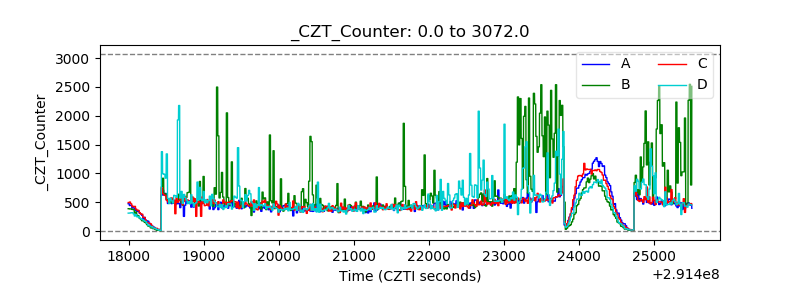

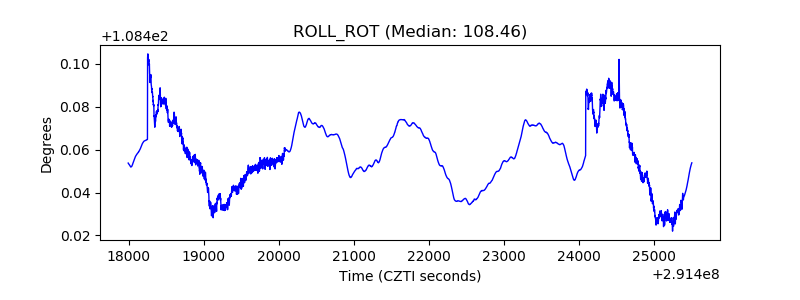

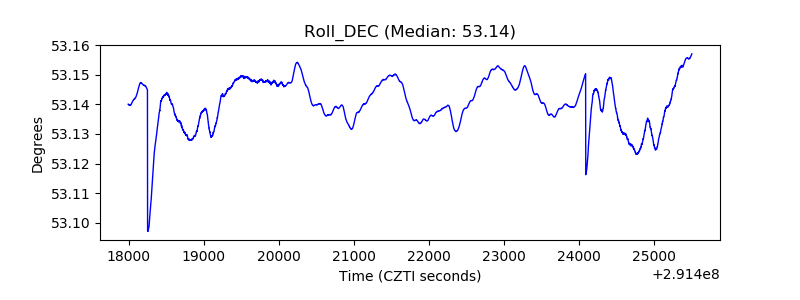

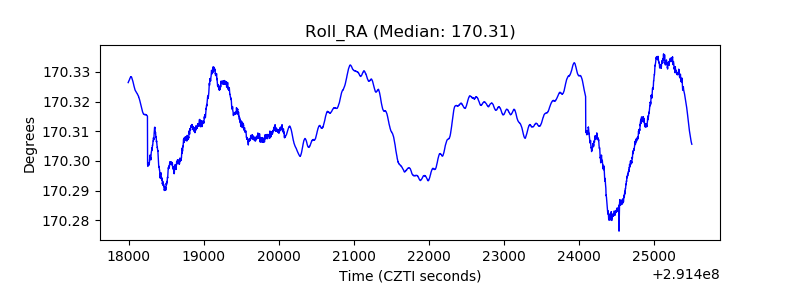

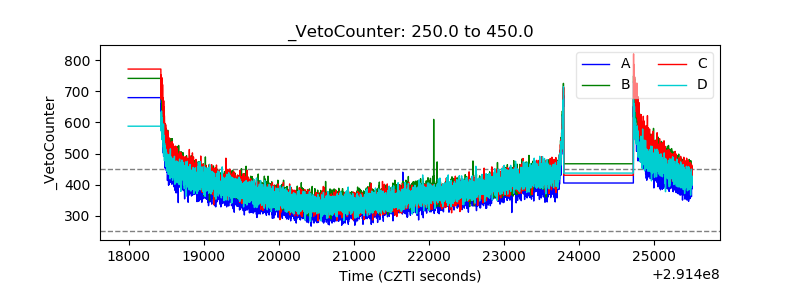

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
