| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000002820_18902cztM0_level2.evt | modeM0/AS1A05_163T01_9000002820_18902cztM0_level2_quad_clean.evt |
| Size (bytes) | 675,008,640 | 91,163,520 |
| Size | 643.7 MB | 86.9 MB |
| Events in quadrant A | 8,676,884 | 409,037 |
| Events in quadrant B | 4,690,362 | 655,297 |
| Events in quadrant C | 3,302,164 | 632,739 |
| Events in quadrant D | 3,336,567 | 612,970 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30143 | 2 |
| B | 0 | 18115 | 2 |
| C | 0 | 13730 | 2 |
| D | 0 | 13941 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6450 | 2583 | 40.046512% |
| B | 6450 | 459 | 7.116279% |
| C | 6450 | 59 | 0.914729% |
| D | 6450 | 12 | 0.186047% |

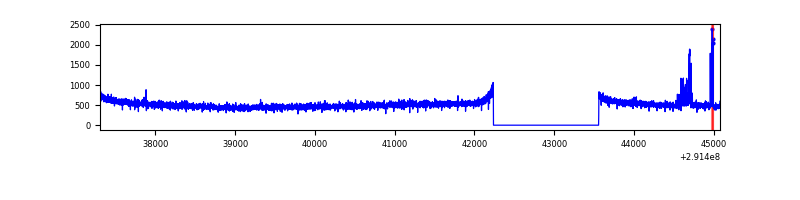

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7770 | 6450 | 1592 | 1592 | 20.49% | 24.68% |  |
| B | 7770 | 6451 | 270 | 270 | 3.47% | 4.19% |  |
| C | 7770 | 6451 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7770 | 6451 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 6234288 | 49021.82 | 633 | 623 | 127.2 |
| A | 13 | 254 | 7065 | 50.66 | 633 | 623 | 127.2 |
| A | 0 | 226 | 5521 | 38.52 | 633 | 623 | 127.2 |
| B | 3 | 112 | 1375319 | 9004.9 | 814 | 796 | 152.6 |
| B | 4 | 216 | 68880 | 446.04 | 814 | 796 | 152.6 |
| B | 0 | 189 | 34127 | 218.36 | 814 | 796 | 152.6 |
| C | 14 | 238 | 127794 | 684.97 | 798 | 805 | 185.4 |
| C | 0 | 207 | 49274 | 261.44 | 798 | 805 | 185.4 |
| C | 3 | 233 | 15496 | 79.24 | 798 | 805 | 185.4 |
| D | 7 | 238 | 133003 | 682.37 | 804 | 783 | 193.8 |
| D | 12 | 110 | 79849 | 408.05 | 804 | 783 | 193.8 |
| D | 1 | 52 | 38171 | 192.95 | 804 | 783 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

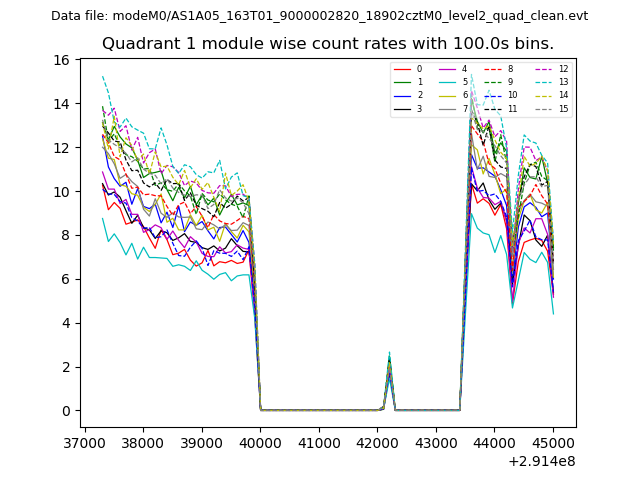

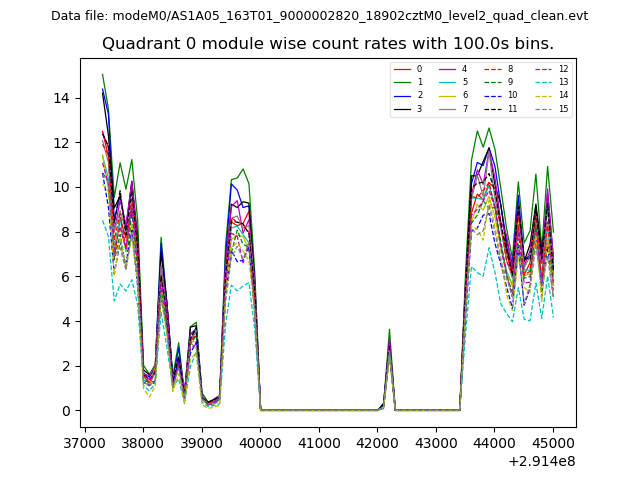

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

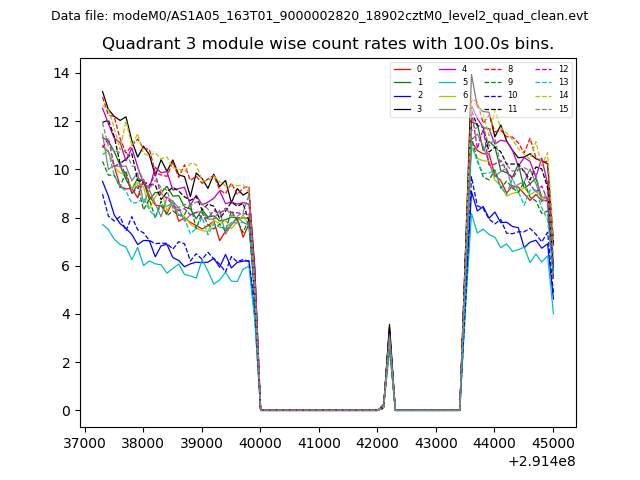

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

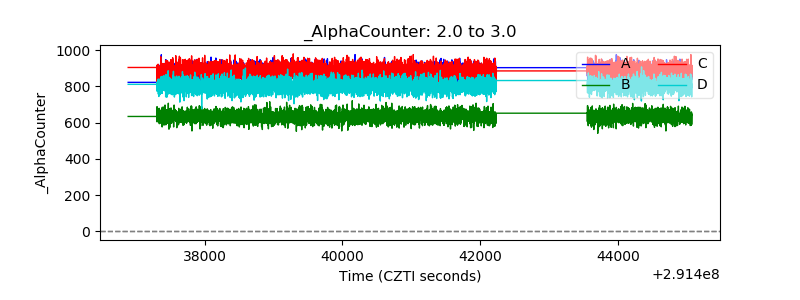

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

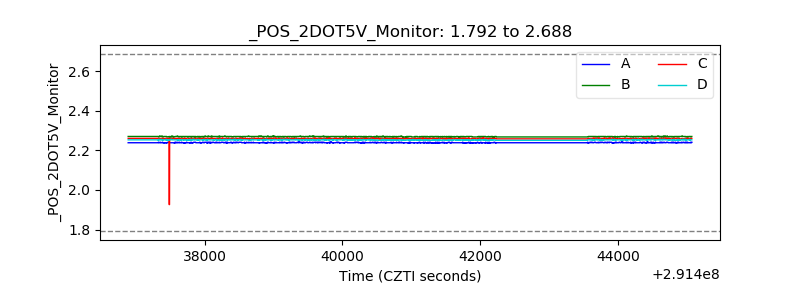

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

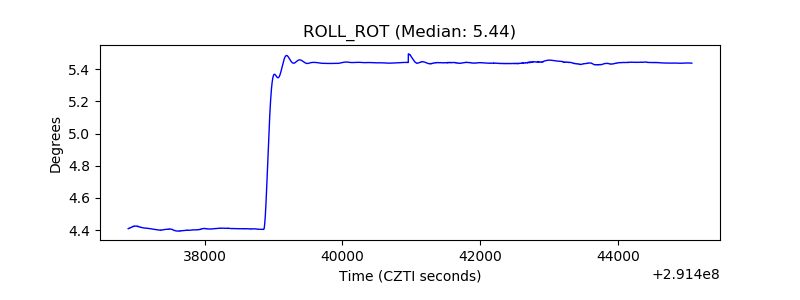

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

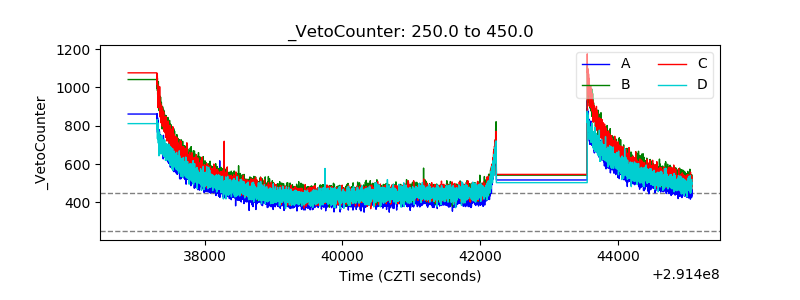

| Veto Counter |  |
