| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000002820_18922cztM0_level2.evt | modeM0/AS1A05_163T01_9000002820_18922cztM0_level2_quad_clean.evt |
| Size (bytes) | 656,251,200 | 86,716,800 |
| Size | 625.8 MB | 82.7 MB |
| Events in quadrant A | 3,952,987 | 527,470 |
| Events in quadrant B | 4,735,536 | 534,520 |
| Events in quadrant C | 4,770,161 | 521,984 |
| Events in quadrant D | 5,892,166 | 503,620 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16635 | 2 |
| B | 0 | 18960 | 2 |
| C | 0 | 19292 | 2 |
| D | 0 | 22649 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7744 | 216 | 2.789256% |
| B | 7744 | 312 | 4.028926% |
| C | 7744 | 267 | 3.447831% |
| D | 7744 | 729 | 9.413740% |

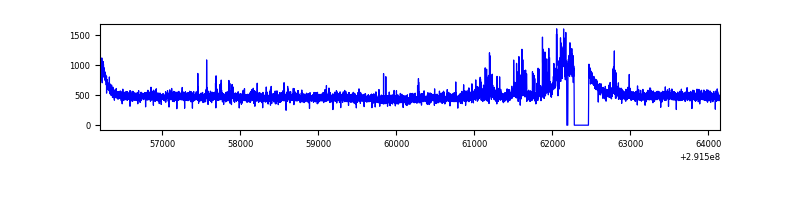

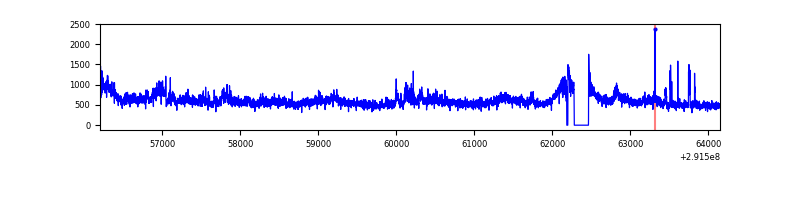

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7944 | 7746 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7944 | 7746 | 53 | 53 | 0.67% | 0.68% |  |
| C | 7944 | 7746 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7944 | 7746 | 414 | 414 | 5.21% | 5.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 157444 | 787.16 | 972 | 951 | 198.8 |
| A | 3 | 1 | 34450 | 168.5 | 972 | 951 | 198.8 |
| A | 9 | 143 | 19509 | 93.35 | 972 | 951 | 198.8 |
| B | 3 | 112 | 503178 | 2671.0 | 962 | 936 | 188.0 |
| B | 10 | 247 | 162092 | 857.05 | 962 | 936 | 188.0 |
| B | 7 | 220 | 117827 | 621.64 | 962 | 936 | 188.0 |
| C | 3 | 233 | 1012547 | 4611.25 | 926 | 933 | 219.4 |
| C | 14 | 238 | 143173 | 648.37 | 926 | 933 | 219.4 |
| C | 5 | 112 | 7068 | 27.97 | 926 | 933 | 219.4 |
| D | 7 | 238 | 2236556 | 9852.69 | 921 | 893 | 226.9 |
| D | 1 | 52 | 47695 | 206.26 | 921 | 893 | 226.9 |
| D | 2 | 234 | 33729 | 144.71 | 921 | 893 | 226.9 |

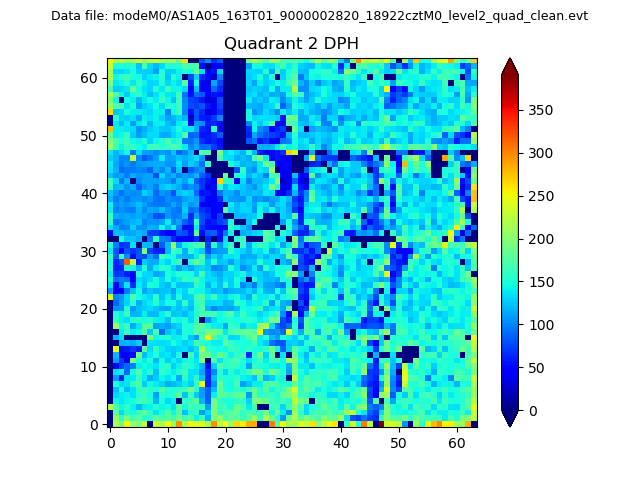

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

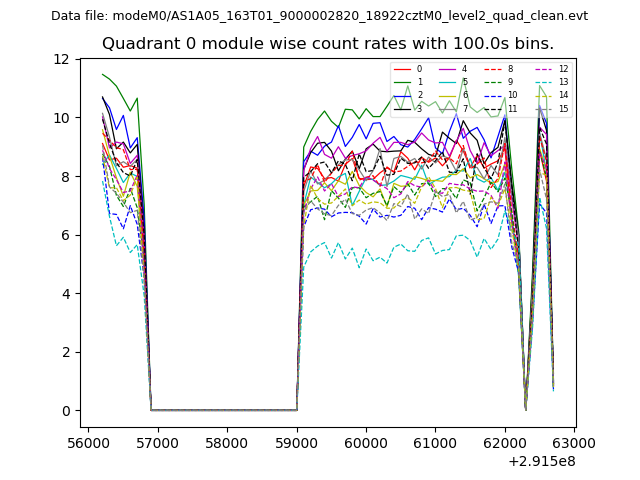

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

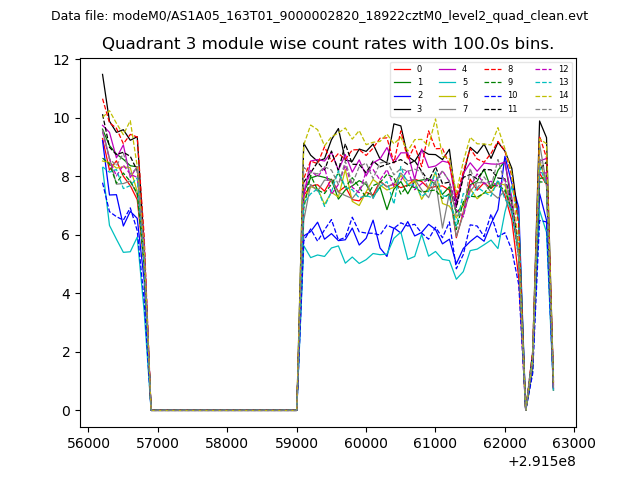

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

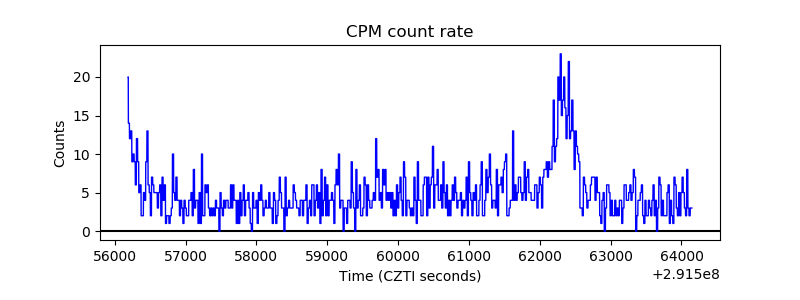

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

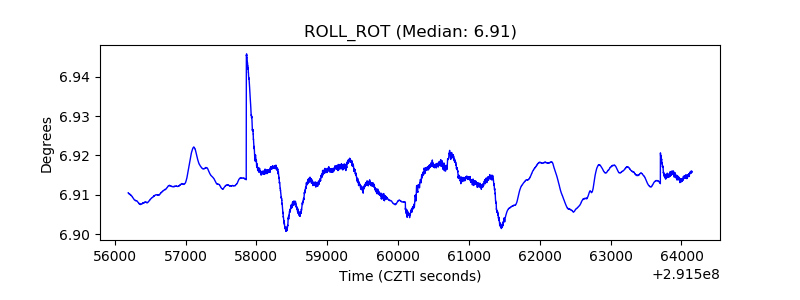

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

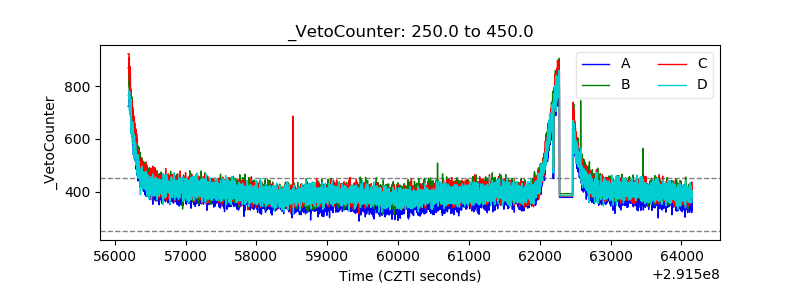

| Veto Counter |  |
