| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000002820_18931cztM0_level2.evt | modeM0/AS1A05_163T01_9000002820_18931cztM0_level2_quad_clean.evt |
| Size (bytes) | 623,940,480 | 100,687,680 |
| Size | 595.0 MB | 96.0 MB |
| Events in quadrant A | 3,581,987 | 670,771 |
| Events in quadrant B | 4,821,705 | 678,385 |
| Events in quadrant C | 3,366,260 | 657,137 |
| Events in quadrant D | 6,684,827 | 587,523 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14574 | 2 |
| B | 0 | 18629 | 2 |
| C | 0 | 14000 | 2 |
| D | 0 | 24293 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6527 | 66 | 1.011184% |
| B | 6528 | 382 | 5.851716% |
| C | 6528 | 72 | 1.102941% |
| D | 6528 | 784 | 12.009804% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

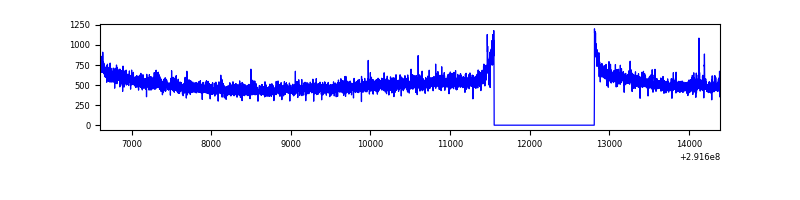

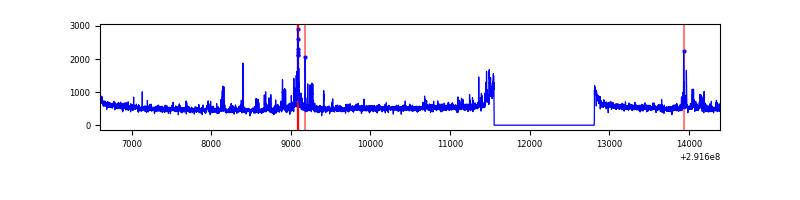

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7787 | 6528 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7788 | 6529 | 228 | 228 | 2.93% | 3.49% |  |
| C | 7788 | 6529 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7788 | 6529 | 722 | 722 | 9.27% | 11.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 319494 | 1870.96 | 844 | 829 | 170.3 |
| A | 15 | 174 | 12091 | 66.12 | 844 | 829 | 170.3 |
| A | 13 | 254 | 9240 | 49.38 | 844 | 829 | 170.3 |
| B | 3 | 112 | 1442513 | 9234.47 | 835 | 816 | 156.1 |
| B | 7 | 220 | 41149 | 258.34 | 835 | 816 | 156.1 |
| B | 0 | 189 | 32923 | 205.65 | 835 | 816 | 156.1 |
| C | 14 | 238 | 127250 | 674.01 | 810 | 818 | 187.6 |
| C | 3 | 233 | 76408 | 402.97 | 810 | 818 | 187.6 |
| C | 9 | 54 | 5773 | 26.42 | 810 | 818 | 187.6 |
| D | 7 | 238 | 2779203 | 14731.3 | 775 | 752 | 188.6 |
| D | 1 | 52 | 629438 | 3333.28 | 775 | 752 | 188.6 |
| D | 12 | 218 | 187028 | 987.63 | 775 | 752 | 188.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

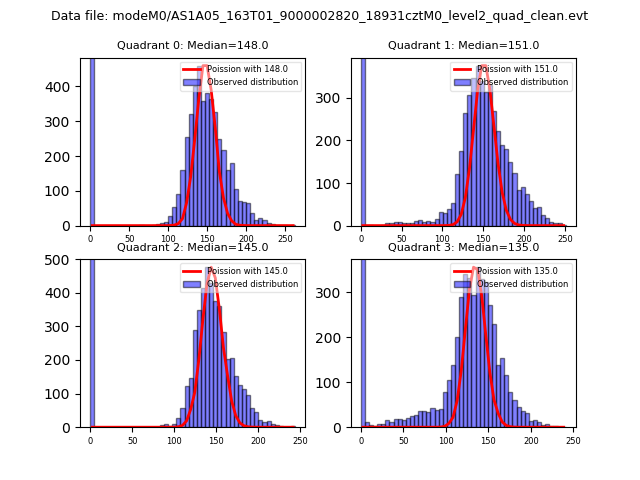

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

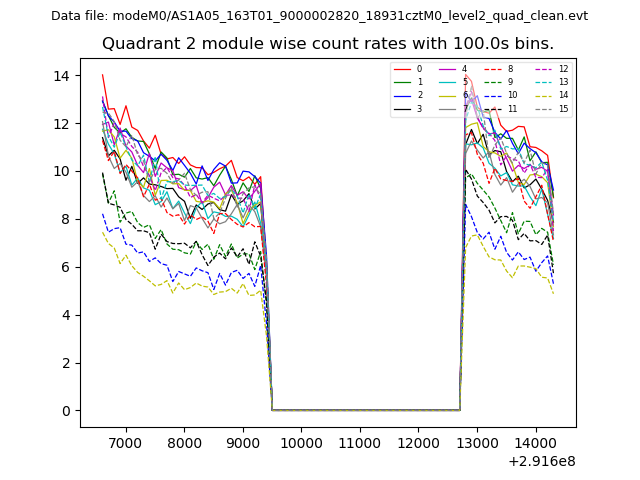

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

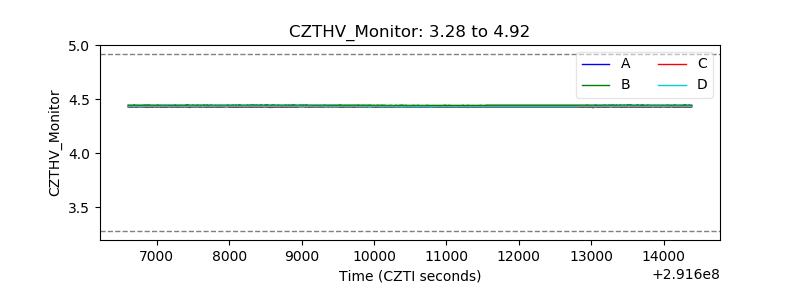

| CZT HV Monitor |  |
| D_VDD |  |

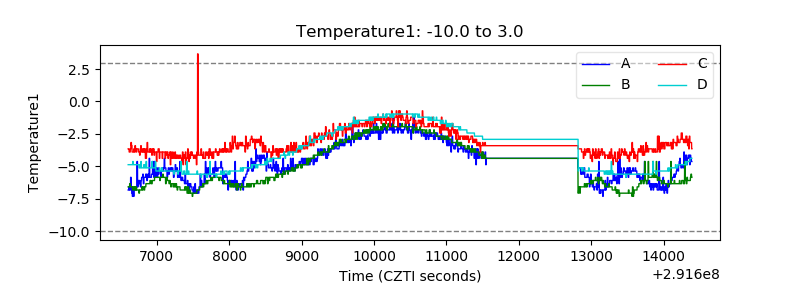

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

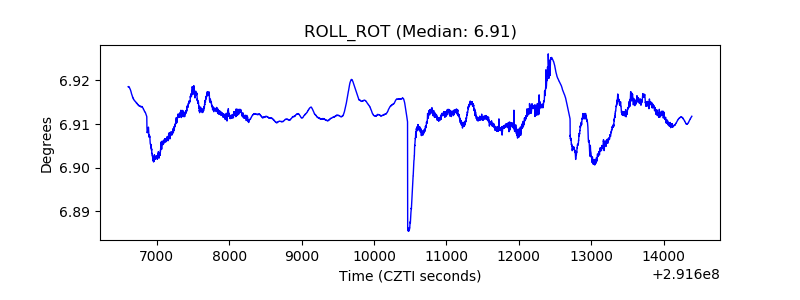

| _ROLL_ROT |  |

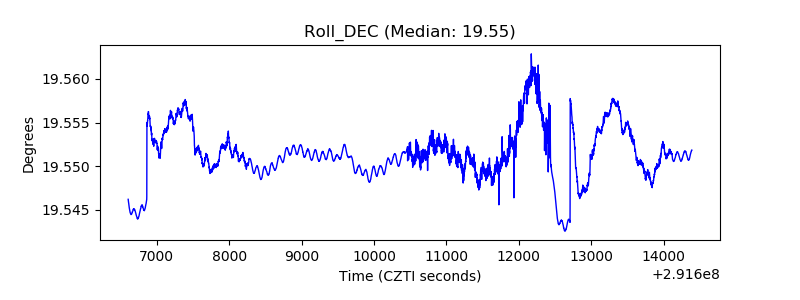

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
