| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000002820_18936cztM0_level2.evt | modeM0/AS1A05_163T01_9000002820_18936cztM0_level2_quad_clean.evt |
| Size (bytes) | 879,192,000 | 85,766,400 |
| Size | 838.5 MB | 81.8 MB |
| Events in quadrant A | 6,843,858 | 518,637 |
| Events in quadrant B | 5,941,205 | 512,898 |
| Events in quadrant C | 4,160,652 | 537,742 |
| Events in quadrant D | 9,169,515 | 499,592 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25471 | 2 |
| B | 0 | 22471 | 2 |
| C | 0 | 16990 | 2 |
| D | 0 | 32466 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7581 | 666 | 8.785121% |
| B | 7581 | 845 | 11.146287% |
| C | 7581 | 189 | 2.493075% |
| D | 7581 | 1596 | 21.052632% |

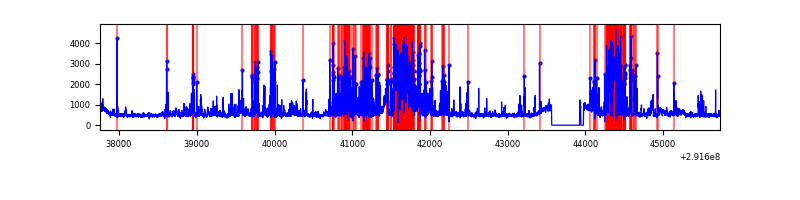

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7976 | 7583 | 383 | 383 | 4.80% | 5.05% |  |
| B | 7976 | 7583 | 471 | 471 | 5.91% | 6.21% |  |
| C | 7976 | 7583 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7976 | 7583 | 1244 | 1244 | 15.60% | 16.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 3248996 | 17373.33 | 926 | 904 | 187.0 |
| A | 13 | 254 | 11637 | 57.41 | 926 | 904 | 187.0 |
| A | 8 | 144 | 10135 | 49.37 | 926 | 904 | 187.0 |
| B | 3 | 112 | 2133064 | 12018.98 | 901 | 878 | 177.4 |
| B | 0 | 189 | 160923 | 902.16 | 901 | 878 | 177.4 |
| B | 0 | 229 | 46977 | 259.86 | 901 | 878 | 177.4 |
| C | 3 | 233 | 489829 | 2321.31 | 897 | 906 | 210.6 |
| C | 14 | 238 | 138723 | 654.33 | 897 | 906 | 210.6 |
| C | 6 | 96 | 32233 | 148.73 | 897 | 906 | 210.6 |
| D | 7 | 238 | 3858671 | 18795.93 | 835 | 808 | 205.2 |
| D | 1 | 52 | 1661403 | 8090.6 | 835 | 808 | 205.2 |
| D | 12 | 218 | 286004 | 1389.51 | 835 | 808 | 205.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

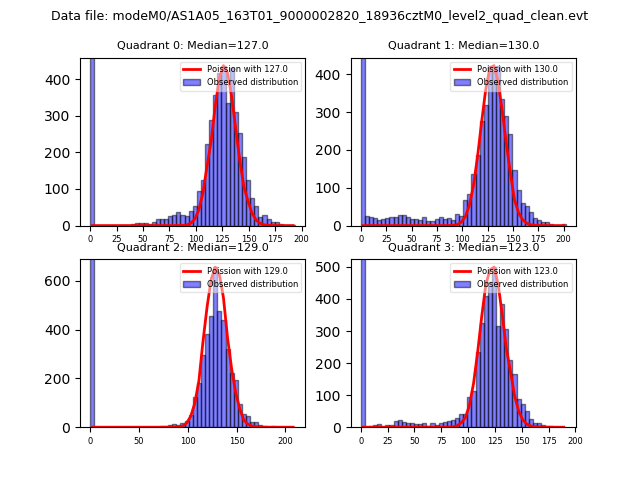

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

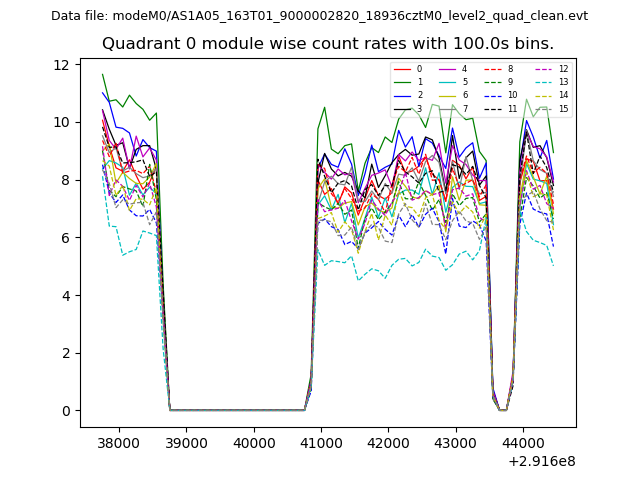

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

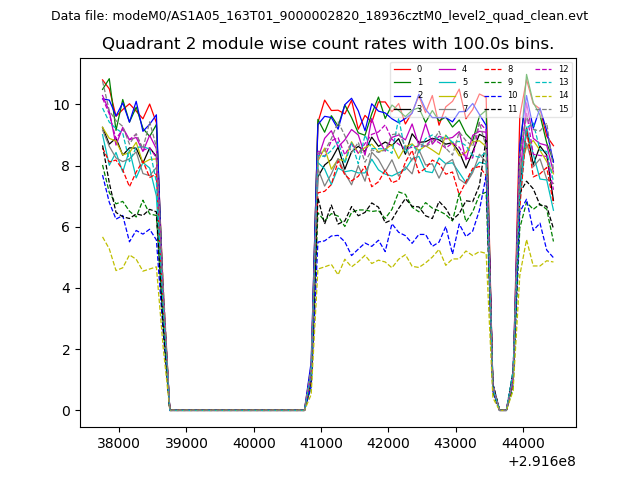

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

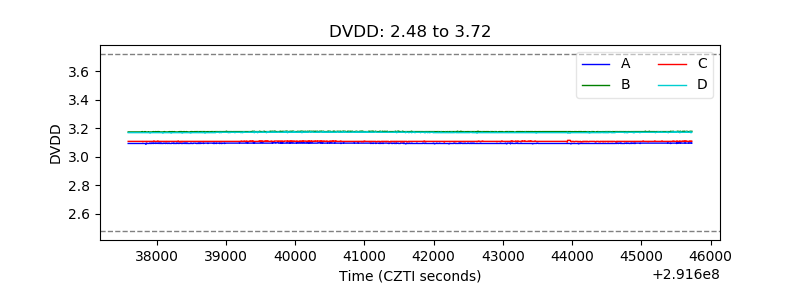

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

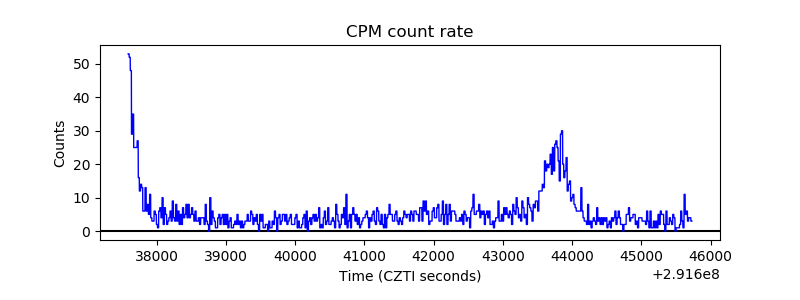

| _CPM_Rate |  |

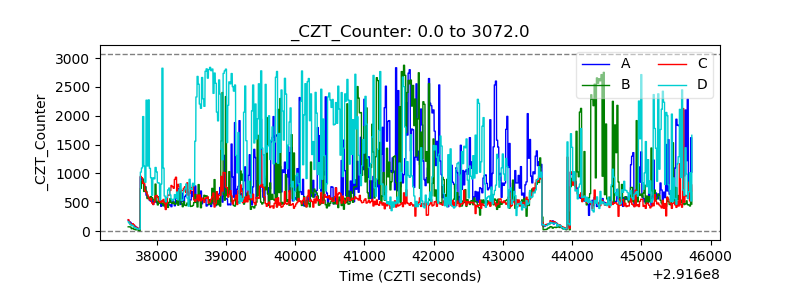

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

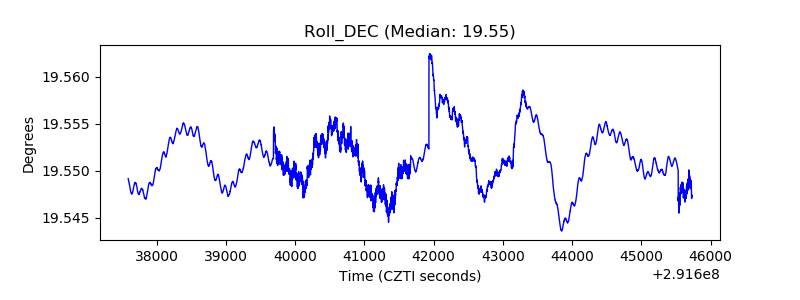

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
