| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000002820_18937cztM0_level2.evt | modeM0/AS1A05_163T01_9000002820_18937cztM0_level2_quad_clean.evt |
| Size (bytes) | 921,265,920 | 85,014,720 |
| Size | 878.6 MB | 81.1 MB |
| Events in quadrant A | 9,019,952 | 486,931 |
| Events in quadrant B | 5,789,593 | 513,292 |
| Events in quadrant C | 4,477,774 | 520,018 |
| Events in quadrant D | 8,079,609 | 502,470 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32331 | 1 |
| B | 0 | 22300 | 1 |
| C | 0 | 18203 | 1 |
| D | 0 | 29466 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7922 | 1431 | 18.063620% |
| B | 7922 | 715 | 9.025499% |
| C | 7922 | 319 | 4.026761% |
| D | 7922 | 1209 | 15.261298% |

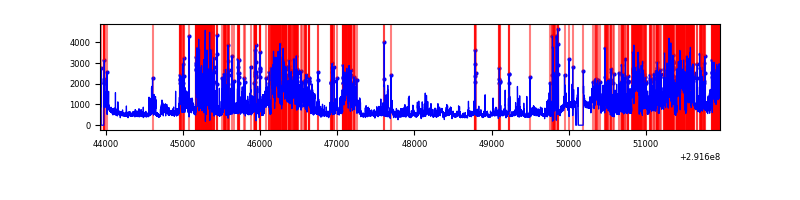

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8037 | 7925 | 841 | 841 | 10.46% | 10.61% |  |
| B | 8037 | 7925 | 317 | 317 | 3.94% | 4.00% |  |
| C | 8037 | 7925 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8037 | 7925 | 804 | 804 | 10.00% | 10.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 5327040 | 27489.49 | 952 | 929 | 193.8 |
| A | 13 | 254 | 12023 | 57.26 | 952 | 929 | 193.8 |
| A | 15 | 174 | 10304 | 48.39 | 952 | 929 | 193.8 |
| B | 3 | 112 | 1634106 | 8646.62 | 966 | 941 | 188.9 |
| B | 0 | 189 | 120887 | 635.04 | 966 | 941 | 188.9 |
| B | 10 | 247 | 73390 | 383.57 | 966 | 941 | 188.9 |
| C | 3 | 233 | 607099 | 2703.64 | 948 | 955 | 224.2 |
| C | 14 | 238 | 143672 | 636.57 | 948 | 955 | 224.2 |
| C | 6 | 96 | 32287 | 139.75 | 948 | 955 | 224.2 |
| D | 7 | 238 | 3230650 | 14170.85 | 933 | 905 | 227.9 |
| D | 1 | 52 | 588785 | 2579.39 | 933 | 905 | 227.9 |
| D | 12 | 218 | 331683 | 1451.32 | 933 | 905 | 227.9 |

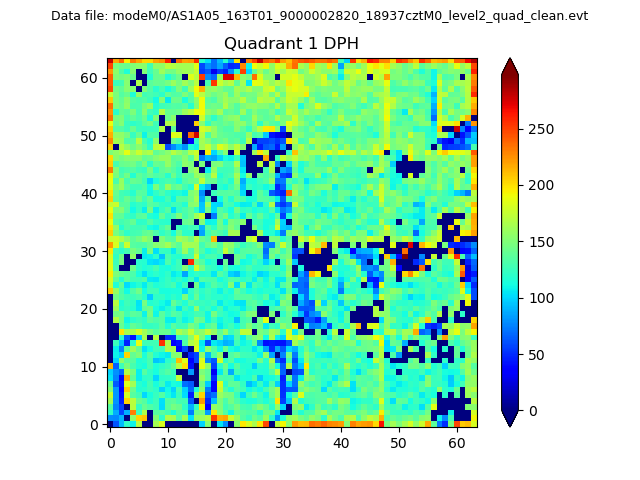

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

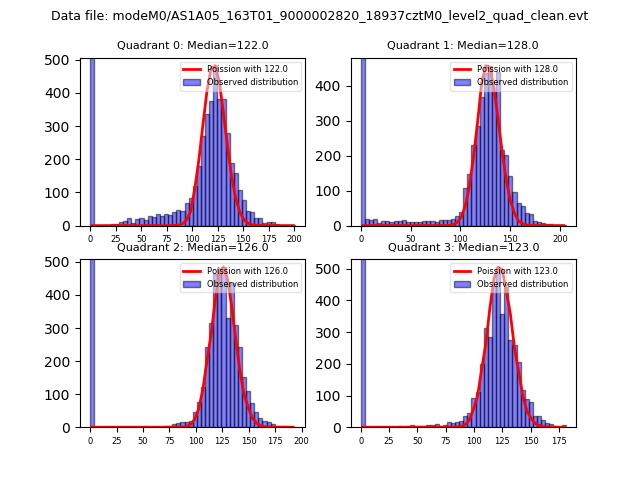

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

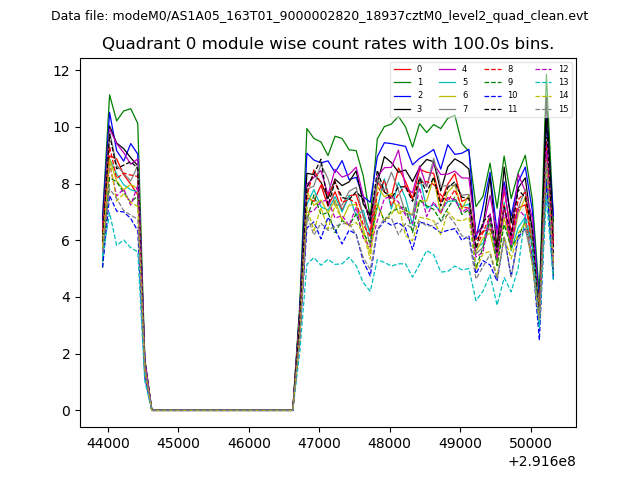

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

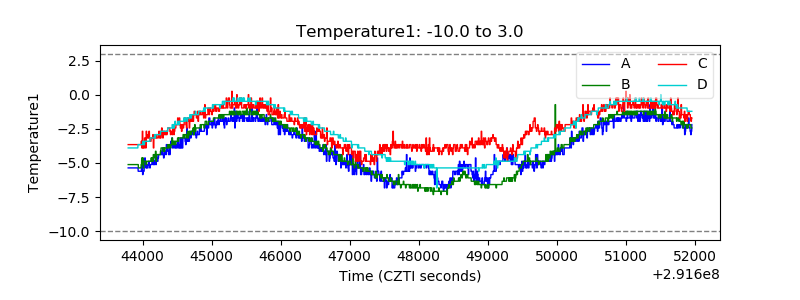

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

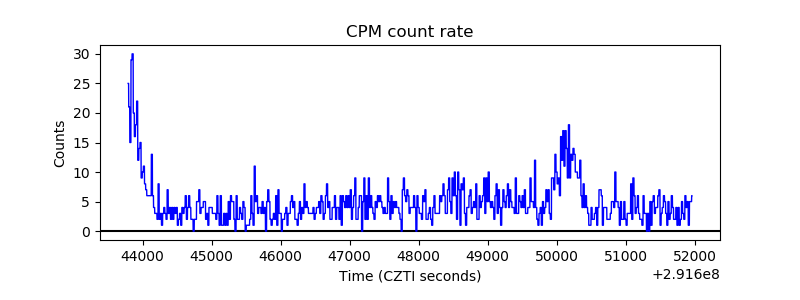

| _CPM_Rate |  |

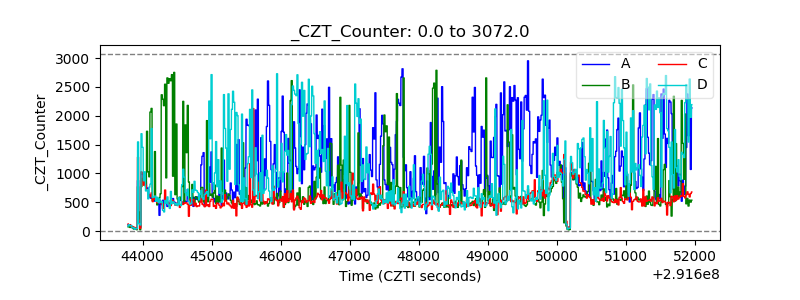

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

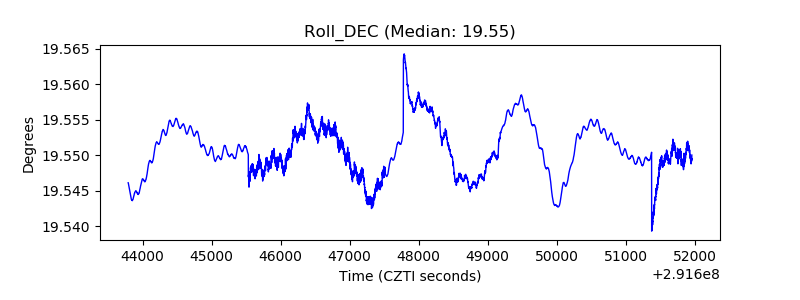

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
