| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_090T01_9000002822_18948cztM0_level2.evt | modeM0/AS1T03_090T01_9000002822_18948cztM0_level2_quad_clean.evt |
| Size (bytes) | 664,994,880 | 87,750,720 |
| Size | 634.2 MB | 83.7 MB |
| Events in quadrant A | 3,706,302 | 573,878 |
| Events in quadrant B | 4,485,057 | 573,571 |
| Events in quadrant C | 3,323,157 | 574,997 |
| Events in quadrant D | 8,198,062 | 493,802 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14729 | 2 |
| B | 0 | 17273 | 2 |
| C | 0 | 13639 | 2 |
| D | 0 | 28755 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6303 | 206 | 3.268285% |
| B | 6303 | 433 | 6.869745% |
| C | 6303 | 166 | 2.633667% |
| D | 6302 | 1710 | 27.134243% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6303 | 55 | 55 | 0.73% | 0.87% |  |
| B | 7583 | 6304 | 175 | 175 | 2.31% | 2.78% |  |
| C | 7583 | 6304 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7582 | 6303 | 1078 | 1078 | 14.22% | 17.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 469681 | 2852.26 | 837 | 821 | 164.4 |
| A | 13 | 254 | 8402 | 46.12 | 837 | 821 | 164.4 |
| A | 0 | 226 | 7366 | 39.81 | 837 | 821 | 164.4 |
| B | 3 | 112 | 1029626 | 6775.63 | 825 | 806 | 151.8 |
| B | 7 | 220 | 123809 | 810.08 | 825 | 806 | 151.8 |
| B | 0 | 189 | 60210 | 391.22 | 825 | 806 | 151.8 |
| C | 14 | 238 | 131025 | 701.46 | 816 | 822 | 185.6 |
| C | 3 | 233 | 11590 | 58.01 | 816 | 822 | 185.6 |
| C | 13 | 61 | 5973 | 27.75 | 816 | 822 | 185.6 |
| D | 7 | 238 | 4295274 | 23600.36 | 760 | 738 | 182.0 |
| D | 12 | 218 | 732672 | 4022.3 | 760 | 738 | 182.0 |
| D | 12 | 233 | 136435 | 745.71 | 760 | 738 | 182.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

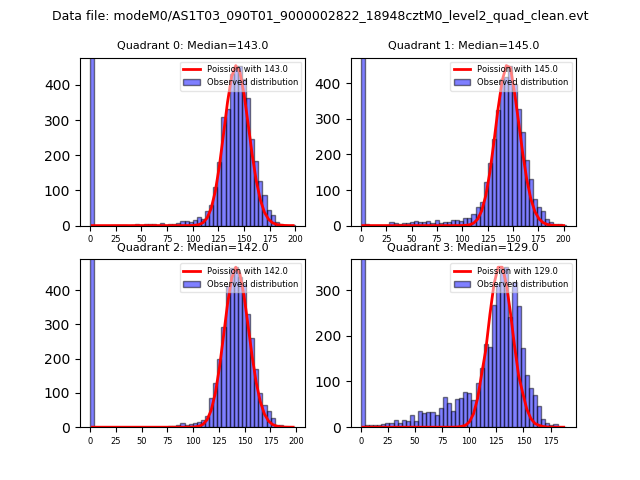

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

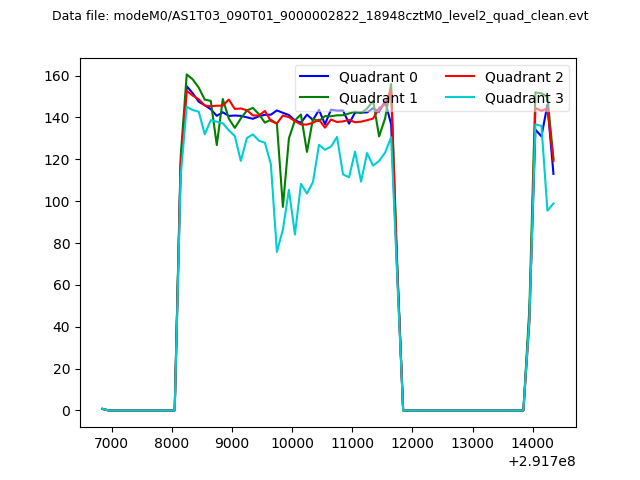

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

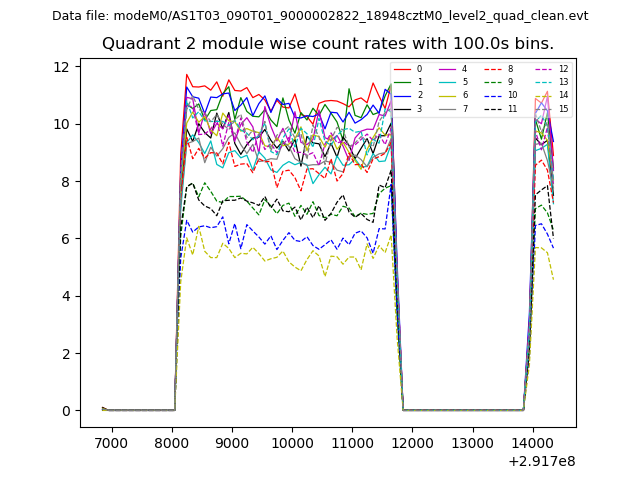

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
