| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000002824_18952cztM0_level2.evt | modeM0/AS1A05_205T01_9000002824_18952cztM0_level2_quad_clean.evt |
| Size (bytes) | 951,670,080 | 79,404,480 |
| Size | 907.6 MB | 75.7 MB |
| Events in quadrant A | 11,320,584 | 279,480 |
| Events in quadrant B | 6,944,450 | 536,783 |
| Events in quadrant C | 4,038,394 | 524,392 |
| Events in quadrant D | 5,981,013 | 509,077 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39034 | 2 |
| B | 0 | 25835 | 4 |
| C | 0 | 16943 | 2 |
| D | 0 | 23148 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7951 | 3318 | 41.730600% |
| B | 7950 | 1171 | 14.729560% |
| C | 7950 | 238 | 2.993711% |
| D | 7950 | 536 | 6.742138% |

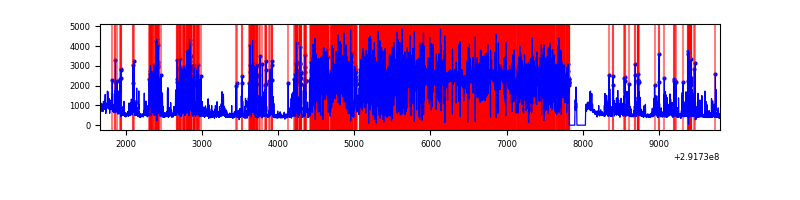

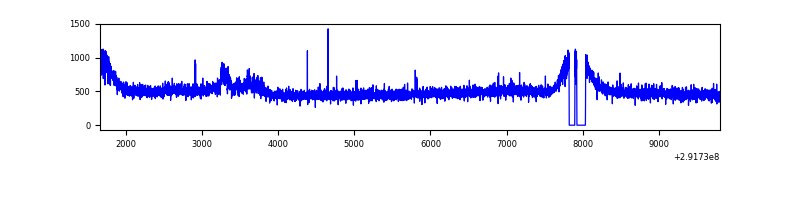

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8141 | 7952 | 2513 | 2513 | 30.87% | 31.60% |  |
| B | 8140 | 7952 | 555 | 555 | 6.82% | 6.98% |  |
| C | 8140 | 7952 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8140 | 7952 | 273 | 273 | 3.35% | 3.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 8341212 | 52991.53 | 772 | 754 | 157.4 |
| A | 0 | 226 | 6639 | 37.39 | 772 | 754 | 157.4 |
| A | 13 | 254 | 6189 | 34.53 | 772 | 754 | 157.4 |
| B | 3 | 112 | 3031627 | 16219.49 | 949 | 925 | 186.9 |
| B | 0 | 189 | 87999 | 465.99 | 949 | 925 | 186.9 |
| B | 0 | 229 | 32497 | 168.96 | 949 | 925 | 186.9 |
| C | 3 | 233 | 162742 | 717.95 | 955 | 958 | 225.3 |
| C | 14 | 238 | 146800 | 647.21 | 955 | 958 | 225.3 |
| C | 6 | 96 | 7961 | 31.08 | 955 | 958 | 225.3 |
| D | 7 | 238 | 1500330 | 6376.84 | 958 | 930 | 235.1 |
| D | 12 | 218 | 415002 | 1761.02 | 958 | 930 | 235.1 |
| D | 1 | 52 | 182377 | 771.68 | 958 | 930 | 235.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

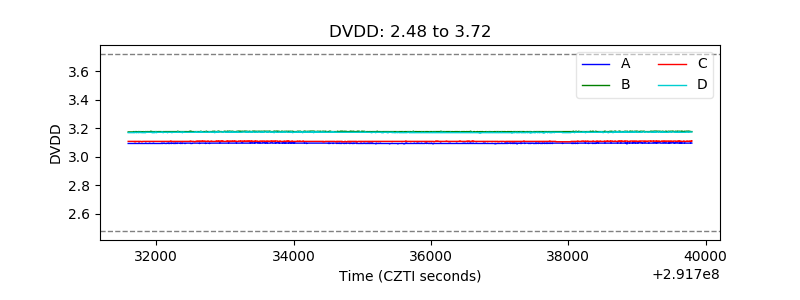

| D_VDD |  |

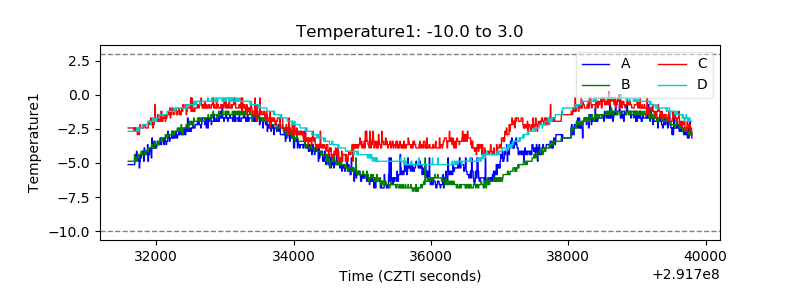

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

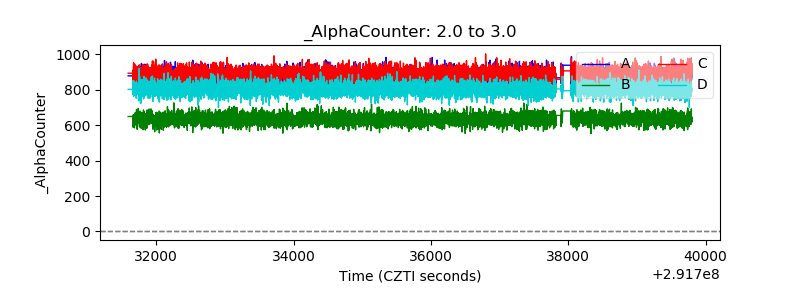

| Alpha Counter |  |

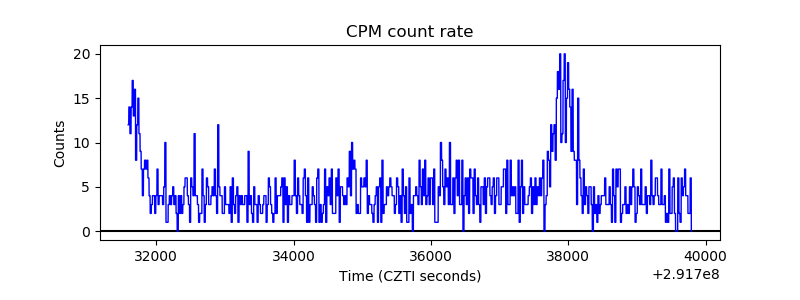

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

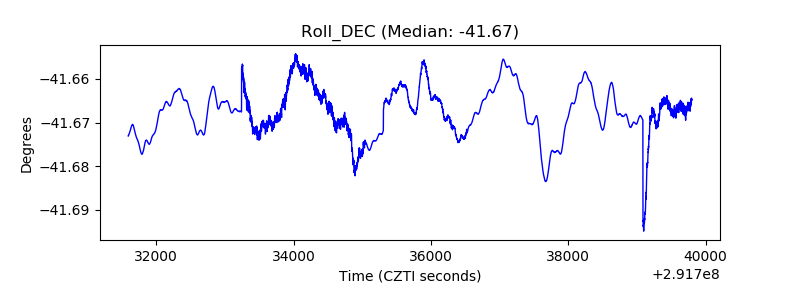

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
