| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000002824_18955cztM0_level2.evt | modeM0/AS1A05_205T01_9000002824_18955cztM0_level2_quad_clean.evt |
| Size (bytes) | 984,542,400 | 168,860,160 |
| Size | 938.9 MB | 161.0 MB |
| Events in quadrant A | 8,286,406 | 1,066,960 |
| Events in quadrant B | 7,813,241 | 1,079,020 |
| Events in quadrant C | 6,198,242 | 1,052,411 |
| Events in quadrant D | 6,651,442 | 1,029,209 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 262 | 0 |
| B | 0 | 262 | 0 |
| C | 0 | 262 | 0 |
| D | 0 | 262 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32839 | 3 |
| B | 0 | 31633 | 3 |
| C | 0 | 26620 | 3 |
| D | 0 | 28137 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12832 | 603 | 4.699190% |
| B | 12832 | 605 | 4.714776% |
| C | 12832 | 184 | 1.433915% |
| D | 12832 | 144 | 1.122195% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

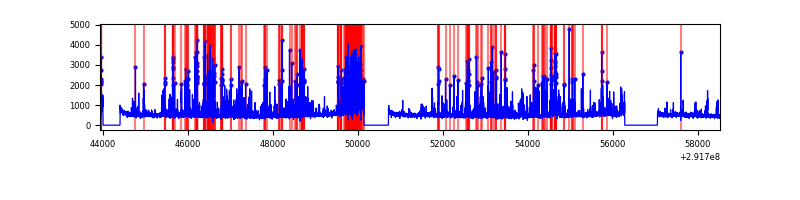

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14577 | 12835 | 318 | 318 | 2.18% | 2.48% |  |
| B | 14577 | 12835 | 232 | 232 | 1.59% | 1.81% |  |
| C | 14577 | 12835 | 7 | 7 | 0.05% | 0.05% |  |
| D | 14577 | 12835 | 31 | 31 | 0.21% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 2317400 | 7478.1 | 1520 | 1487 | 309.7 |
| A | 6 | 16 | 100957 | 321.19 | 1520 | 1487 | 309.7 |
| A | 0 | 226 | 13236 | 37.94 | 1520 | 1487 | 309.7 |
| B | 3 | 112 | 1359972 | 4682.8 | 1522 | 1482 | 290.1 |
| B | 7 | 220 | 219213 | 750.53 | 1522 | 1482 | 290.1 |
| B | 0 | 189 | 106762 | 362.9 | 1522 | 1482 | 290.1 |
| C | 14 | 238 | 230751 | 657.72 | 1486 | 1495 | 348.6 |
| C | 3 | 233 | 91802 | 259.09 | 1486 | 1495 | 348.6 |
| C | 6 | 96 | 85011 | 239.6 | 1486 | 1495 | 348.6 |
| D | 7 | 238 | 382337 | 1029.25 | 1504 | 1457 | 370.1 |
| D | 12 | 218 | 260244 | 699.32 | 1504 | 1457 | 370.1 |
| D | 1 | 52 | 161793 | 433.27 | 1504 | 1457 | 370.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

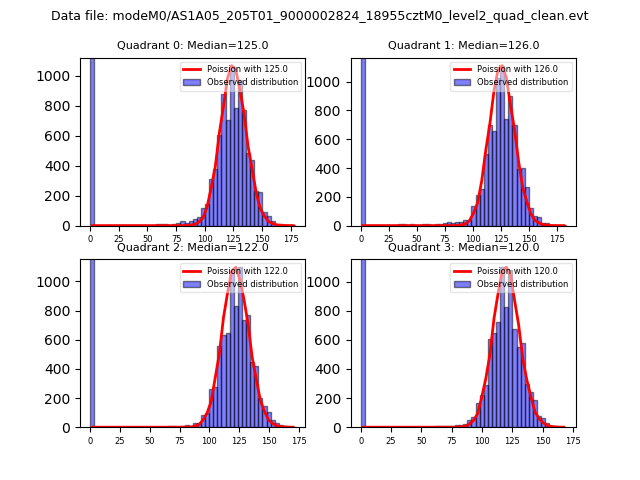

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

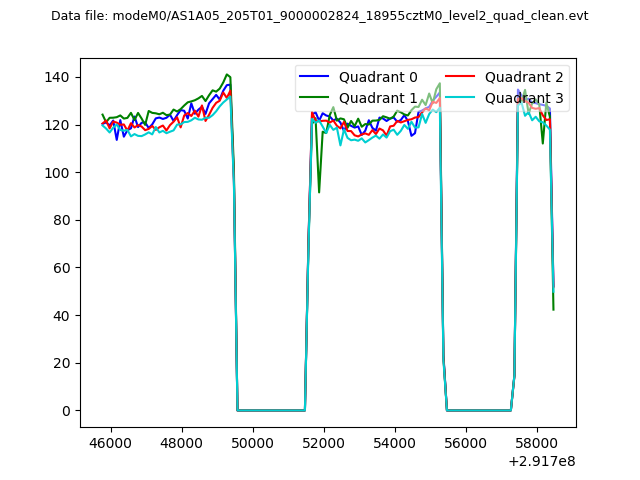

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

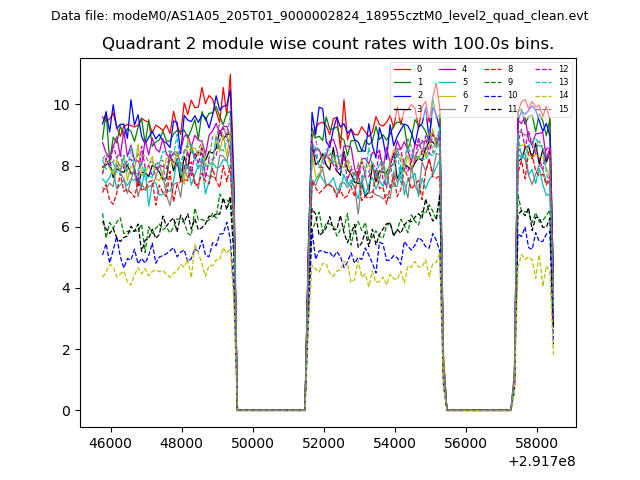

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

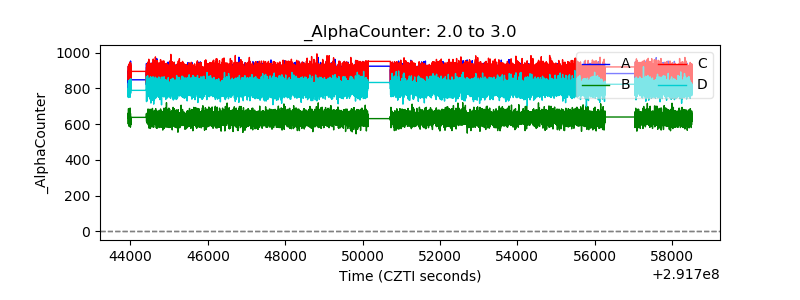

| Alpha Counter |  |

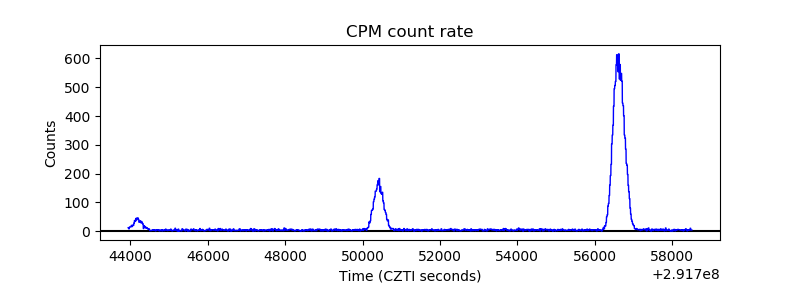

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

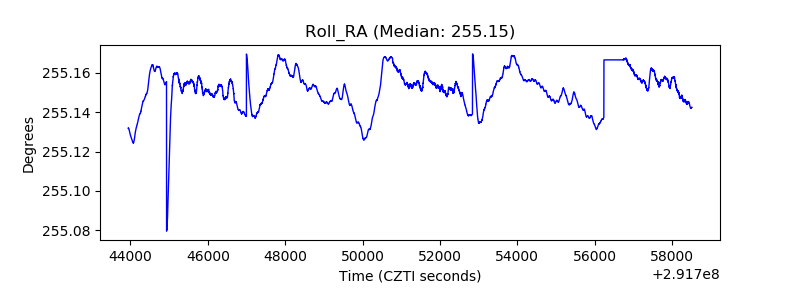

| _Roll_RA |  |

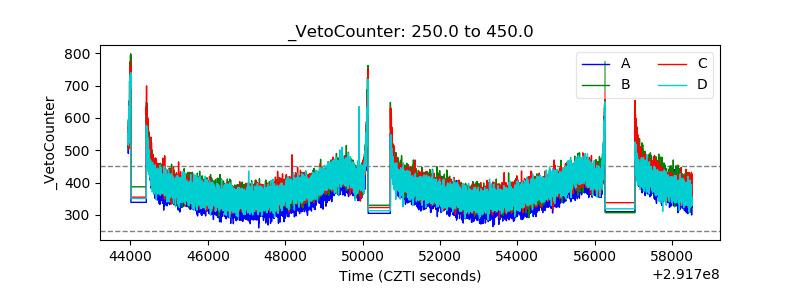

| Veto Counter |  |
