| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000002824_18965cztM0_level2.evt | modeM0/AS1A05_205T01_9000002824_18965cztM0_level2_quad_clean.evt |
| Size (bytes) | 674,231,040 | 92,623,680 |
| Size | 643.0 MB | 88.3 MB |
| Events in quadrant A | 3,712,324 | 578,345 |
| Events in quadrant B | 4,476,201 | 582,760 |
| Events in quadrant C | 3,731,387 | 569,414 |
| Events in quadrant D | 7,978,907 | 539,829 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15996 | 2 |
| B | 0 | 18065 | 3 |
| C | 0 | 15921 | 2 |
| D | 0 | 28835 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7679 | 173 | 2.252898% |
| B | 7679 | 307 | 3.997916% |
| C | 7679 | 172 | 2.239875% |
| D | 7679 | 1504 | 19.585884% |

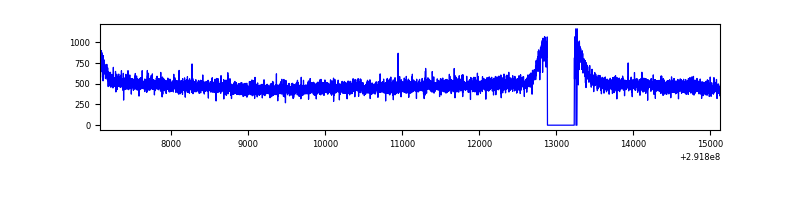

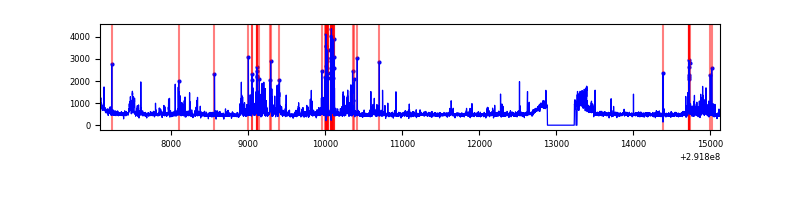

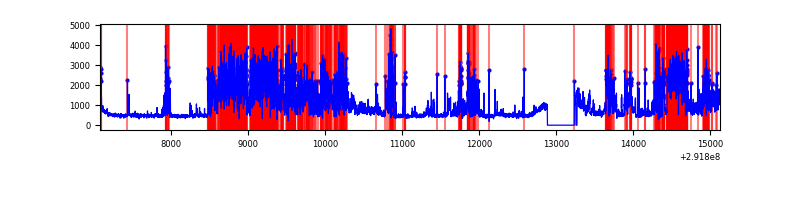

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8044 | 7681 | 6 | 6 | 0.07% | 0.08% |  |
| B | 8044 | 7681 | 53 | 53 | 0.66% | 0.69% |  |
| C | 8044 | 7681 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8044 | 7681 | 995 | 995 | 12.37% | 12.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 28502 | 143.51 | 953 | 930 | 192.1 |
| A | 13 | 254 | 9504 | 44.63 | 953 | 930 | 192.1 |
| A | 14 | 235 | 8778 | 40.85 | 953 | 930 | 192.1 |
| B | 3 | 112 | 394590 | 2167.56 | 939 | 914 | 181.6 |
| B | 7 | 220 | 199373 | 1092.7 | 939 | 914 | 181.6 |
| B | 0 | 189 | 53914 | 291.82 | 939 | 914 | 181.6 |
| C | 14 | 238 | 140229 | 649.14 | 919 | 922 | 214.6 |
| C | 7 | 220 | 7068 | 28.64 | 919 | 922 | 214.6 |
| C | 13 | 61 | 6430 | 25.67 | 919 | 922 | 214.6 |
| D | 7 | 238 | 3607166 | 16909.33 | 872 | 845 | 213.3 |
| D | 1 | 52 | 546476 | 2558.36 | 872 | 845 | 213.3 |
| D | 12 | 218 | 454456 | 2126.89 | 872 | 845 | 213.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

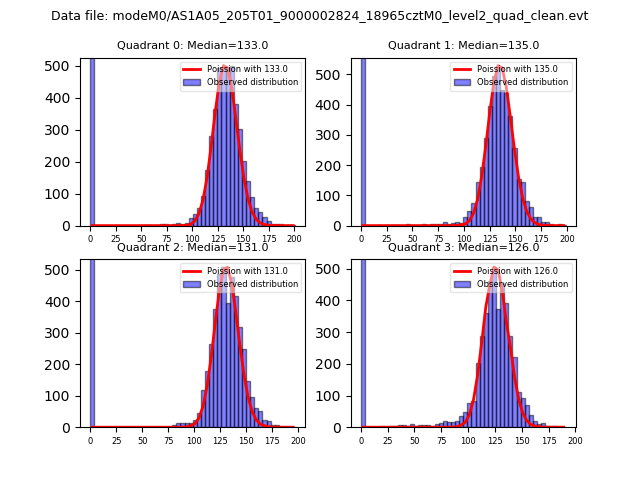

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

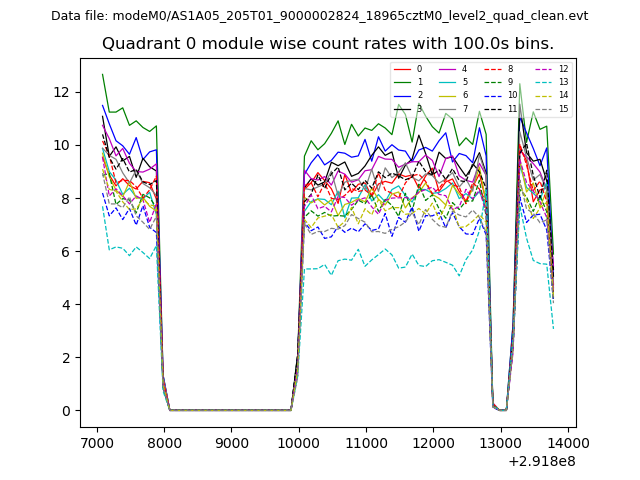

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

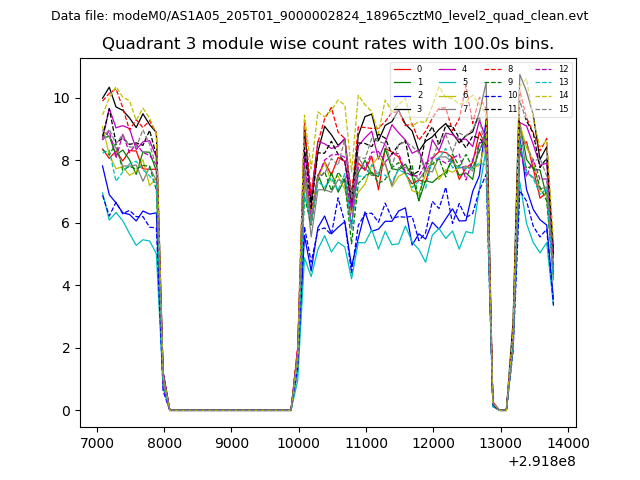

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

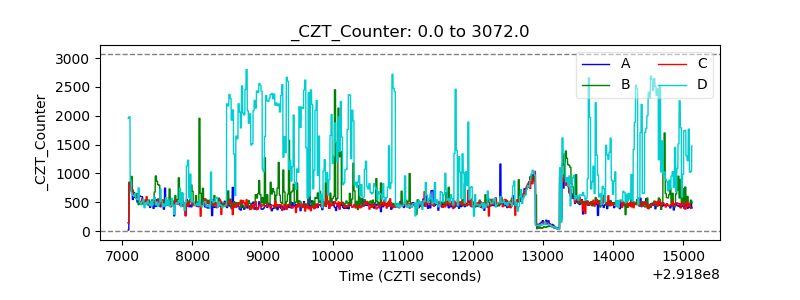

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
