| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000002824_18967cztM0_level2.evt | modeM0/AS1A05_205T01_9000002824_18967cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,243,840 | 85,968,000 |
| Size | 675.4 MB | 82.0 MB |
| Events in quadrant A | 3,964,567 | 527,112 |
| Events in quadrant B | 4,963,701 | 530,238 |
| Events in quadrant C | 3,900,694 | 519,985 |
| Events in quadrant D | 8,084,270 | 475,051 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17045 | 3 |
| B | 0 | 19809 | 3 |
| C | 0 | 16659 | 3 |
| D | 0 | 29335 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7914 | 334 | 4.220369% |
| B | 7915 | 554 | 6.999368% |
| C | 7915 | 298 | 3.765003% |
| D | 7915 | 1285 | 16.234997% |

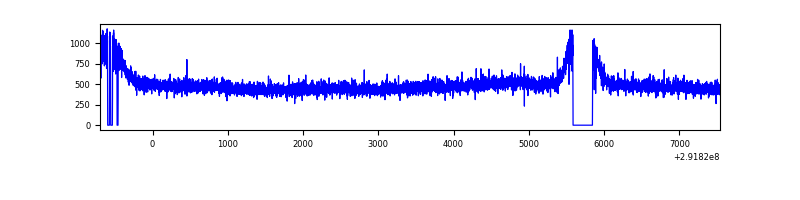

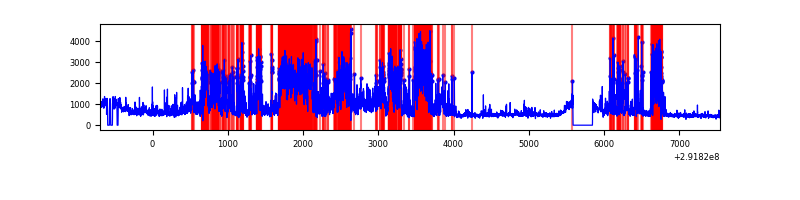

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8239 | 7918 | 14 | 14 | 0.17% | 0.18% |  |
| B | 8240 | 7919 | 141 | 141 | 1.71% | 1.78% |  |
| C | 8240 | 7919 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8240 | 7919 | 960 | 960 | 11.65% | 12.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 141222 | 690.14 | 992 | 966 | 203.2 |
| A | 13 | 254 | 9778 | 43.36 | 992 | 966 | 203.2 |
| A | 0 | 226 | 8582 | 37.48 | 992 | 966 | 203.2 |
| B | 3 | 112 | 687457 | 3605.79 | 978 | 951 | 190.4 |
| B | 7 | 220 | 355817 | 1863.89 | 978 | 951 | 190.4 |
| B | 12 | 111 | 22821 | 114.87 | 978 | 951 | 190.4 |
| C | 14 | 238 | 145389 | 638.14 | 954 | 957 | 226.3 |
| C | 8 | 128 | 11834 | 48.06 | 954 | 957 | 226.3 |
| C | 3 | 233 | 9904 | 39.53 | 954 | 957 | 226.3 |
| D | 12 | 218 | 2440680 | 10624.94 | 932 | 906 | 229.6 |
| D | 7 | 238 | 962099 | 4185.89 | 932 | 906 | 229.6 |
| D | 1 | 52 | 928459 | 4039.39 | 932 | 906 | 229.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

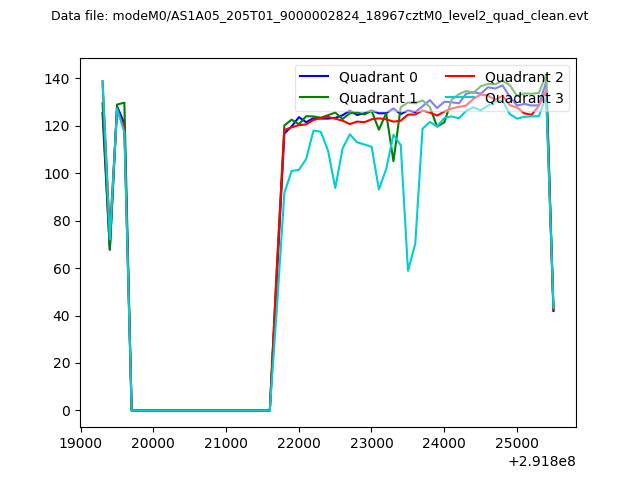

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

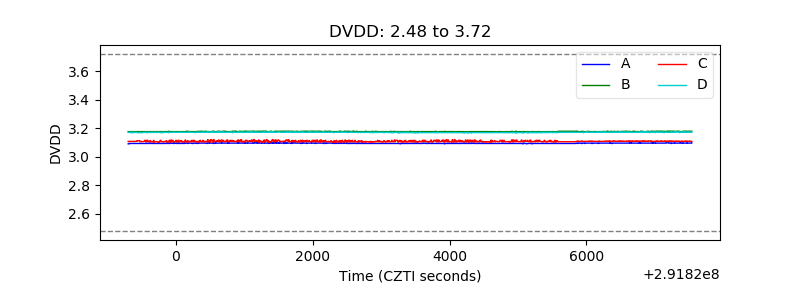

| D_VDD |  |

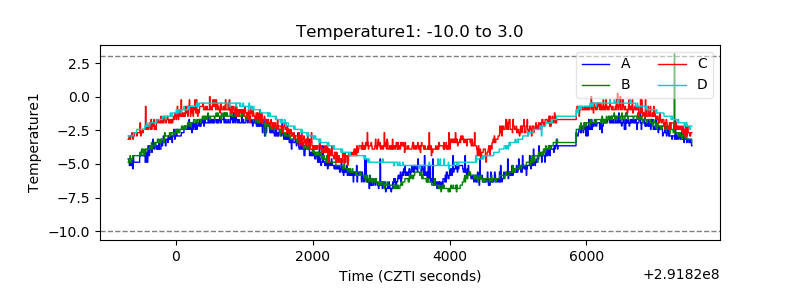

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

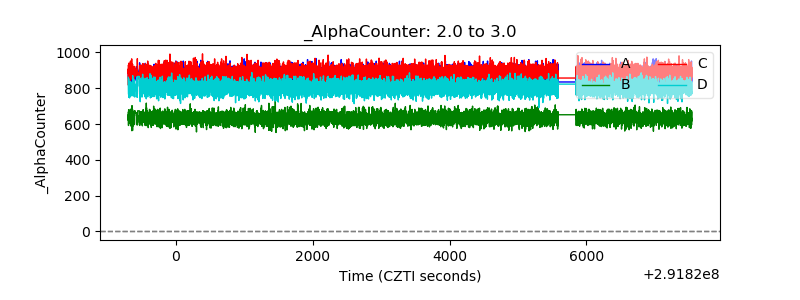

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

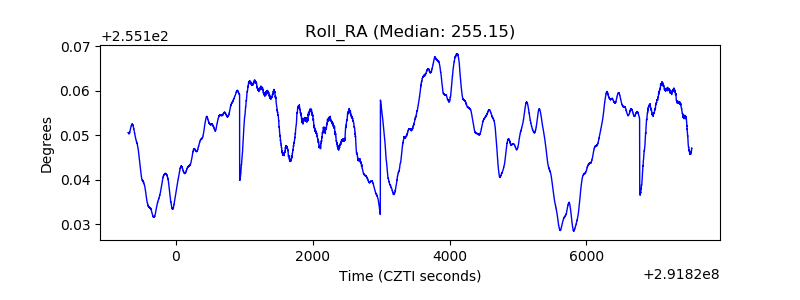

| _Roll_RA |  |

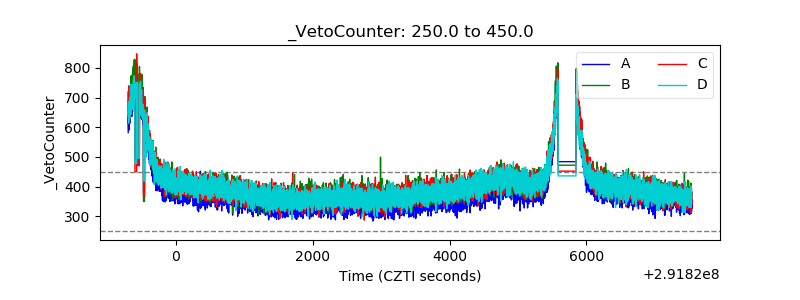

| Veto Counter |  |
