| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_205T01_9000002824_18973cztM0_level2.evt | modeM0/AS1A05_205T01_9000002824_18973cztM0_level2_quad_clean.evt |
| Size (bytes) | 165,415,680 | 45,748,800 |
| Size | 157.8 MB | 43.6 MB |
| Events in quadrant A | 1,155,341 | 307,919 |
| Events in quadrant B | 1,140,802 | 316,612 |
| Events in quadrant C | 1,116,855 | 306,061 |
| Events in quadrant D | 1,438,867 | 289,715 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4982 | 1 |
| B | 0 | 4913 | 1 |
| C | 0 | 4774 | 1 |
| D | 0 | 5963 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2285 | 25 | 1.094092% |
| B | 2285 | 15 | 0.656455% |
| C | 2285 | 15 | 0.656455% |
| D | 2285 | 90 | 3.938731% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2285 | 2285 | 22 | 22 | 0.96% | 0.96% |  |
| B | 2285 | 2285 | 6 | 6 | 0.26% | 0.26% |  |
| C | 2285 | 2285 | 1 | 1 | 0.04% | 0.04% |  |
| D | 2285 | 2285 | 62 | 62 | 2.71% | 2.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 98134 | 1719.89 | 273 | 268 | 56.9 |
| A | 11 | 29 | 4116 | 67.62 | 273 | 268 | 56.9 |
| A | 0 | 226 | 2350 | 36.59 | 273 | 268 | 56.9 |
| B | 3 | 112 | 19439 | 351.81 | 280 | 273 | 54.5 |
| B | 5 | 172 | 7242 | 127.92 | 280 | 273 | 54.5 |
| B | 12 | 111 | 6419 | 112.82 | 280 | 273 | 54.5 |
| C | 14 | 238 | 40707 | 621.39 | 269 | 272 | 65.1 |
| C | 10 | 1 | 9090 | 135.51 | 269 | 272 | 65.1 |
| C | 0 | 207 | 6649 | 98.0 | 269 | 272 | 65.1 |
| D | 12 | 218 | 262690 | 4021.47 | 261 | 253 | 65.3 |
| D | 7 | 238 | 162402 | 2484.7 | 261 | 253 | 65.3 |
| D | 9 | 68 | 14679 | 221.06 | 261 | 253 | 65.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

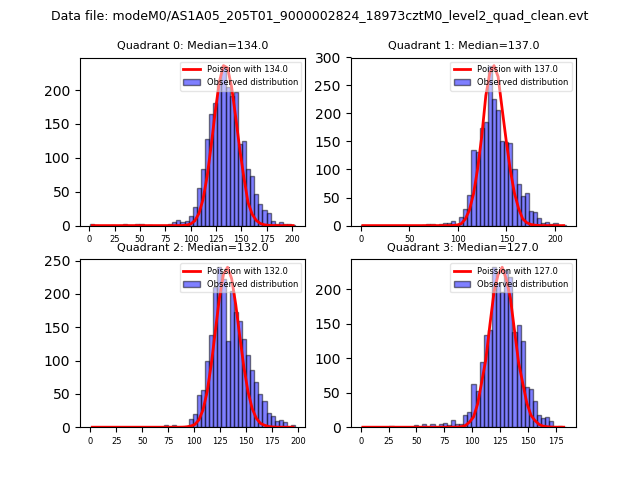

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

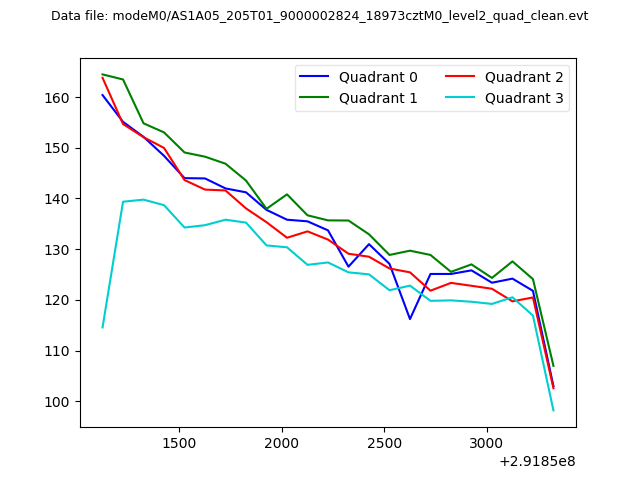

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

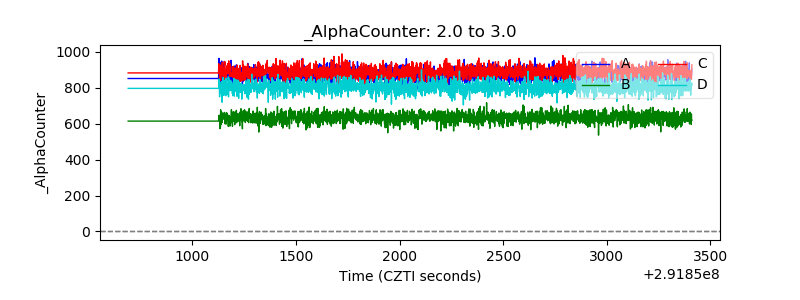

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

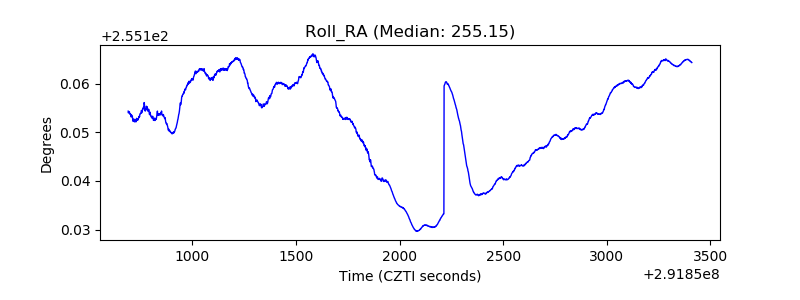

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
