| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_132T01_9000002828_18985cztM0_level2.evt | modeM0/AS1A05_132T01_9000002828_18985cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,260,480 | 90,924,480 |
| Size | 530.5 MB | 86.7 MB |
| Events in quadrant A | 3,138,892 | 581,750 |
| Events in quadrant B | 3,693,266 | 589,285 |
| Events in quadrant C | 3,426,269 | 568,962 |
| Events in quadrant D | 6,136,011 | 548,855 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13607 | 1 |
| B | 0 | 15272 | 1 |
| C | 0 | 14349 | 1 |
| D | 0 | 22812 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6662 | 19 | 0.285200% |
| B | 6663 | 171 | 2.566412% |
| C | 6663 | 67 | 1.005553% |
| D | 6663 | 713 | 10.700885% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6663 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7588 | 6664 | 86 | 86 | 1.13% | 1.29% |  |
| C | 7588 | 6664 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7588 | 6664 | 472 | 472 | 6.22% | 7.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 16872 | 97.62 | 808 | 791 | 164.7 |
| A | 13 | 254 | 7573 | 41.17 | 808 | 791 | 164.7 |
| A | 0 | 226 | 6921 | 37.21 | 808 | 791 | 164.7 |
| B | 3 | 112 | 439419 | 2795.71 | 806 | 786 | 156.9 |
| B | 7 | 220 | 33760 | 210.17 | 806 | 786 | 156.9 |
| B | 4 | 80 | 20142 | 123.37 | 806 | 786 | 156.9 |
| C | 0 | 207 | 133139 | 719.42 | 780 | 785 | 184.0 |
| C | 14 | 238 | 120543 | 650.95 | 780 | 785 | 184.0 |
| C | 3 | 233 | 77682 | 417.98 | 780 | 785 | 184.0 |
| D | 7 | 238 | 2295781 | 12461.82 | 751 | 729 | 184.2 |
| D | 1 | 52 | 697641 | 3784.14 | 751 | 729 | 184.2 |
| D | 7 | 96 | 123978 | 669.23 | 751 | 729 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

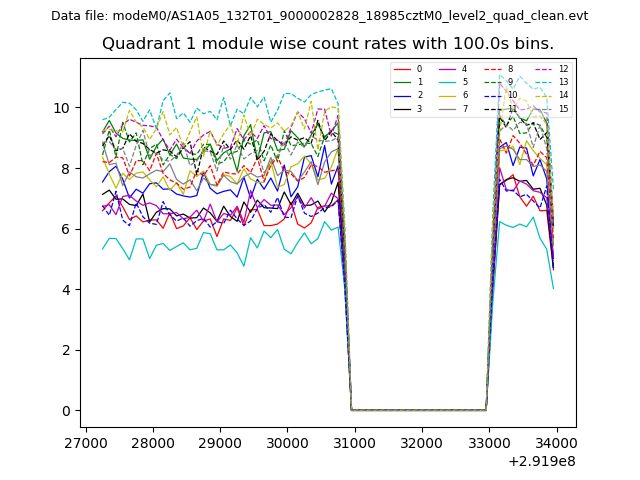

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

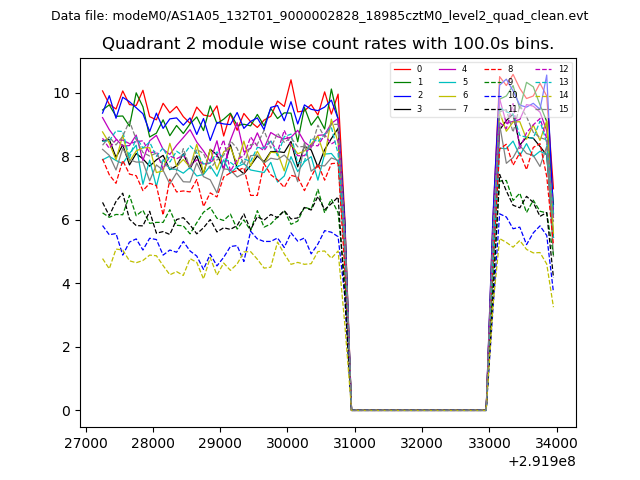

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

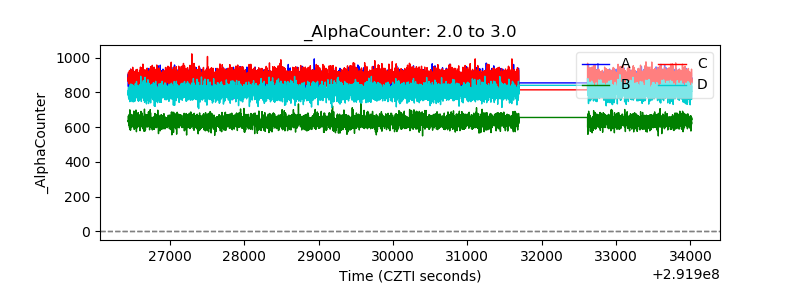

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

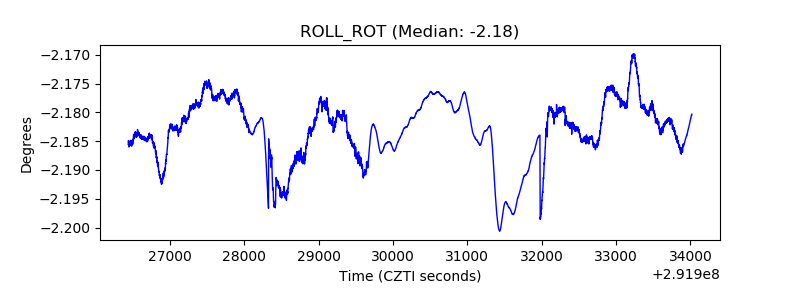

| _ROLL_ROT |  |

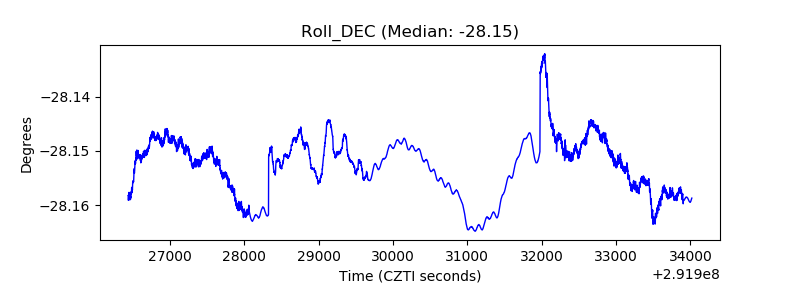

| _Roll_DEC |  |

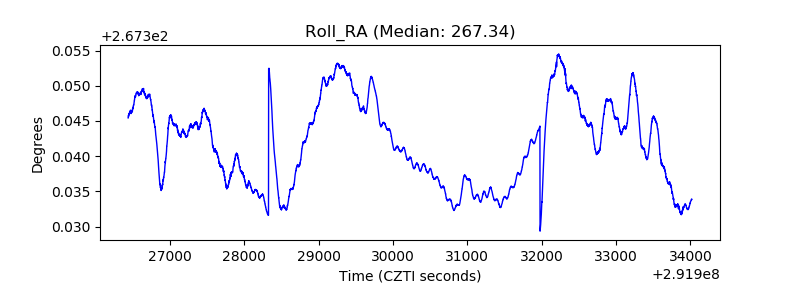

| _Roll_RA |  |

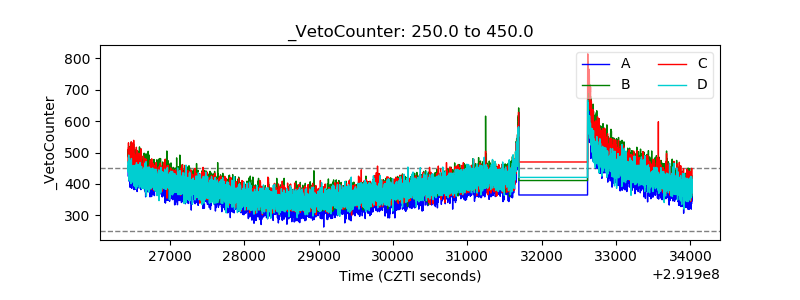

| Veto Counter |  |
