| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_132T01_9000002828_18994cztM0_level2.evt | modeM0/AS1A05_132T01_9000002828_18994cztM0_level2_quad_clean.evt |
| Size (bytes) | 643,910,400 | 97,248,960 |
| Size | 614.1 MB | 92.7 MB |
| Events in quadrant A | 3,663,966 | 614,687 |
| Events in quadrant B | 4,302,501 | 619,643 |
| Events in quadrant C | 4,048,821 | 602,397 |
| Events in quadrant D | 6,966,058 | 574,364 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15821 | 2 |
| B | 0 | 17532 | 2 |
| C | 0 | 16651 | 2 |
| D | 0 | 25965 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7670 | 128 | 1.668840% |
| B | 7670 | 224 | 2.920469% |
| C | 7670 | 158 | 2.059974% |
| D | 7670 | 671 | 8.748370% |

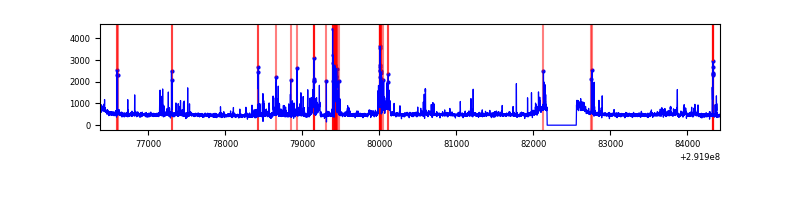

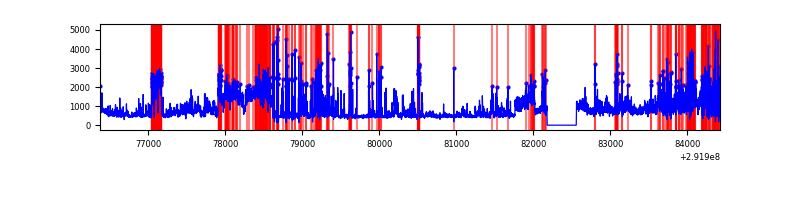

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8050 | 7671 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8050 | 7671 | 58 | 58 | 0.72% | 0.76% |  |
| C | 8050 | 7671 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8049 | 7670 | 433 | 433 | 5.38% | 5.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 13757 | 66.83 | 944 | 921 | 192.1 |
| A | 0 | 226 | 8155 | 37.67 | 944 | 921 | 192.1 |
| A | 13 | 254 | 7382 | 33.64 | 944 | 921 | 192.1 |
| B | 3 | 112 | 455551 | 2537.77 | 936 | 910 | 179.1 |
| B | 7 | 220 | 69739 | 384.2 | 936 | 910 | 179.1 |
| B | 4 | 216 | 44341 | 242.43 | 936 | 910 | 179.1 |
| C | 3 | 233 | 345155 | 1614.87 | 910 | 916 | 213.2 |
| C | 14 | 238 | 137998 | 643.07 | 910 | 916 | 213.2 |
| C | 8 | 208 | 10804 | 46.39 | 910 | 916 | 213.2 |
| D | 7 | 238 | 1879618 | 8479.1 | 903 | 876 | 221.6 |
| D | 1 | 52 | 1537897 | 6936.85 | 903 | 876 | 221.6 |
| D | 7 | 38 | 91619 | 409.54 | 903 | 876 | 221.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

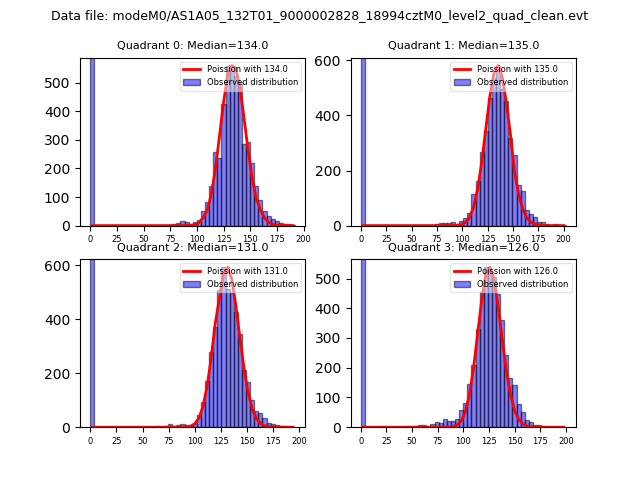

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

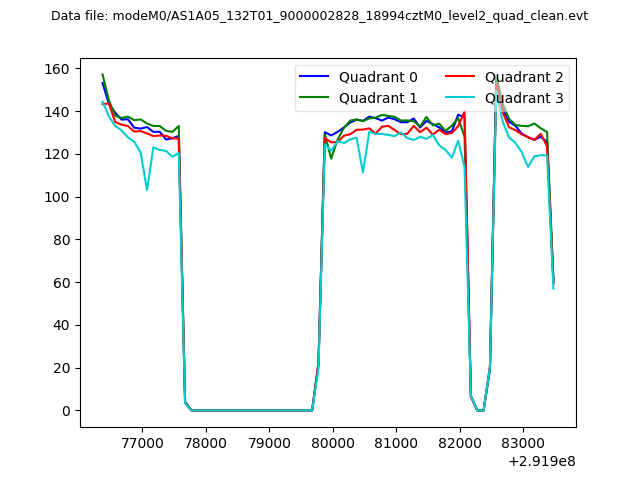

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

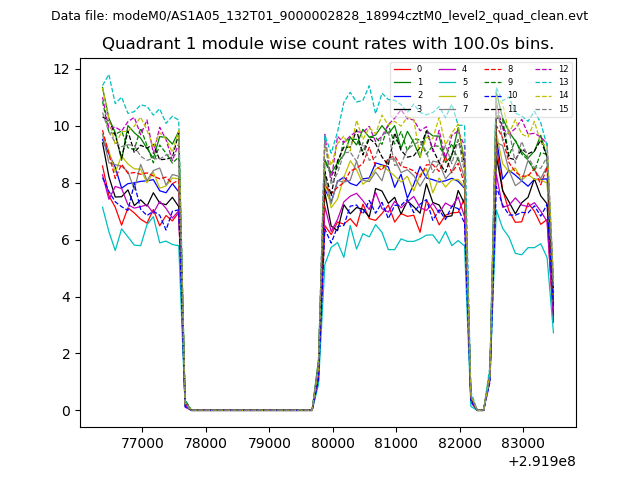

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

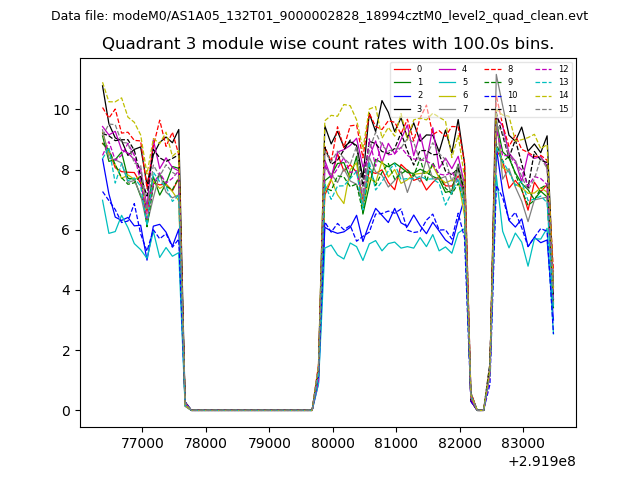

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

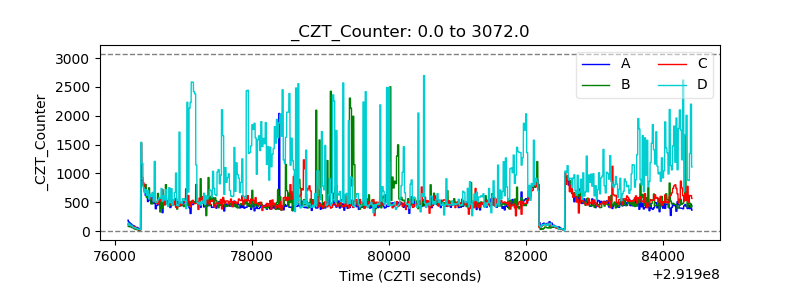

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

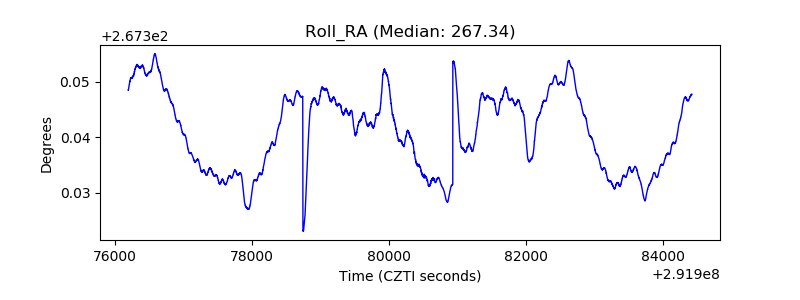

| _Roll_RA |  |
| Veto Counter |  |
