| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_132T01_9000002828_19172cztM0_level2.evt | modeM0/AS1A05_132T01_9000002828_19172cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,387,370,880 | 154,373,760 |
| Size | 1.3 GB | 147.2 MB |
| Events in quadrant A | 6,042,606 | 1,022,914 |
| Events in quadrant B | 6,326,598 | 1,047,560 |
| Events in quadrant C | 7,593,070 | 1,017,809 |
| Events in quadrant D | 21,188,559 | 697,935 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26232 | 3 |
| B | 0 | 26820 | 3 |
| C | 0 | 30367 | 3 |
| D | 0 | 71640 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12837 | 134 | 1.043858% |
| B | 12838 | 162 | 1.261879% |
| C | 12838 | 353 | 2.749649% |
| D | 12837 | 6395 | 49.816935% |

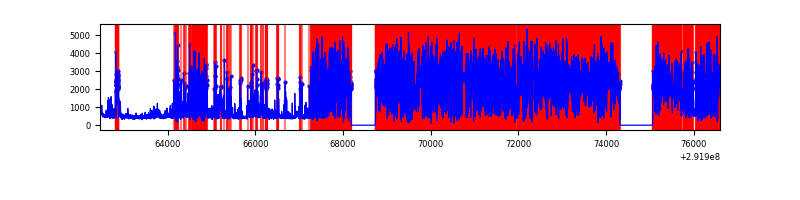

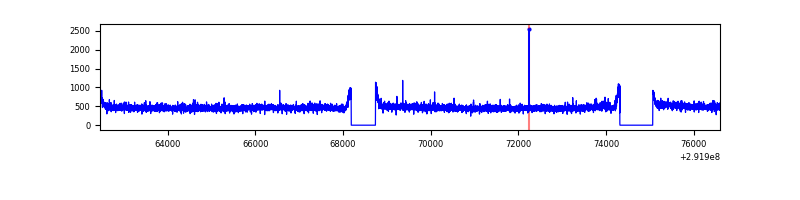

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14142 | 12839 | 1 | 1 | 0.01% | 0.01% |  |
| B | 14143 | 12840 | 9 | 9 | 0.06% | 0.07% |  |
| C | 14143 | 12840 | 74 | 74 | 0.52% | 0.58% |  |
| D | 14142 | 12837 | 5390 | 5390 | 38.11% | 41.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 47373 | 146.49 | 1547 | 1514 | 313.0 |
| A | 11 | 29 | 29983 | 90.94 | 1547 | 1514 | 313.0 |
| A | 13 | 254 | 17515 | 51.11 | 1547 | 1514 | 313.0 |
| B | 7 | 220 | 126427 | 423.61 | 1543 | 1500 | 294.9 |
| B | 6 | 36 | 42787 | 140.0 | 1543 | 1500 | 294.9 |
| B | 0 | 189 | 38107 | 124.13 | 1543 | 1500 | 294.9 |
| C | 3 | 233 | 1554631 | 4435.23 | 1488 | 1499 | 350.2 |
| C | 14 | 238 | 228520 | 648.3 | 1488 | 1499 | 350.2 |
| C | 13 | 61 | 10373 | 25.34 | 1488 | 1499 | 350.2 |
| D | 10 | 66 | 15212637 | 57231.86 | 1105 | 1075 | 265.8 |
| D | 11 | 176 | 1495942 | 5624.28 | 1105 | 1075 | 265.8 |
| D | 1 | 52 | 98149 | 365.23 | 1105 | 1075 | 265.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

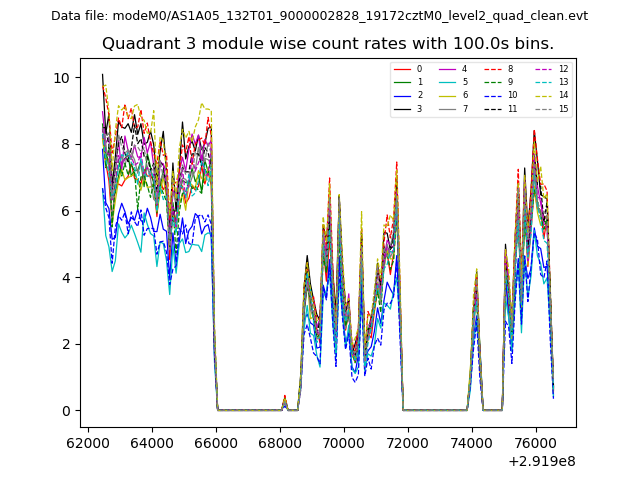

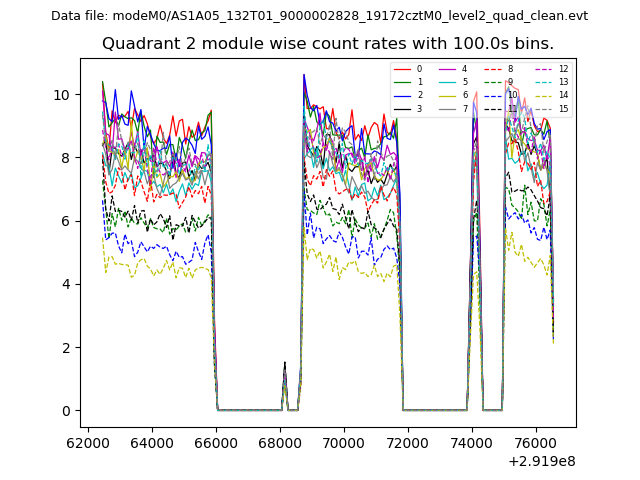

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

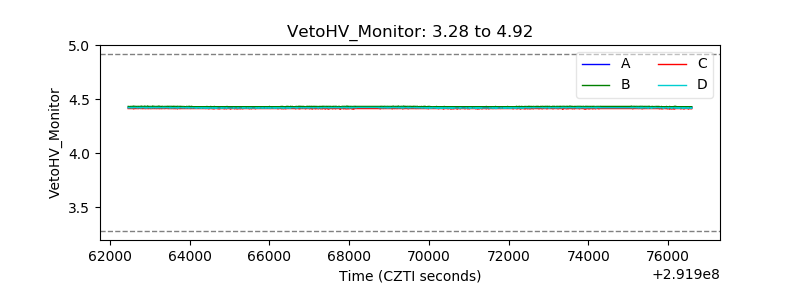

| Veto HV Monitor |  |
| Veto LLD |  |

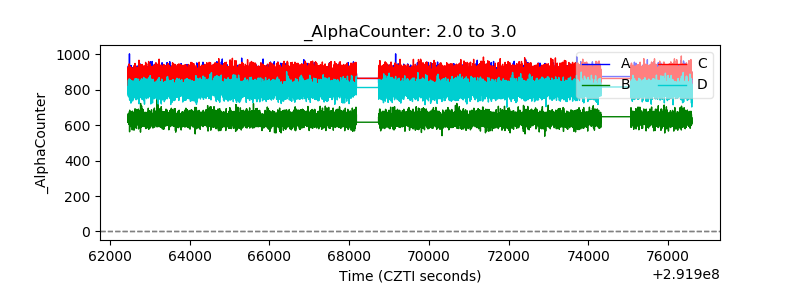

| Alpha Counter |  |

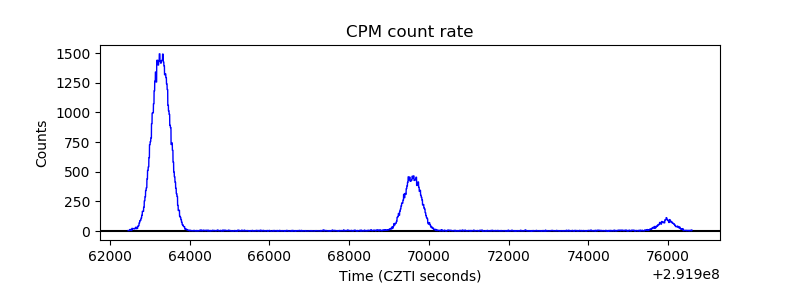

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

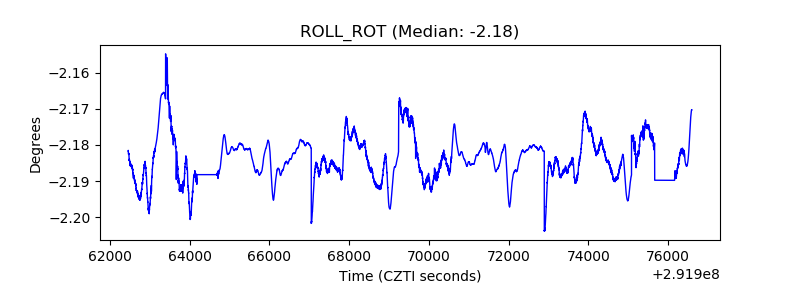

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
