| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T05_9000002830_19007cztM0_level2.evt | modeM0/AS1A06_003T05_9000002830_19007cztM0_level2_quad_clean.evt |
| Size (bytes) | 661,170,240 | 67,265,280 |
| Size | 630.5 MB | 64.1 MB |
| Events in quadrant A | 6,050,639 | 383,967 |
| Events in quadrant B | 3,652,255 | 413,663 |
| Events in quadrant C | 3,316,377 | 393,692 |
| Events in quadrant D | 6,557,853 | 385,405 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22182 | 2 |
| B | 0 | 14703 | 1 |
| C | 0 | 13742 | 1 |
| D | 0 | 23860 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6591 | 1014 | 15.384615% |
| B | 6591 | 166 | 2.518586% |
| C | 6591 | 106 | 1.608254% |
| D | 6592 | 1518 | 23.027913% |

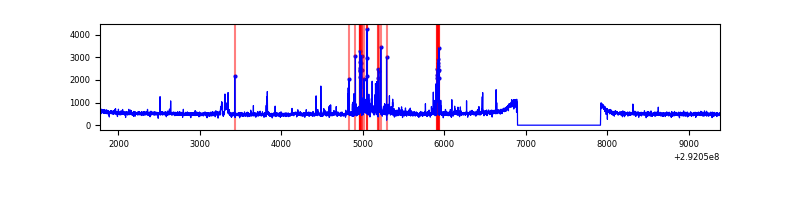

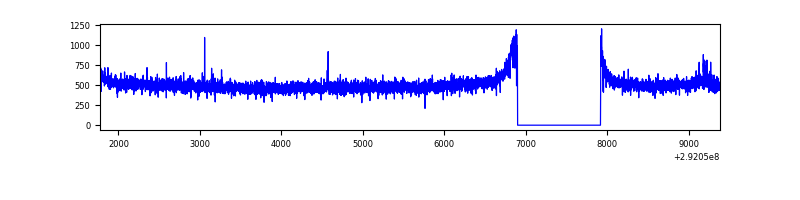

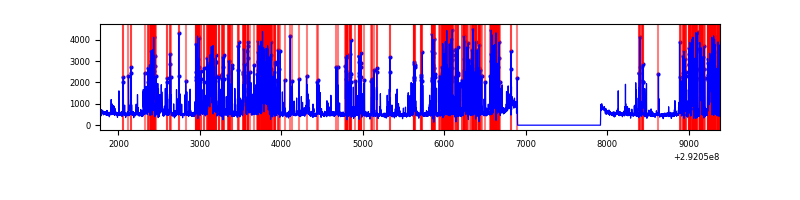

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7611 | 6592 | 654 | 654 | 8.59% | 9.92% |  |
| B | 7611 | 6592 | 32 | 32 | 0.42% | 0.49% |  |
| C | 7611 | 6592 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7612 | 6593 | 1209 | 1209 | 15.88% | 18.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 2951252 | 18434.68 | 796 | 781 | 160.1 |
| A | 9 | 143 | 22461 | 135.46 | 796 | 781 | 160.1 |
| A | 0 | 13 | 7223 | 40.25 | 796 | 781 | 160.1 |
| B | 7 | 220 | 190708 | 1177.78 | 845 | 825 | 161.2 |
| B | 3 | 112 | 31649 | 191.19 | 845 | 825 | 161.2 |
| B | 4 | 216 | 31582 | 190.77 | 845 | 825 | 161.2 |
| C | 14 | 238 | 126562 | 665.63 | 804 | 810 | 188.9 |
| C | 3 | 233 | 46100 | 239.73 | 804 | 810 | 188.9 |
| C | 13 | 61 | 5740 | 26.1 | 804 | 810 | 188.9 |
| D | 2 | 233 | 3455411 | 20340.58 | 695 | 676 | 169.8 |
| D | 7 | 238 | 312890 | 1838.23 | 695 | 676 | 169.8 |
| D | 1 | 52 | 148304 | 869.2 | 695 | 676 | 169.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

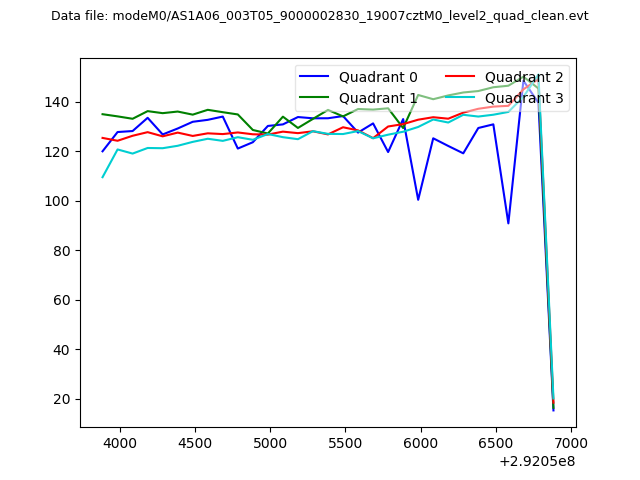

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

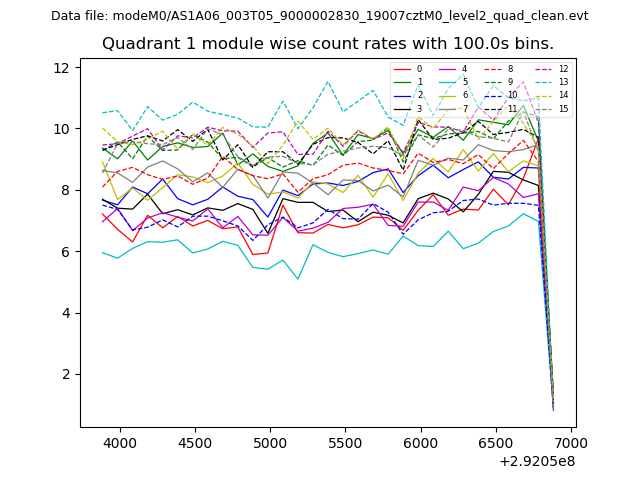

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

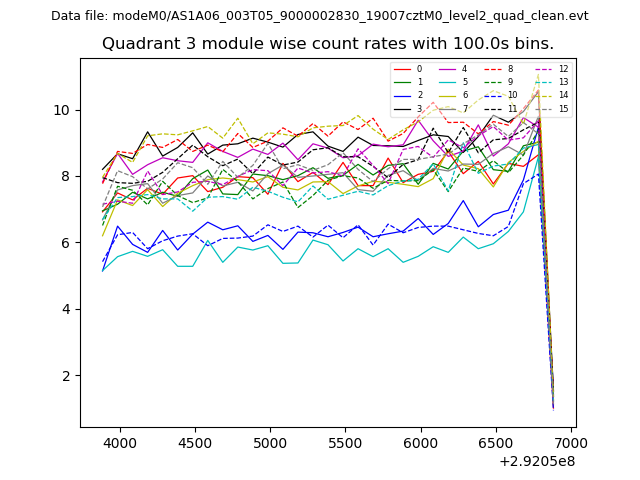

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

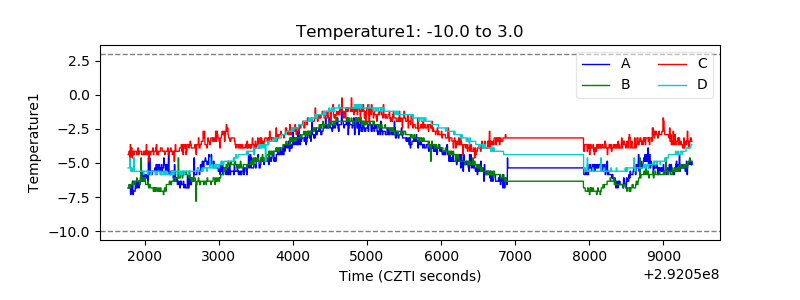

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

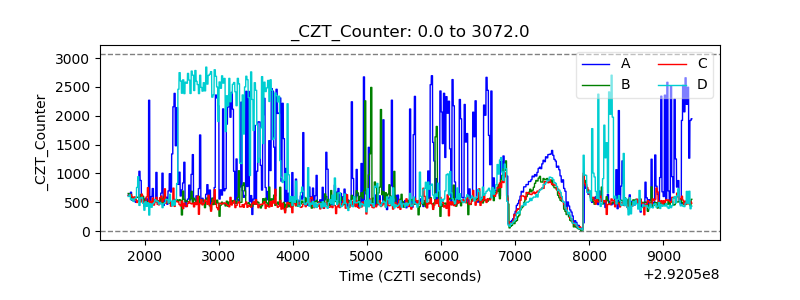

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
