| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T05_9000002830_19014cztM0_level2.evt | modeM0/AS1A06_003T05_9000002830_19014cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,353,280 | 90,676,800 |
| Size | 503.9 MB | 86.5 MB |
| Events in quadrant A | 3,867,373 | 579,303 |
| Events in quadrant B | 3,527,583 | 590,084 |
| Events in quadrant C | 3,455,620 | 562,510 |
| Events in quadrant D | 4,692,309 | 543,094 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16015 | 2 |
| B | 0 | 14946 | 2 |
| C | 0 | 14532 | 2 |
| D | 0 | 18425 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6759 | 227 | 3.358485% |
| B | 6758 | 82 | 1.213377% |
| C | 6758 | 119 | 1.760876% |
| D | 6758 | 329 | 4.868304% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 6760 | 122 | 122 | 1.59% | 1.80% |  |
| B | 7668 | 6759 | 18 | 18 | 0.23% | 0.27% |  |
| C | 7668 | 6759 | 13 | 13 | 0.17% | 0.19% |  |
| D | 7668 | 6759 | 208 | 208 | 2.71% | 3.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 742381 | 4534.2 | 807 | 790 | 163.6 |
| A | 8 | 192 | 7610 | 41.7 | 807 | 790 | 163.6 |
| A | 0 | 226 | 7010 | 38.03 | 807 | 790 | 163.6 |
| B | 7 | 220 | 168025 | 1081.61 | 811 | 791 | 154.6 |
| B | 0 | 189 | 86019 | 551.22 | 811 | 791 | 154.6 |
| B | 3 | 112 | 43029 | 273.18 | 811 | 791 | 154.6 |
| C | 3 | 233 | 145083 | 784.73 | 781 | 785 | 183.9 |
| C | 5 | 112 | 139165 | 752.55 | 781 | 785 | 183.9 |
| C | 14 | 238 | 120615 | 651.67 | 781 | 785 | 183.9 |
| D | 7 | 238 | 1313793 | 6870.16 | 784 | 760 | 191.1 |
| D | 1 | 52 | 384356 | 2007.08 | 784 | 760 | 191.1 |
| D | 2 | 234 | 28452 | 144.89 | 784 | 760 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

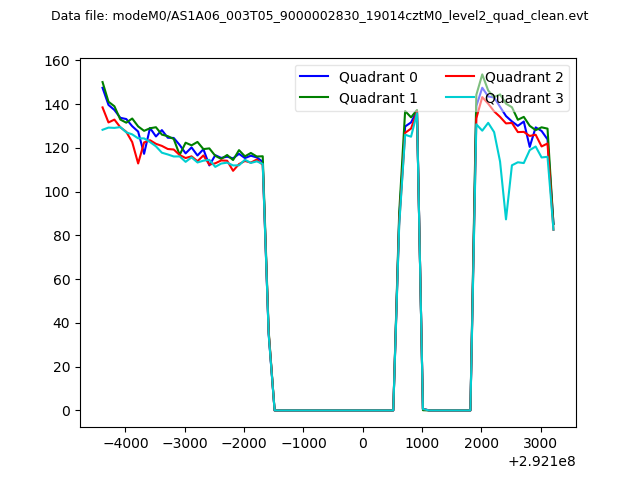

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

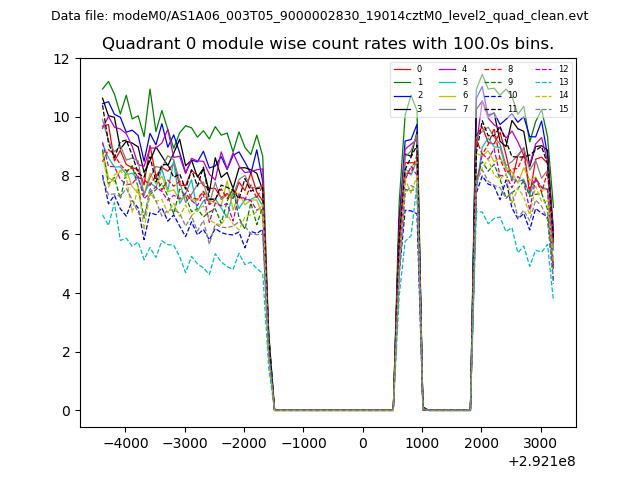

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

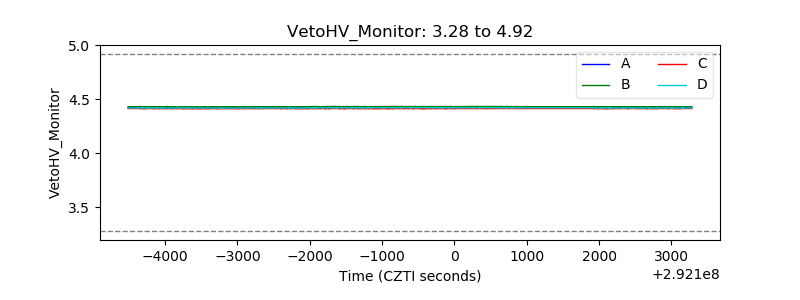

| Veto HV Monitor |  |

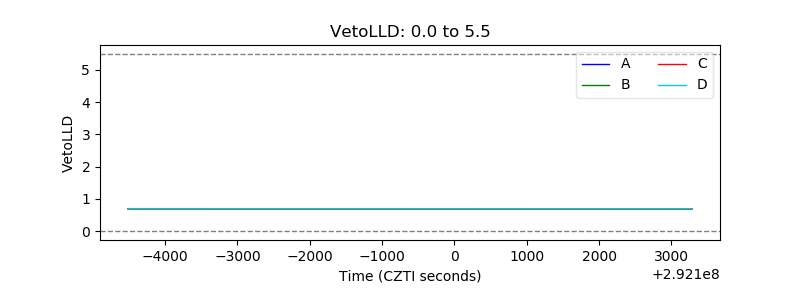

| Veto LLD |  |

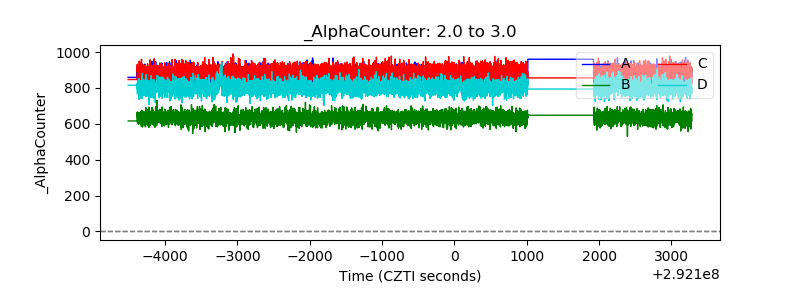

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

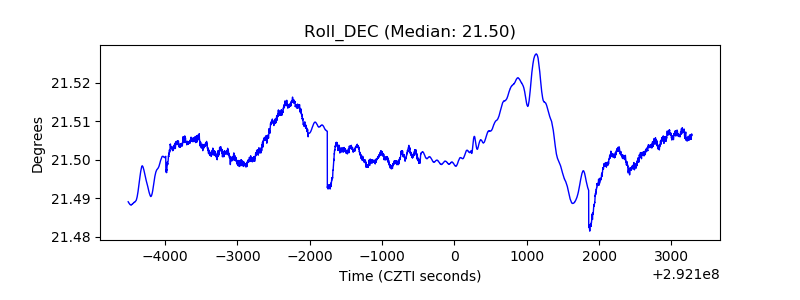

| _Roll_DEC |  |

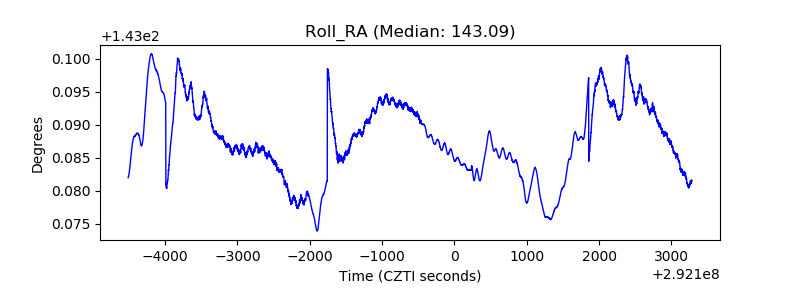

| _Roll_RA |  |

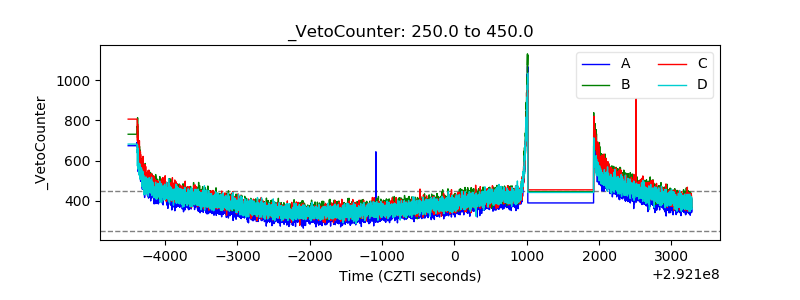

| Veto Counter |  |
