| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T05_9000002830_19023cztM0_level2.evt | modeM0/AS1A06_003T05_9000002830_19023cztM0_level2_quad_clean.evt |
| Size (bytes) | 629,521,920 | 92,848,320 |
| Size | 600.4 MB | 88.5 MB |
| Events in quadrant A | 4,333,274 | 573,156 |
| Events in quadrant B | 4,538,584 | 577,664 |
| Events in quadrant C | 4,503,474 | 553,172 |
| Events in quadrant D | 5,135,160 | 539,280 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18122 | 2 |
| B | 0 | 18518 | 2 |
| C | 0 | 18278 | 2 |
| D | 0 | 20719 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8182 | 430 | 5.255439% |
| B | 8183 | 446 | 5.450324% |
| C | 8183 | 391 | 4.778199% |
| D | 8183 | 366 | 4.472687% |

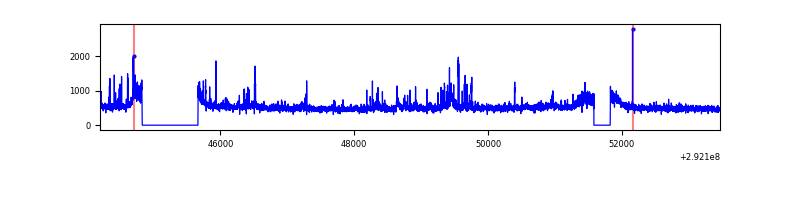

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9262 | 8184 | 54 | 54 | 0.58% | 0.66% |  |
| B | 9263 | 8185 | 43 | 43 | 0.46% | 0.53% |  |
| C | 9263 | 8185 | 2 | 2 | 0.02% | 0.02% |  |
| D | 9263 | 8185 | 78 | 78 | 0.84% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 336630 | 1607.33 | 1028 | 1002 | 208.8 |
| A | 9 | 143 | 34586 | 160.83 | 1028 | 1002 | 208.8 |
| A | 0 | 226 | 8900 | 37.82 | 1028 | 1002 | 208.8 |
| B | 7 | 220 | 221094 | 1099.63 | 1026 | 998 | 200.2 |
| B | 3 | 112 | 146324 | 726.07 | 1026 | 998 | 200.2 |
| B | 0 | 189 | 116545 | 577.29 | 1026 | 998 | 200.2 |
| C | 3 | 233 | 497105 | 2140.12 | 985 | 990 | 231.8 |
| C | 14 | 238 | 150086 | 643.16 | 985 | 990 | 231.8 |
| C | 13 | 61 | 7128 | 26.48 | 985 | 990 | 231.8 |
| D | 7 | 238 | 876327 | 3544.19 | 1003 | 971 | 247.0 |
| D | 1 | 52 | 450091 | 1818.42 | 1003 | 971 | 247.0 |
| D | 2 | 234 | 33448 | 131.49 | 1003 | 971 | 247.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

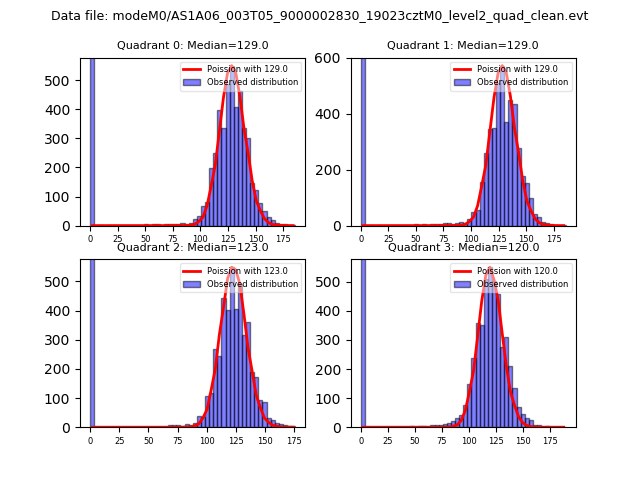

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

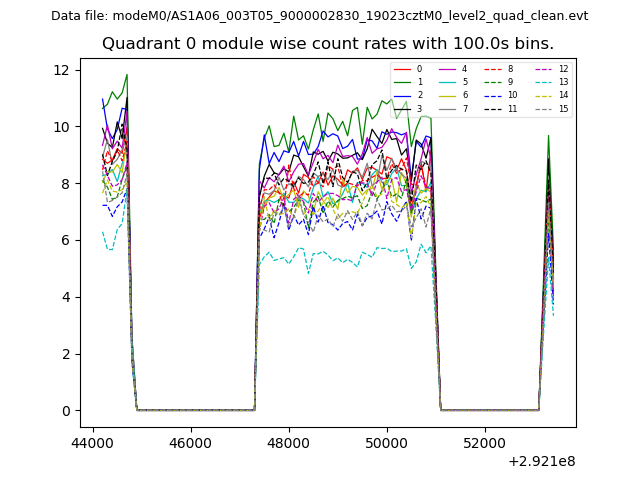

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

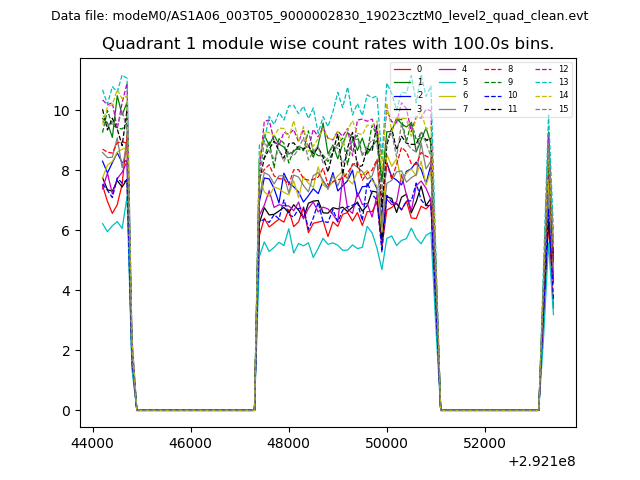

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

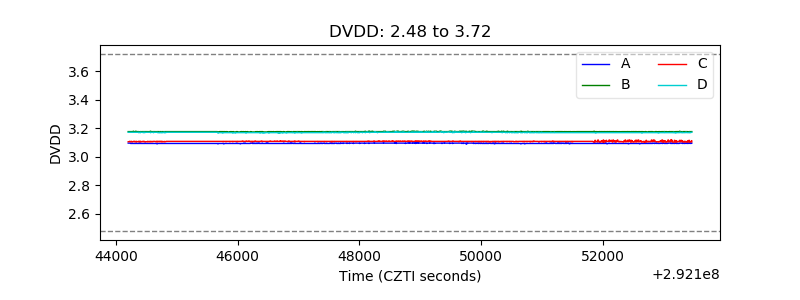

| D_VDD |  |
| Temperature 1 |  |

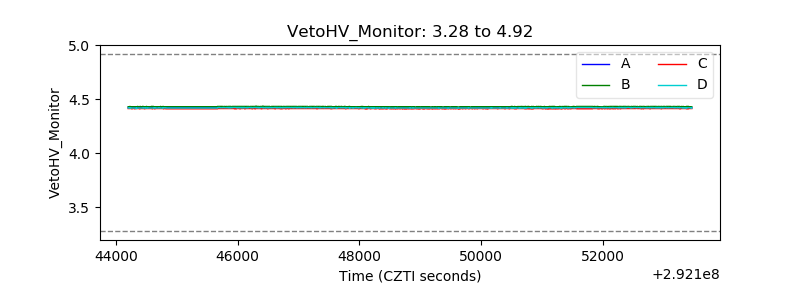

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

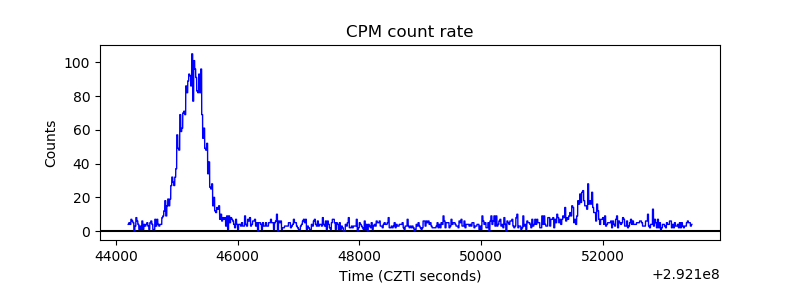

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

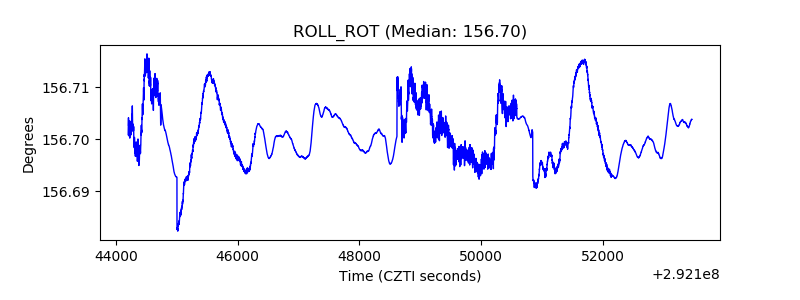

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
